CM210
CM210
OrderableCrossarm-to-Pole Mounting Kit
Pricing
- Model:
- CM210
- Item Number:
- 17767
- Warranty:
- 1 year
- Compliance:
- attaches horizontal pipe to vertical pipe
Overview
The CM210 is a mounting kit that is used to attach a crossarm to an instrument tripod or tower. One CM210 is included with a CM202, CM203, CM204, or CM206 crossarm. The CM210 is designed to accommodate crossarms of varying sizes.
Technical Description
One CM210 is included with our CM202, CM204, and CM206 crossarms. In these applications, the CM210 secures the crossarm to a tripod or tower. If a CM204 or CM206 will be attached to a tower, a second CM210 can be purchased to secure the crossarm to two of the tower legs. The CM210 can also be ordered to attach a user-supplied pipe (3/4" to 1" IPS; 1.0" to 1.5" OD) to a mast or tower leg (1.0" to 2.1" OD).

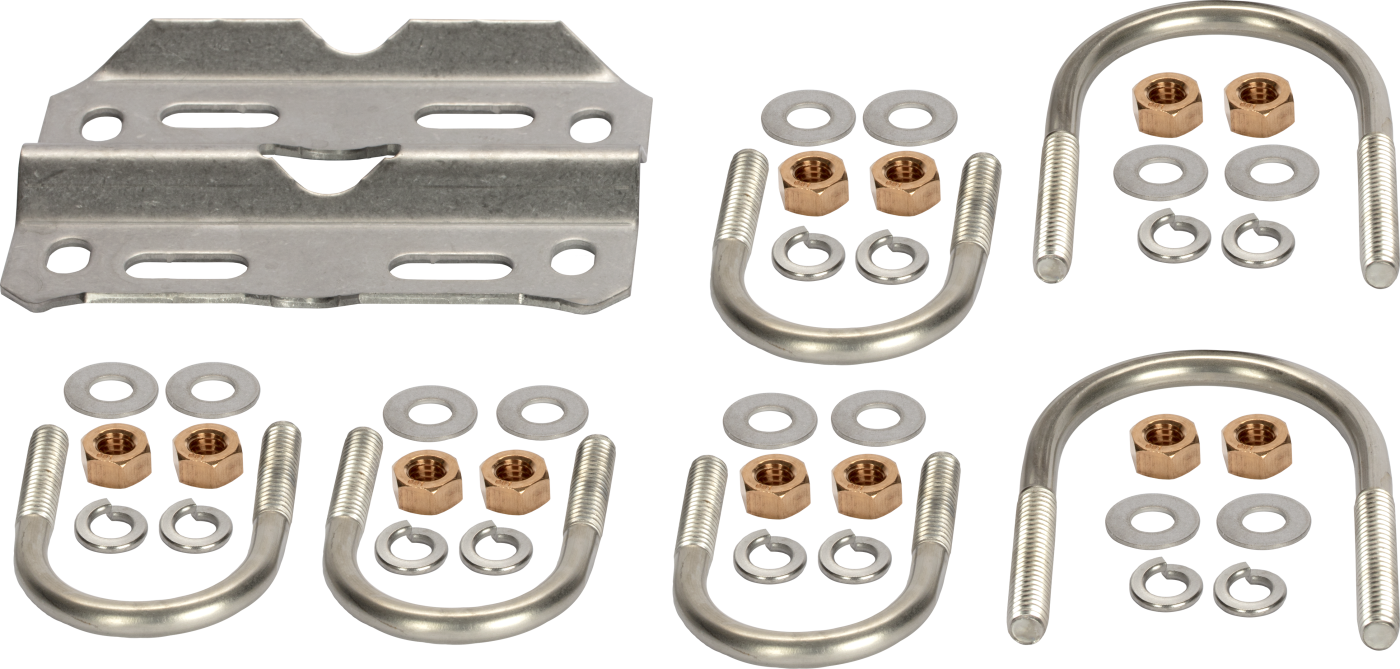

The CM210 Mounting Kit consists of a squarish bracket, U-bolts, lock washers, and nuts. The bracket is creased to allow pipes of varying diameters to seat snugly into the bracket.
Specifications
- Mounting Material
- 304 stainless-steel bracket with stainless-steel U-bolts and hardware
- U-bolts
- Two 5.4 cm
(2.125 in.)
- U-bolts
- Four 3.81 cm
(1.5 in.)
- Dimensions
- 10.2 x 12.07 x 0.64 cm
(4 x 4.75 x 0.25 in.)
- Weight
- 0.66 kg
(1.45 lb)
