NR-LITE2
NR-LITE2
OrderableConfigurableNet Radiometer
Lowest cost.
Pricing
Configuration
Sign in for option pricing- w/5m (17ft) per Sensor -PF w/Ferrules on Wiresw/5m
- w/15m (50ft) per Sensor -PF w/Ferrules on Wiresw/15m
- w/30m (100ft) per Sensor -PF w/Ferrules on Wiresw/30m
- w/60m (200ft) per Sensor -PF w/Ferrules on Wiresw/60m
- w/o Cable-NC
Select a configuration to add to your quote
- Model:
- NR-LITE2
- Item Number:
- 45289
- Warranty:
- 2 years
- Lead time:
- 14 days
- Compliance:
- requires 26120
Overview
The NR-LITE2, manufactured by Kipp & Zonen and cabled for use with Campbell Scientific data loggers, is a rugged net radiometer that measures the energy balance between incoming short-wave and long-wave infrared radiation relative to surface-reflected short-wave and outgoing long-wave infrared radiation. It is directly connected to a Campbell Scientific data logger and is widely used in agriculture and hydrology applications.
Key Advantages
PTFE-coated absorbers instead of fragile dome
Technical Description

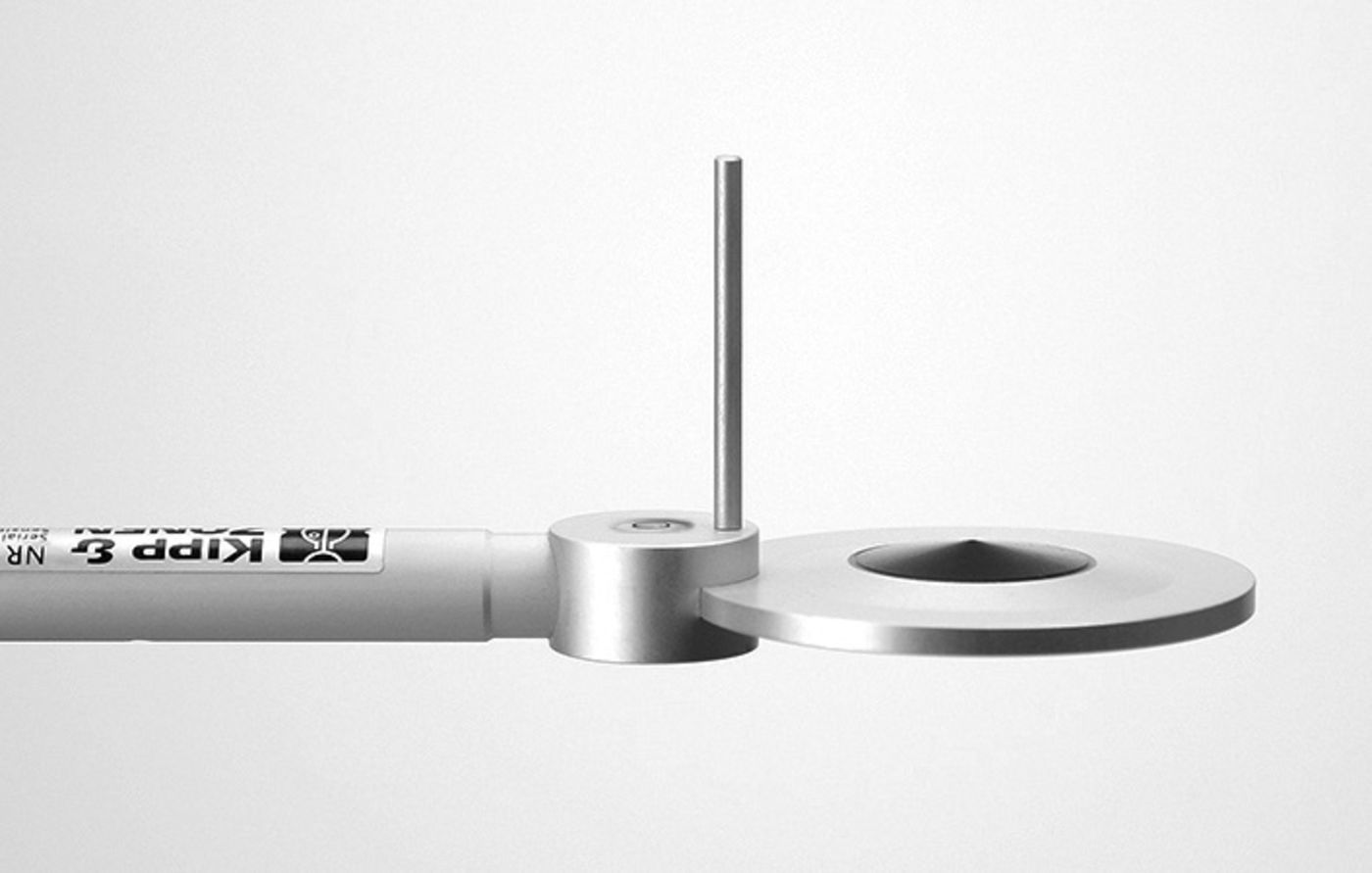

The NR-LITE2 includes two black conical absorbers—one facing upward and the other facing downward. The absorbers are coated in PTFE, making them resistant to weather without using a fragile plastic dome. Both absorbers are calibrated to an identical sensitivity coefficient.
The NR-LITE2 has a bubble level to ensure proper installation and a rod that deters birds from roosting on the sensor. It produces a millivolt signal that is measured directly by a Campbell Scientific data logger.
Benefits
- Compatible with most Campbell Scientific data loggers
- Integrated bubble level ensures proper installation
- Includes rod that deters birds from roosting on the radiometer
- PTFE-coated absorbers are weather resistant without using a fragile plastic dome
Specifications
- Sensor
- Two black conical absorbers—one facing upward and the other facing downward
- Measurement Description
- Measures incoming and outgoing short-wave and long-wave radiation
- Spectral Range
- 0.2 to 100 µm
- Response Time
- < 20 s
(nominal)
- Sensitivity
- 10 µV W-1 m2
(nominal)
- Output Range
- ±25 mV
- Measurement Range
- ±2000 W m-2
- Operating Temperature Range
- -40° to +80°C
- Sensor Diameter
- 8.0 cm
(3.1 in.)
- Support Arm Diameter
- 1.6 cm
(0.6 in.)
- Support Arm Length
- 80 cm
(31.5 in.)
- Sensor Weight
- 200 g
(7.0 oz)
- Support Arm Weight
- 635 g
(23 oz)
