26120
26120
OrderableNet Radiation Sensor Mounting Kit
Pricing
Pricing temporarily unavailable.
- Model:
- 26120
- Item Number:
- 26120
- Warranty:
- 1 year
Overview

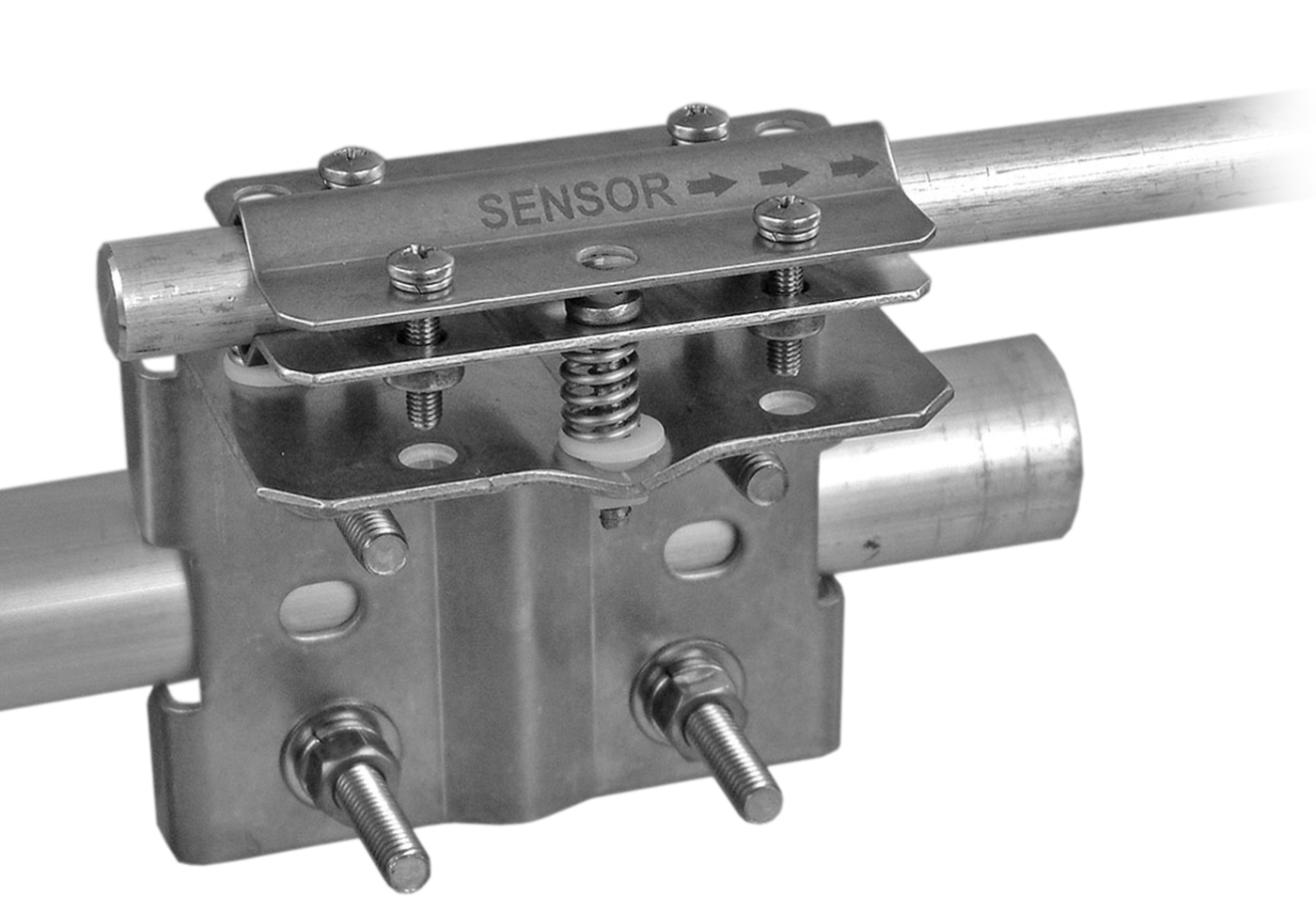

Campbell Scientific created an improved mounting kit for the net radiometers we offer. The kit, part number 26120, replaces mounting kit numbers 19455 and 14264. It performs better in dry or salty environments, and it is designed to work in some configurations where the previous models did not. The 26120 is a more universal mounting kit that can be used with the NR-LITE, CNR2, or CNR4.
Key Advantages
Technical Description
The 26120 uses screws to level the sensor.
To avoid shading effects and to promote spatial averaging, net radiation sensors should be mounted at least 1.5 m above the ground. Campbell Scientific recommends mounting our net radiation sensors at least 25 ft away from other structures in the monitoring system.
| The 26120 replaced the 19455 CNR2 Mounting Kit on December 23, 2009 and the 14264 NR-LITE Mounting Kit on January 13, 2010. The 26120 is a more universal mounting kit since it can be used with most of our contemporary net radiometers. It also performs better than the 19455 kit in dry or salty environments, and is designed to work in some configurations where the previous models did not. |
Specifications
- Why/When to Use
- Used to mount Campbell Scientific net radiometers.
- Wind
- Withstands winds up to 193.12 kph
(120 mph)
- Weight
- 725.75 g
(1.6 lb)
