255-200
Class A Evaporation Pan
255-200
OrderableClass A Evaporation Pan

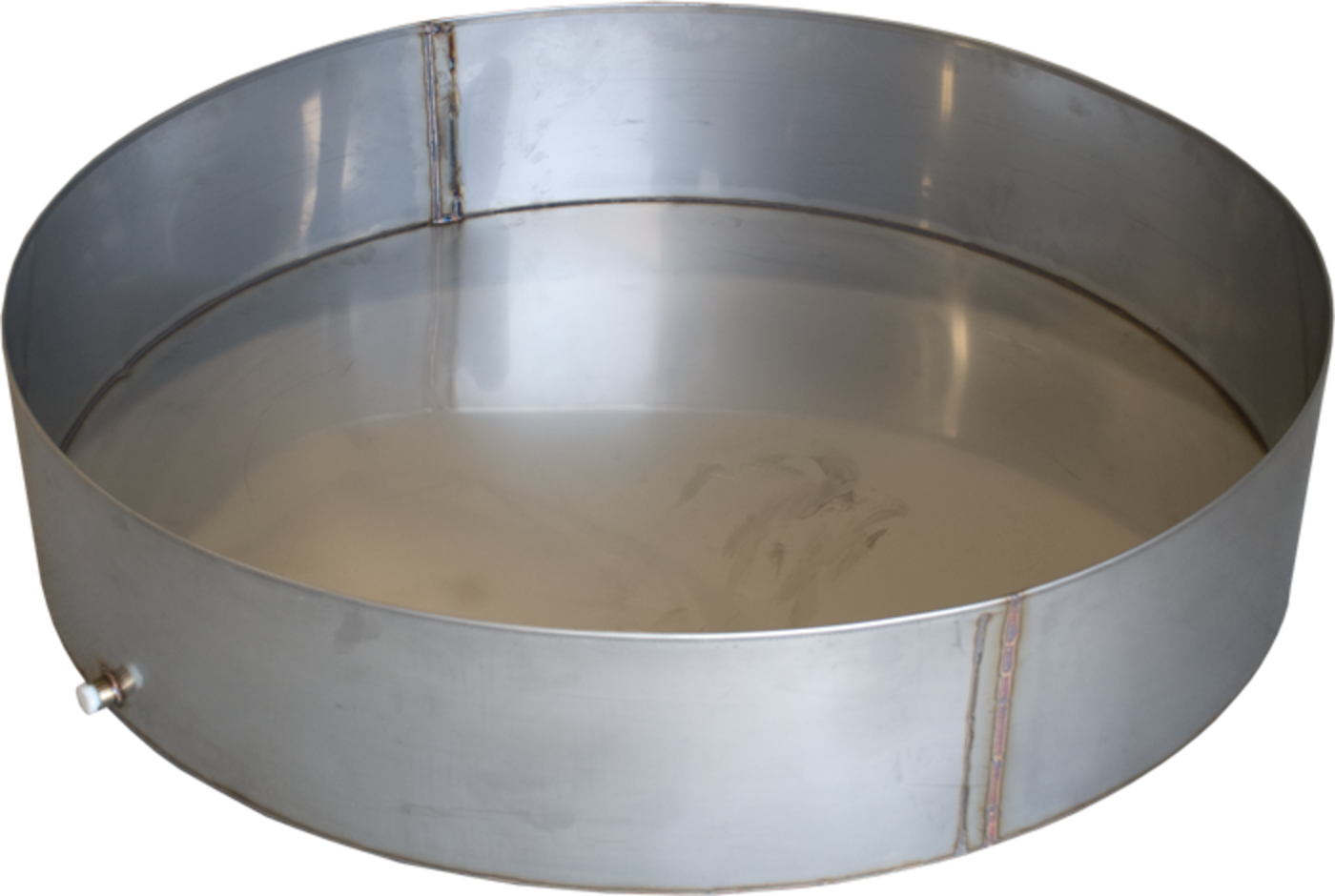

Stainless-steel Class A evaporation pan.
Overview
255-200 Novalynx Class A Evaporation Pan
The 255-200 is a standard National Weather Service Class A evaporation pan for the 255-100 Evaporation Gauge. It is manufactured by Novalynx.
Key Advantages
Reliable in Harsh Environments
Technical Description
The 255-200 is constructed out of low-carbon, 18-gauge, type-304 stainless steel. The 255-200 is heliarc welded and includes a 1/2-in. drain plug and NPT female coupling. The pan holds approximately 77 gallons of water (i.e., adding 7.7 gallons will raise water level in pan by 1-in).
Specifications
- Material
- Low carbon stainless steel, type 304, 18 gauge
- Construction
- Heliarc welded, 1/2-in. drain plug NPT female coupling
- Volume
- ~291 L
(~77 gal)
Adding 29.15 L (7.7 gal) will raise water level in pan by 2.54 cm (1 in.). - Inside Diameter
- 120.6 cm
(47.5 in.)
- Inside Depth
- 25 cm
(10 in.)
- Wall Thickness
- 0.119 cm
(0.047 in.)
- Weight
- 22 kg
(48 lb)
