255-620A
Automatic Refill Kit for Evaporation Pan
255-620A
OrderableAutomatic Refill Kit for Evaporation Pan
Overview
255-620A Novalynx Automatic Refill Kit for Evaporation Pan (0 to +50C)
The 255-620A, manufactured by Novalynx, is an automatic refill system that allows an evaporation pan to be refilled at specified times. The 255-620A is typically used with the 255-100 evaporation gauge and the 255-200 evaporation pan.

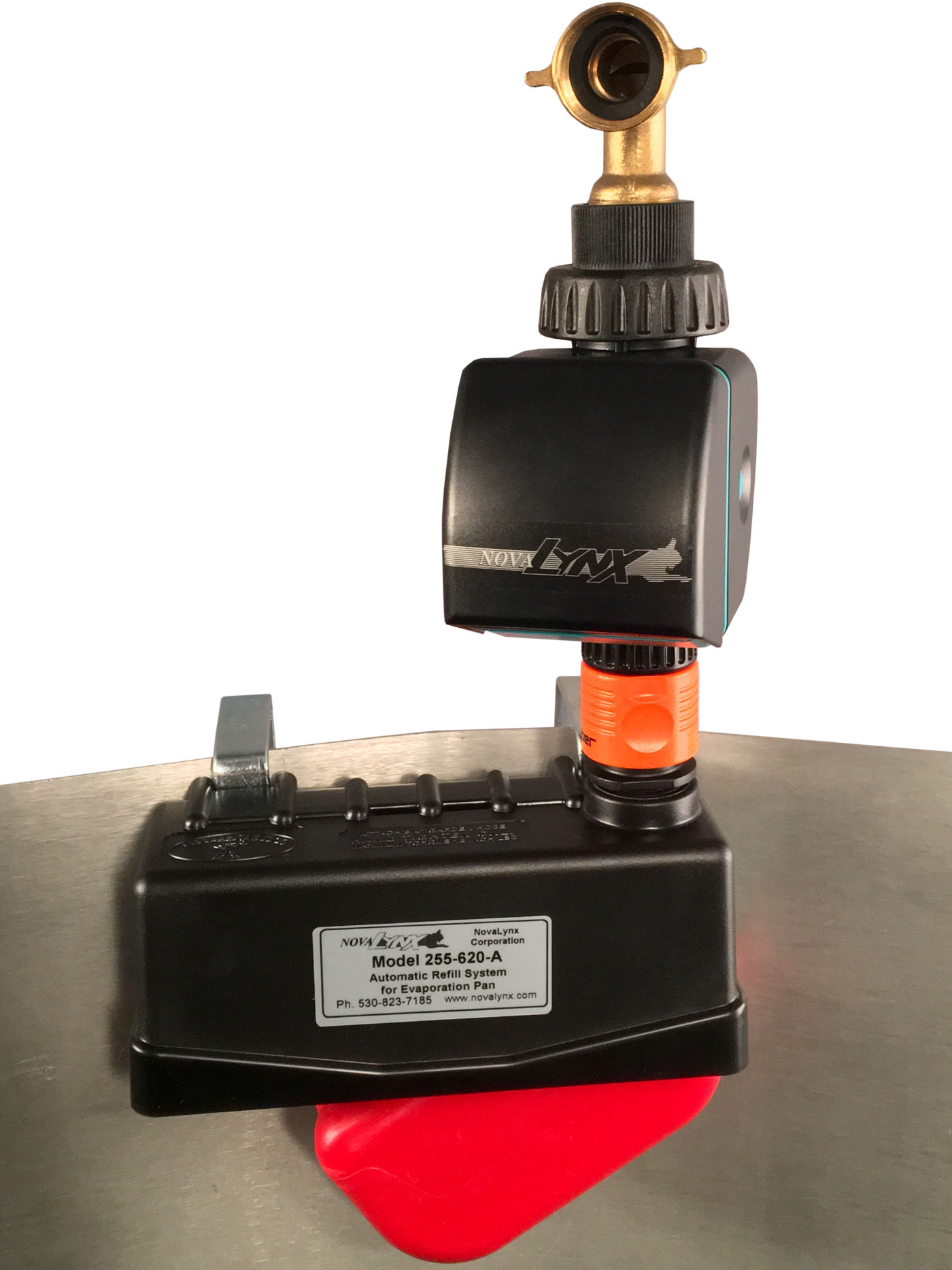

Note: In the image, the kit is shown mounted.
Key Advantages
Reliable in Harsh Environments
Technical Description
The 255-620A consists of an electronic water timer and a float valve. The water timer switches on at a user-specified time—allowing water from an external water source to flow into the pan. The float valve stops the water flow at an approximate depth of 8.5" to 9.5", depending upon the water pressure.
Specifications
- Power
- Two alkaline AAA batteries
- Operating Temperature Range
- 0° to 50°C
- Operating Humidity
- 0 to 100%
- Housing Material
- Aluminum and plastic
(waterproof)
- Water Connection
- Standard garden hose fitting
- Dimensions
- 20 x 15 x 10 cm
(8 x 6 x 4 in.)
- Weight
- 1.8 kg
(4 lb)
