MetSens600

Compact Weather Sensor for Temperature, RH, Barometric Pressure, Wind, and Rainfall Indication with Compass
MetSens600

MetSens600

RetiredConfigurable

Compact Weather Sensor for Temperature, RH, Barometric Pressure, Wind, and Rainfall Indication with Compass

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
MetSens600
Item Number:
34015
Warranty:
2 years
Lead time:
14 days
Compliance:
requires 17387 or 34344

Overview

MetSENS600 Compact Weather Sensor w/Temperature, RH, Barometric Pressure, Wind, Compass, & Precipitation Connector

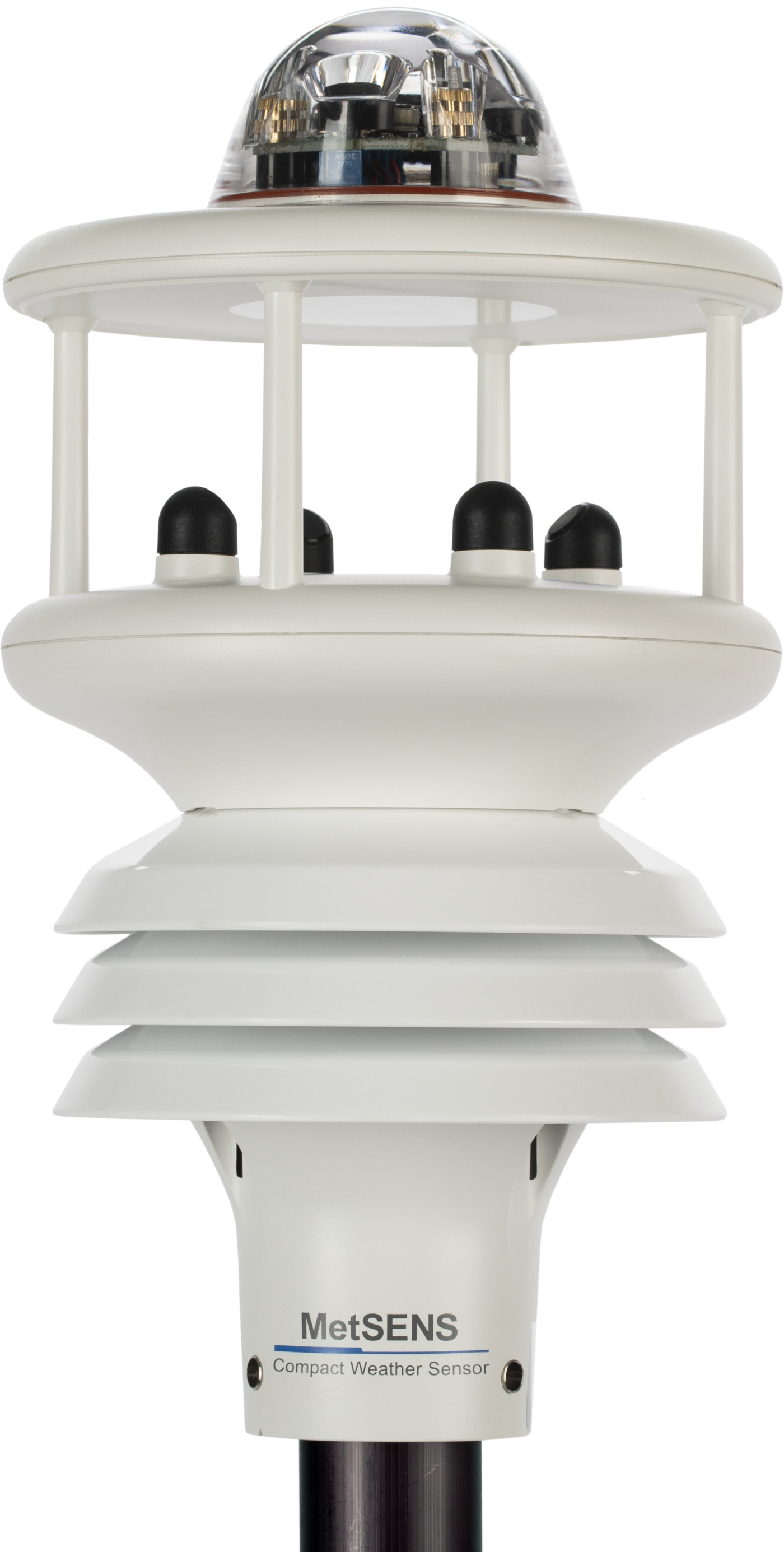

The MetSens600 compact weather sensor measures wind speed and direction via an ultrasonic sensor, as well as air temperature, relative humidity, and barometric pressure, in a single, combined instrument mounted inside three double-louvered, naturally aspirated radiation shields with no moving parts. An optical precipitation sensing element senses fine amounts of water. An integrated electronic compass allows the MetSens600 to provide accurate, relative wind direction measurements without being oriented in a particular way, making installation easier. WMO average wind speed and direction and gust, temperature, relative humidity, barometric pressure, absolute humidity, air density, wet bulb temperature, rainfall total, and rainfall intensity data are provided. The MetSens600 is compatible and easily integrated with the MeteoPV Solar Resource Platform and any Campbell Scientific data logger using SDI-12, RS-485, ModbusRS-485, or NMEA RS-232.

Key Advantages

Measures 6 Common Meteorological Parameters
IEC 61724-1 Compliant

Benefits

  • Quality measurements
  • Fast and simple to install
  • Compact, integrated design
  • Lightweight and robust

Specifications

Measurements Made
Air temperature, barometric pressure, precipitation, relative humidity, wind direction, and wind speed.
Sampling Rate
1 Hz
Digital Communication Modes
Serial RS-232, RS-485, SDI-12, NMEA, Modbus, ASCII
IP Rating
66
Compliance
CE, RoHS
Compliance
Where applicable, all individual parameters meet or exceed specifications of IEC 61724-1 (2017, 2021).
Operating Temperature Range
-40° to +70°C
Operating Voltage
5 to 30 Vdc
Typical Current Drain @ 12 Vdc
25 mA

(continuous high mode)

Typical Current Drain @ 12 Vdc
0.7 mA

(eco-power mode; 1 hour polled)

Weight
0.8 kg

(1.8 lb)

Air Temperature Measurement

Measurement Range
-40° to +70°C
Resolution
0.1°C
Accuracy
±0.3°C

(@ 20°C)

Relative Humidity Measurement

Measurement Range
0 to 100%
Resolution
0.1
Accuracy
±2% @ 20°C

(10 to 90% RH)

Barometric Pressure Measurement

Measurement Range
300 to 1100 hPa
Resolution
0.1 hPa
Accuracy
±0.5 hPa

(@ 25°C)

Wind Speed Measurement

Measurement Range
0.01 to 60 m s-1
Accuracy
±3%

(up to 40 m s-1)

Accuracy
±5%

(up to 60 m s-1)

Resolution
0.01 m s-1
Starting Threshold
0.01 m s-1

Wind Direction Measurement

Measurement Range
0° to 359°
Accuracy
±3°

(up to 40 m s-1)

Accuracy
±5°

(for 40 to 60 m s-1)

Resolution
1°

Precipitation Measurement

Measurement Type
Optical
Measurement Range
0 to > 300 mm h-1
Precipitation Resolution
0.08 mm
Repeatability
3%

Compass

Measurement Range
0 to 359°
Resolution
1°
Units of Measure
Degrees
Accuracy
±3°
