MetSens550

Name: MetSens550
Brand: Campbell Scientific
SKU: MetSENS550
Availability: InStock

Compact Weather Sensor for Temperature, RH, Barometric Pressure, and Wind with Precipitation Connector and Compass

MetSens550

OrderableConfigurable

Compact Weather Sensor for Temperature, RH, Barometric Pressure, and Wind with Precipitation Connector and Compass

Pricing

Configuration

RS-232 Digital OutputCompact
RS-485 Modbus OutputCompact
Compact Weather Sensor w/Temperature, RH, Barometric Pressure, Wind, Compass, & A Precipitation Connector - SDI-12 Digital OutputCompact

Qty

Select a configuration to add to your quote

Model:: MetSens550
Item Number:: MetSENS550
Warranty:: 2 years
Lead time:: 14 days
Compliance:: requires 17387 or 34344

Overview

Compact Weather Sensor for Temperature, RH, Barometric Pressure, and Wind with Precipitation Connector and Compass

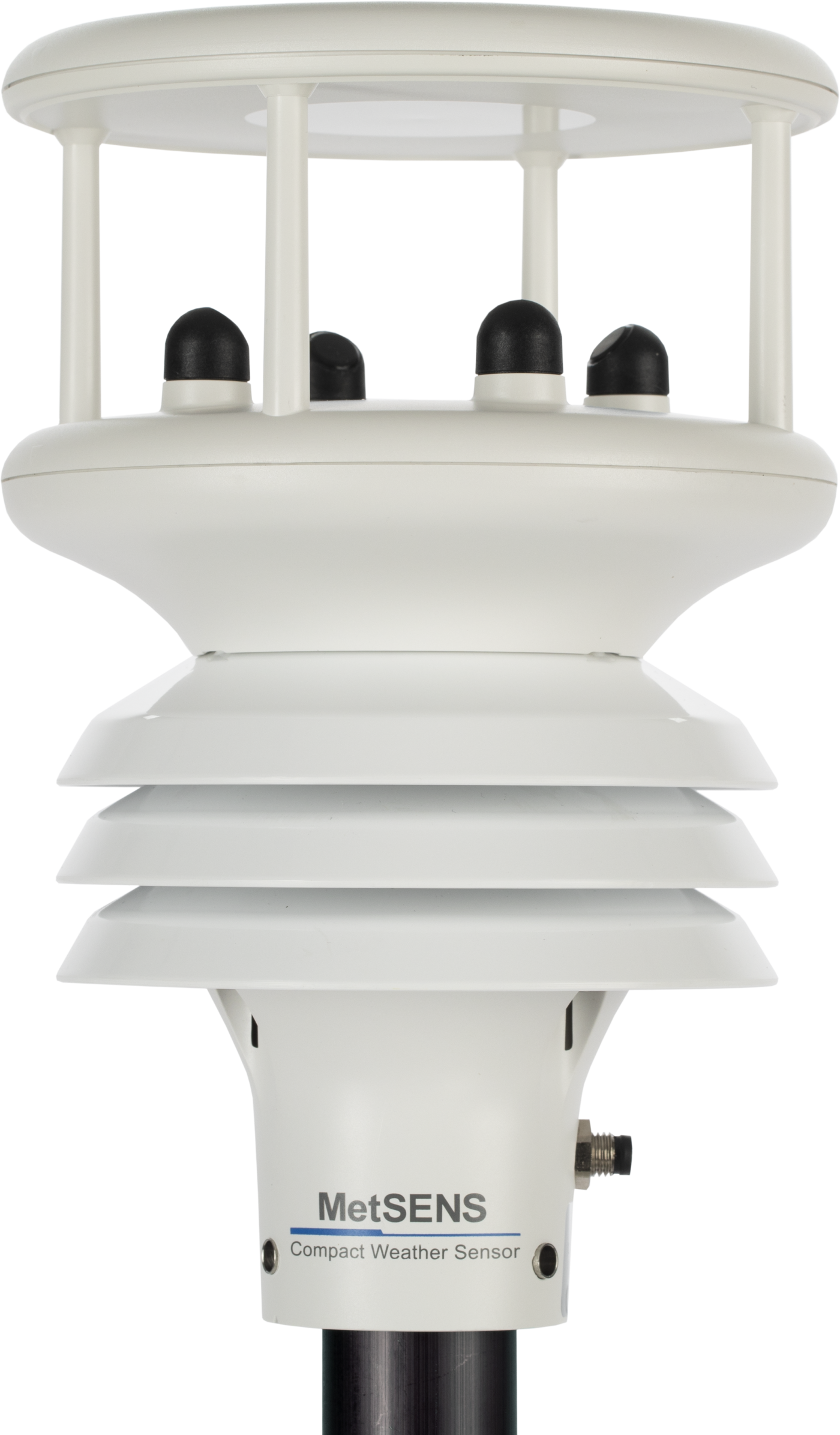

The MetSens550 compact weather sensor measures wind speed and direction via an ultrasonic sensor, as well as air temperature, relative humidity, and barometric pressure, in a single, combined instrument mounted inside three double-louvered, naturally aspirated radiation shields with no moving parts. An integrated side connector allows users to connect a tipping bucket rain gauge. An integrated electronic compass allows the MetSens550 to provide accurate, relative wind direction measurements without being oriented in a particular way, making installation easier. WMO average wind speed and direction and gust, temperature, relative humidity, barometric pressure, absolute humidity, air density, wet bulb temperature, rainfall total, and rainfall intensity data are provided. The MetSens550 is compatible and easily integrated with the MeteoPV Solar Resource Platform and any Campbell Scientific data logger using SDI-12, RS-485, ModbusRS-485, or NMEA RS-232.

Key Advantages

Measures 5 Common Meteorological Parameters
IEC 61724-1 Compliant

Benefits

Quality measurements
Fast and simple to install
Compact, integrated design
Lightweight and robust

Specifications

Measurements Made: Air temperature, barometric pressure, relative humidity, wind direction, and wind speed.
(An integrated side connector allows users to connect a tipping bucket rain gauge.)
Sampling Rate: 1 Hz
Digital Communication Modes: Serial RS-232, RS-485, SDI-12, NMEA, Modbus, ASCII
IP Rating: 66
Compliance: CE, RoHS
Compliance: Where applicable, all individual parameters meet or exceed specifications of IEC 61724-1 (2017, 2021).
Operating Temperature Range: -40° to +70°C
Operating Voltage: 5 to 30 Vdc
Typical Current Drain @ 12 Vdc: 25 mA
(continuous high mode)
Typical Current Drain @ 12 Vdc: 0.7 mA
(eco-power mode; 1 hour polled)
Weight: 0.7 kg
(1.5 lb)

Air Temperature Measurement

Measurement Range: -40° to +70°C
Resolution: 0.1°C
Accuracy: ±0.3°C
(@ 20°C)

Relative Humidity Measurement

Measurement Range: 0 to 100%
Resolution: 0.1
Accuracy: ±2% @ 20°C
(10 to 90% RH)

Barometric Pressure Measurement

Measurement Range: 300 to 1100 hPa
Resolution: 0.1 hPa
Accuracy: ±0.5 hPa
(@ 25°C)

Wind Speed Measurement

Measurement Range: 0.01 to 60 m s^-1
Accuracy: ±3%
(up to 40 m s^-1)
Accuracy: ±5%
(up to 60 m s^-1)
Resolution: 0.01 m s^-1
Starting Threshold: 0.01 m s^-1

Wind Direction Measurement

Measurement Range: 0° to 359°
Accuracy: ±3°
(up to 60 m s^-1)
Resolution: 1°

Precipitation Input

Measurement Input Type: Triggering
Range: 0 to 1000 mm h ^-1
Precipitation Resolution: From 0.01 mm
Input to MetSens550: Contact closure via an M8 male, 4-pin connector.
(User-supplied 20 m cable or mating female connector required.)
