MetSens300

Compact Weather Sensor for Temperature, RH, and Barometric Pressure
MetSens300

MetSens300

OrderableConfigurable

Compact Weather Sensor for Temperature, RH, and Barometric Pressure

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
MetSens300
Item Number:
MetSENS300
Warranty:
2 years
Lead time:
14 days
Compliance:
requires 17387 or 34344

Overview

Compact Weather Sensor for Temperature, RH, and Barometric Pressure

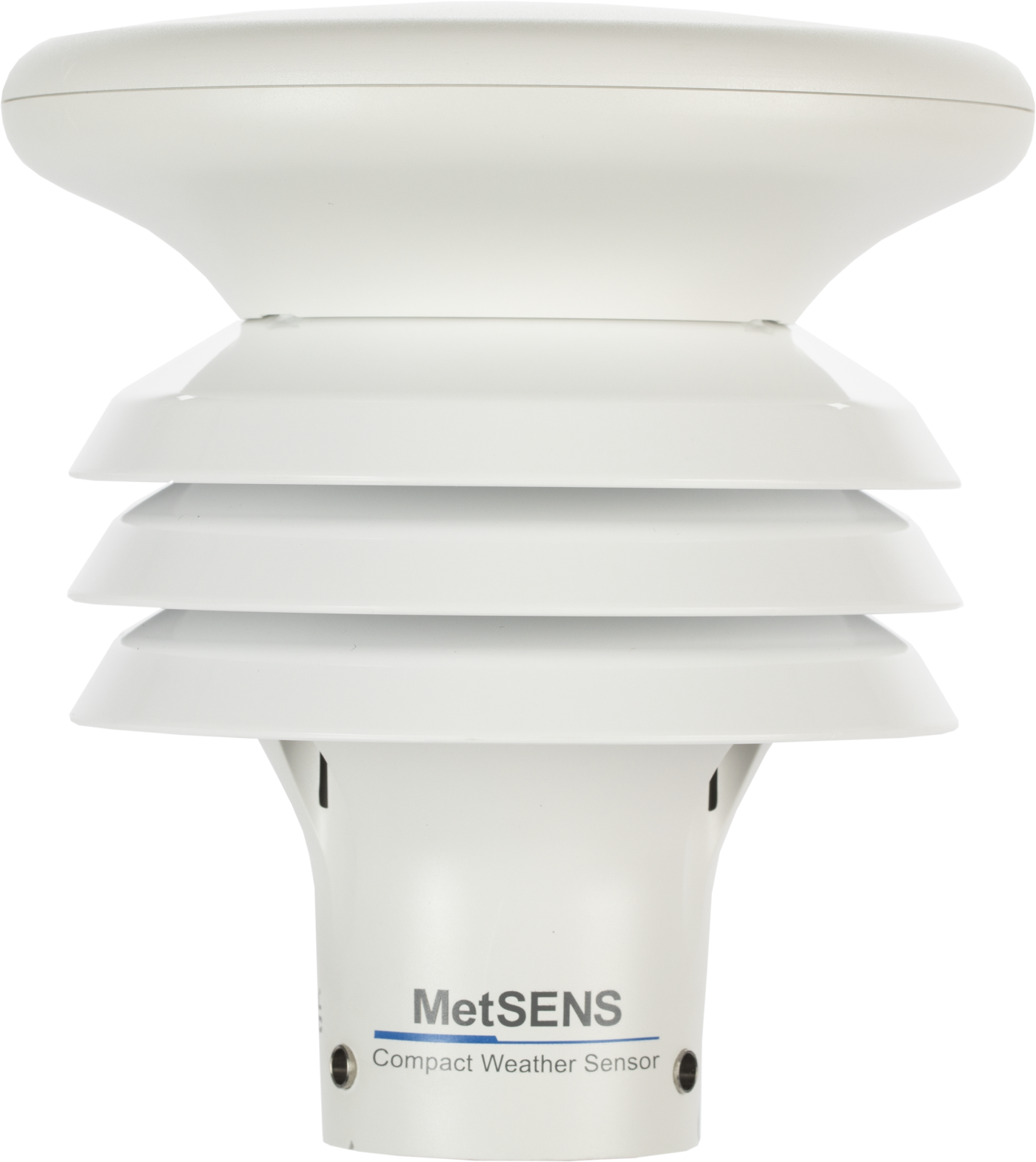

The MetSens300 compact weather sensor measures air temperature, relative humidity, and barometric pressure in a single, combined instrument mounted inside three double-louvered, naturally aspirated radiation shields with no moving parts. Temperature, relative humidity, barometric pressure, absolute humidity, air density, and wet bulb temperature data are provided. The MetSens300 is compatible and easily integrated with the MeteoPV Solar Resource Platform and any Campbell Scientific data logger using SDI-12, RS-485, ModbusRS-485, or NMEA RS-232.

Key Advantages

Measures 3 Common Meteorological Parameters
IEC 61724-1 Compliant

Benefits

  • Quality measurements
  • Fast and simple to install
  • Compact, integrated design
  • Lightweight and robust

Specifications

Measurements Made
Air temperature, barometric pressure, and relative humidity.
Sampling Rate
1 Hz
Digital Communication Modes
Serial RS-232, RS-485, SDI-12, NMEA, Modbus, ASCII
IP Rating
66
Compliance
CE, RoHS
Compliance
Where applicable, all individual parameters meet or exceed specifications of IEC 61724-1 (2017, 2021).
Operating Temperature Range
-40° to +70°C
Operating Voltage
5 to 30 Vdc
Typical Current Drain @ 12 Vdc
25 mA

(continuous high mode)

Typical Current Drain @ 12 Vdc
0.7 mA

(eco-power mode; 1 hour polled)

Weight
0.5 kg

(1.1 lb)

Air Temperature Measurement

Measurement Range
-40° to +70°C
Resolution
0.1°C
Accuracy
±0.3°C

(@ 20°C)

Relative Humidity Measurement

Measurement Range
0 to 100%
Resolution
0.1
Accuracy
±2% @ 20°C

(10 to 90% RH)

Barometric Pressure Measurement

Measurement Range
300 to 1100 hPa
Resolution
0.1 hPa
Accuracy
±0.5 hPa

(@ 25°C)

Ships With

(1)
  • Test Report Sheet
