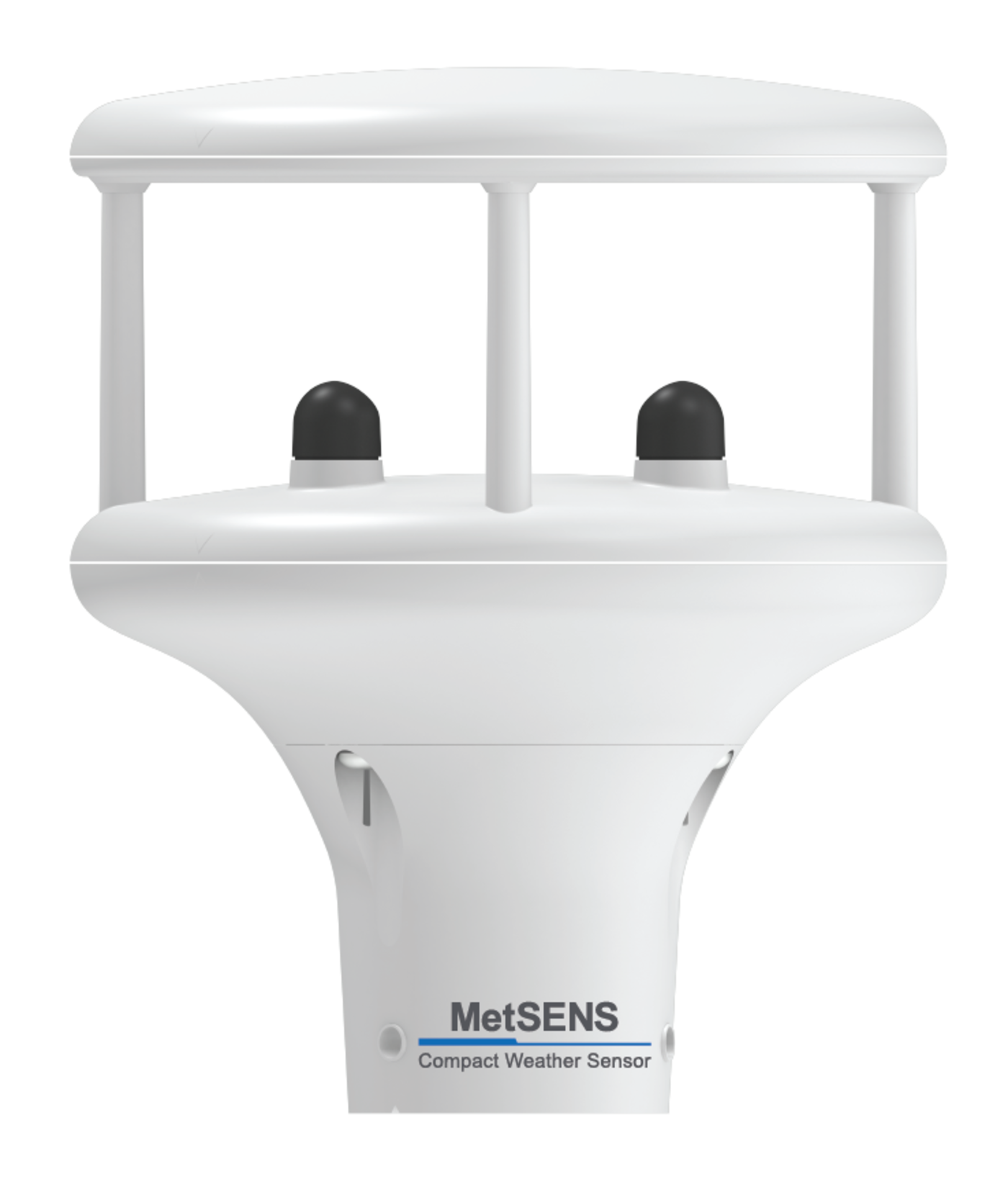

MetSens200

Compact Weather Sensor for Wind with Compass
MetSens200

MetSens200

OrderableConfigurable

Compact Weather Sensor for Wind with Compass

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
MetSens200
Item Number:
MetSENS200
Warranty:
2 years
Lead time:
14 days
Compliance:
requires 17387 or 34344

Overview

Compact Weather Sensor w/Wind & Compass -D2 RS-232 Digital Output

The MetSens200 compact weather sensor measures wind speed and direction via an ultrasonic sensor. An integrated electronic compass allows the MetSens200 to provide accurate, relative wind direction measurements without being oriented in a particular way, making installation easier. WMO average wind speed and direction and gust data are provided. The MetSens200 is compatible and easily integrated with the MeteoPV Solar Resource Platform and any Campbell Scientific data logger using SDI-12, RS-485, ModbusRS-485, or NMEA RS-232.

Key Advantages

Measures Wind Speed and Direction
IEC 61724-1 Compliant

Benefits

  • Quality measurements
  • Fast and simple to install
  • Compact, integrated design
  • Lightweight and robust

Specifications

Measurements Made
Wind direction and wind speed.
Sampling Rate
1 Hz
Digital Communication Modes
Serial RS-232, RS-485, SDI-12, NMEA, Modbus, ASCII
IP Rating
66
Compliance
CE, RoHS
Compliance
Where applicable, all individual parameters meet or exceed specifications of IEC 61724-1 (2017, 2021).
Operating Temperature Range
-40° to +70°C
Operating Voltage
5 to 30 Vdc
Typical Current Drain @ 12 Vdc
25 mA

(continuous high mode)

Typical Current Drain @ 12 Vdc
0.7 mA

(eco-power mode; 1 hour polled)

Weight
0.5 kg

(1.1 lb)

Wind Speed Measurement

Measurement Range
0.01 to 60 m s-1
Accuracy
±3%

(up to 40 m s-1)

Accuracy
±5%

(up to 60 m s-1)

Resolution
0.01 m s-1
Starting Threshold
0.01 m s-1

Wind Direction Measurement

Measurement Range
0° to 359°
Accuracy
±3°

(up to 40 m s-1)

Accuracy
±5°

(for 40 to 60 m s-1)

Resolution
1°

Compass

Measurement Range
0 to 359°
Resolution
1°
Units of Measure
Degrees
Accuracy
±3°

Ships With

(1)
  • Test Report Sheet
