LI200RX-L
LI200RX-L
End of lifeConfigurablePyranometer with Fixed Calibration
Pricing
- Model:
- LI200RX-L
- Item Number:
- 31984
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

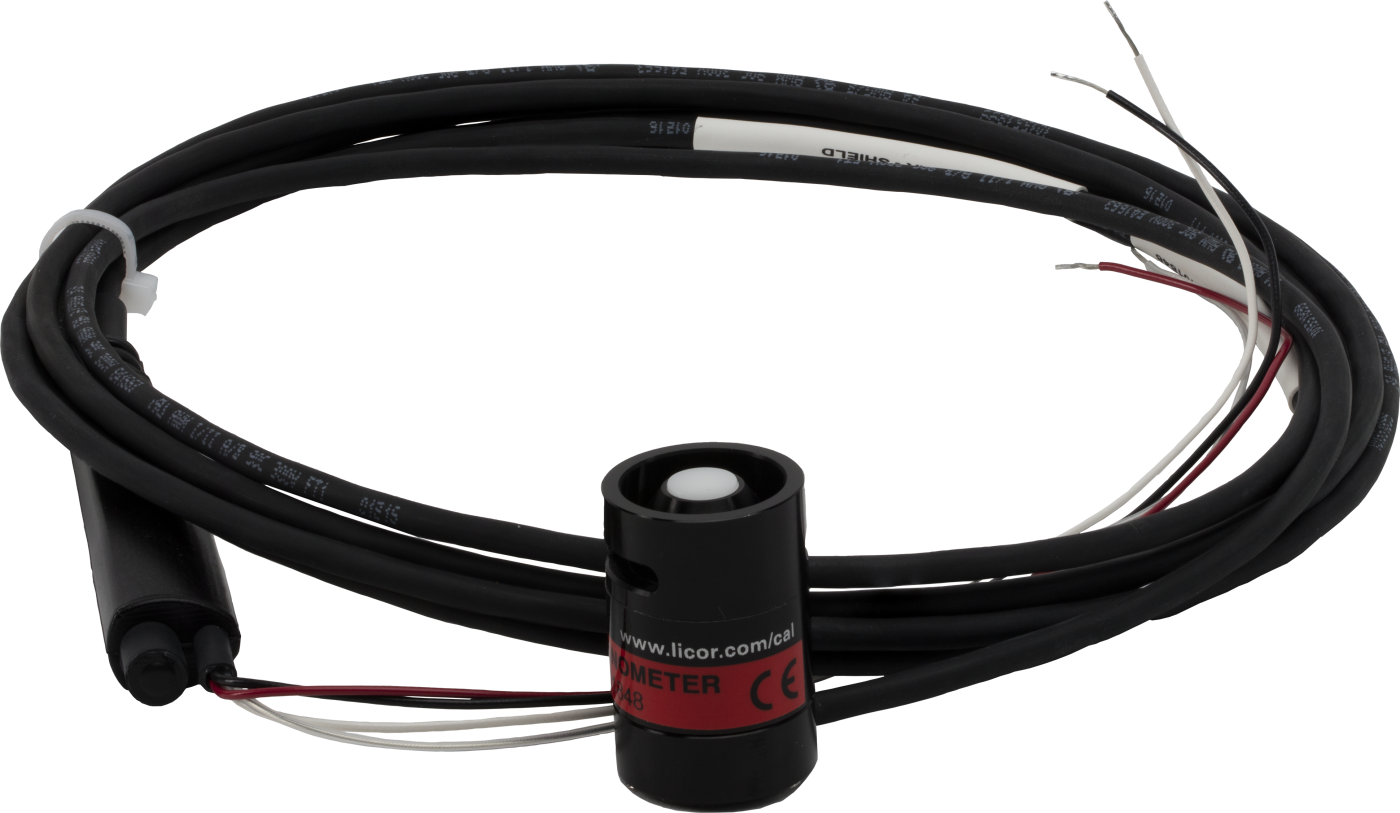

The LI200RX pyranometer measures both sun and sky solar radiation with a silicon photovoltaic detector mounted in a cosine-corrected head. The cable contains circuitry that standardizes sensor calibration, allowing complete sensors and cabling to be swapped out in the field without having to change the data logger programming.
This pyranometer connects directly to Campbell Scientific data loggers and is ideal for agricultural and meteorological applications. The LI200RX is calibrated for natural light. Campbell Scientific does not recommend using the LI200RX under artificial light or plant canopy.
Technical Description
The LI200RX pyranometer monitors sun plus sky radiation. It connects directly to Campbell Scientific data loggers and is used extensively in solar, agricultural, and meteorological applications. This pyranometer includes a completion circuit in its cable that standardizes calibration, allowing complete sensors and cabling to be interchanged without altering multiplier and offset values.
The LI200RX sensor head is calibrated against an Eppley Precision Spectral Pyranometer to accurately measure sun plus sky radiation. Campbell Scientific does not recommend using the LI200RX under vegetation or artificial lights because it is calibrated for the daylight spectrum (400 to 1100 nm).
Benefits
- Compatible with most Campbell Scientific data loggers
- Sensor and cable can be swapped out in the field with no changes to the data logger program
- Ideal for solar, agricultural, and meteorological applications
- Measures sun plus sky radiation
Specifications
- Light Spectrum Waveband
- 400 to 1100 nm
- Calibration
- ±5% traceable to the U.S. National Institute of Standards Technology
(NIST)
- Sensitivity
- 0.2 kW m-2 mV-1
- Linearity
- Maximum deviation of 1% up to 3000 W m-2
- Absolute Error in Natural Daylight
- ±5%
(maximum)
- Absolute Error in Natural Daylight
- ±3%
(typical)
- Shunt Resistor
- Adjustable, 40.2 to 90.2 Ω
(factory set to give the above sensitivity)
- Stability
- < ±2% change over a 1-year period
- Response Time
- < 1 μs
- Temperature Dependence
- 0.15% per °C
(maximum)
- Cosine Correction
- Cosine corrected up to 82° angle of incidence
- Operating Temperature Range
- -40° to +65°C
The overmolding that protects the completion circuit in the cable of the LI200RX may crack if temperatures drop below -40°C. - Relative Humidity Range
- 0 to 100%
- Detector Description
- High-stability silicon photovoltaic
- Sensor Housing Description
- Weatherproof anodized aluminum case with acrylic diffuser and stainless-steel hardware
- Diameter
- 2.36 cm
(0.93 in.)
- Height
- 3.63 cm
(1.43 in.)
- Weight
- 84 g
(2.96 oz)
