Granite 6
Granite 6
RetiredMeasurement and Control Data Acquisition System
Pricing
Configuration
Sign in for option pricing- Standard DutyGRANITE6-SD
- Extended DutyGRANITE6-XD
Select a configuration to add to your quote
- Model:
- Granite 6
- Item Number:
- Granite6
- Warranty:
- 3 years
- Lead time:
- 60 days

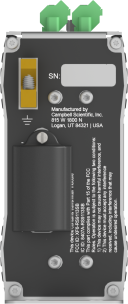

Overview

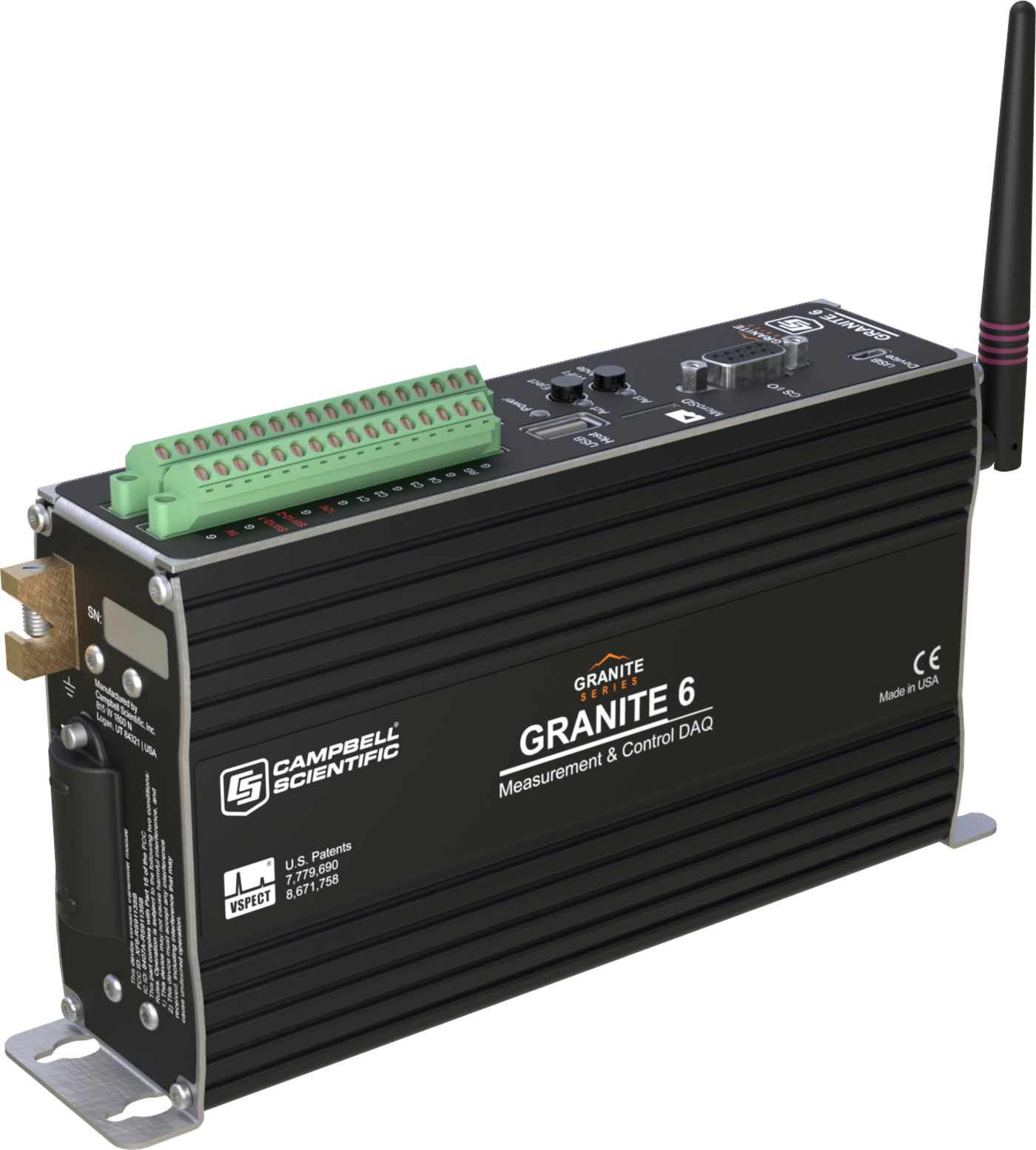

The Granite™6 DAQ is a powerful core component for your complete data acquisition system. The Granite 6 provides fast communication, low power requirements, built-in USB and Wi-Fi, modular design, and high analog input accuracy and resolution. It uses universal (U) terminals to allow a connection to virtually any sensor—analog, digital, or smart. The multipurpose DAQ is also capable of measuring static vibrating wire measurements.
Learn about our patented VSPECT™ spectral-analysis technology at our VSPECT Essentials web resource.
The dynamic vibrating wire measurement technique is protected under U.S. Patent No. 8,671,758, and the vibrating wire spectral-analysis technology (VSPECT) is protected under U.S. Patent No. 7,779,690.
Key Advantages
Flexible, precise, accurate
Technical Description
The Granite 6 provides extreme measurement versatility, has multiple communications options, processes sensor responses to engineering units, performs calculations, generates alarms, and controls external devices. Data are stored in onboard, nonvolatile memory awaiting transfer to the end user via direct or remote access. The Granite 6 can generate real-time or event-driven data tables. These data can be further processed with high-level math functions and statistical summaries such as averages, standard deviations, and rainflow histograms.
Benefits
- Operational in extreme environments with a standard operating range of -40° to +70°C <!--and an extended operating range of -55° to +85°C-->
- USB and built-in Wi-Fi for easy connection to PC
- Universal terminals configurable for analog or digital, input or output
- Supports static vibrating wire measurements using Campbell Scientific’s patented VSPECT spectral analysis technology
- Industry leader for high-resolution measurement needs
- USB host facilitates additional memory in large data applications
Specifications
- -NOTE-
- Additional specifications are listed in the GRANITE 6 Specifications.
- Pulse Counters
- 12 (U1 to U12)
- Voltage Excitation Terminals
- 12 (U1 to U12)
- Universal Inputs
- 12 individually configured inputs for analog or digital functions
- Case Material
- Stainless steel 304 and aluminum 6061
- Operating Temperature Range
- -40° to +70°C
(standard)
- Operating Temperature Range
- Non-condensing environment

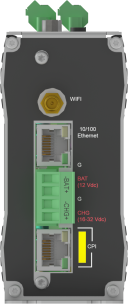

- Communications Ports
- Ethernet
- Communications Ports
- USB Micro B
- Communications Ports
- USB host
- Communications Ports
- CS I/O
- Communications Ports
- 0 to 5 V serial
- Communications Ports
- SDI-12
- Communications Ports
- RS-485
- Communications Ports
- RS-422
- Communications Ports
- CPI/RS-232
- Data Storage Ports
- microSD
- Data Storage Ports
- USB host
- Digital I/O
- 16 terminals (C1 to C4, U1 to U12) configurable for digital input and output.
Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
- Analog Voltage Accuracy
- Accuracy specifications do not include sensor or measurement noise.
- Analog Voltage Accuracy
- ±(0.04% of measurement + offset) at 0° to 40°C
- Analog Voltage Accuracy
- ±(0.06% of measurement + offset) at -40° to +70°C
- ADC
- 24-bit
- Power Requirements
- 16 to 32 Vdc for charger input (CHG)
- Power Requirements
- 10 to 16 Vdc for battery input (BAT)
- Real-Time Clock Accuracy
- ±3 min. per year (optional GPS correction to ±10 µs; 5.7 ppm)
- Internet Protocols
- Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP
- Communication Protocols
- CPI, PakBus, PakBus Encryption, SDM, SDI-12, Modbus RTU / ASCII / TCP, DNP3, custom user definable over serial, UDP, NTCIP, NMEA 0183, I2C, SPI
- Warranty
- 3 years standard (against defects in materials and workmanship)
- Warranty
- Optional: An additional 2 years (against defects in materials and workmanship), bringing the total to 5 years
- Battery-backed SRAM for CPU Usage & Final Storage
- 4 MB
- Data Storage
- 4 MB SRAM + 72 MB flash
(Storage expansion of up to 16 GB with removable microSD flash memory card.)
- Idle Current Drain, Average
- Assumes 12 Vdc on BAT terminals; add 2 mA if using CHG terminals.
- Idle Current Drain, Average
- < 1 mA
- Active Current Drain, Average
- Assumes 12 Vdc on BAT terminals; add 2 mA if using CHG terminals.
- Active Current Drain, Average
- 3 mA
(1 Hz scan)
- Active Current Drain, Average
- 67 mA
(20 Hz scan)
- Static Vibrating Wire Measurements
- Supported
- Dimensions
- 21.4 x 12.0 x 5.0 cm
(8.4 x 4.7 x 2.0 in.)
Additional clearance required for cables and leads. - Weight
- 0.86 kg
(1.9 lb)
- Maximum Program Scan Rate
- 1 kHz
- Measurement Module Synchronization
- ±5 µs
(CPI)
- GPS Synchronization
- ±20 µs
- Maximum Number of Measurement Modules
- 15
- Input Limits
- ±5 V
