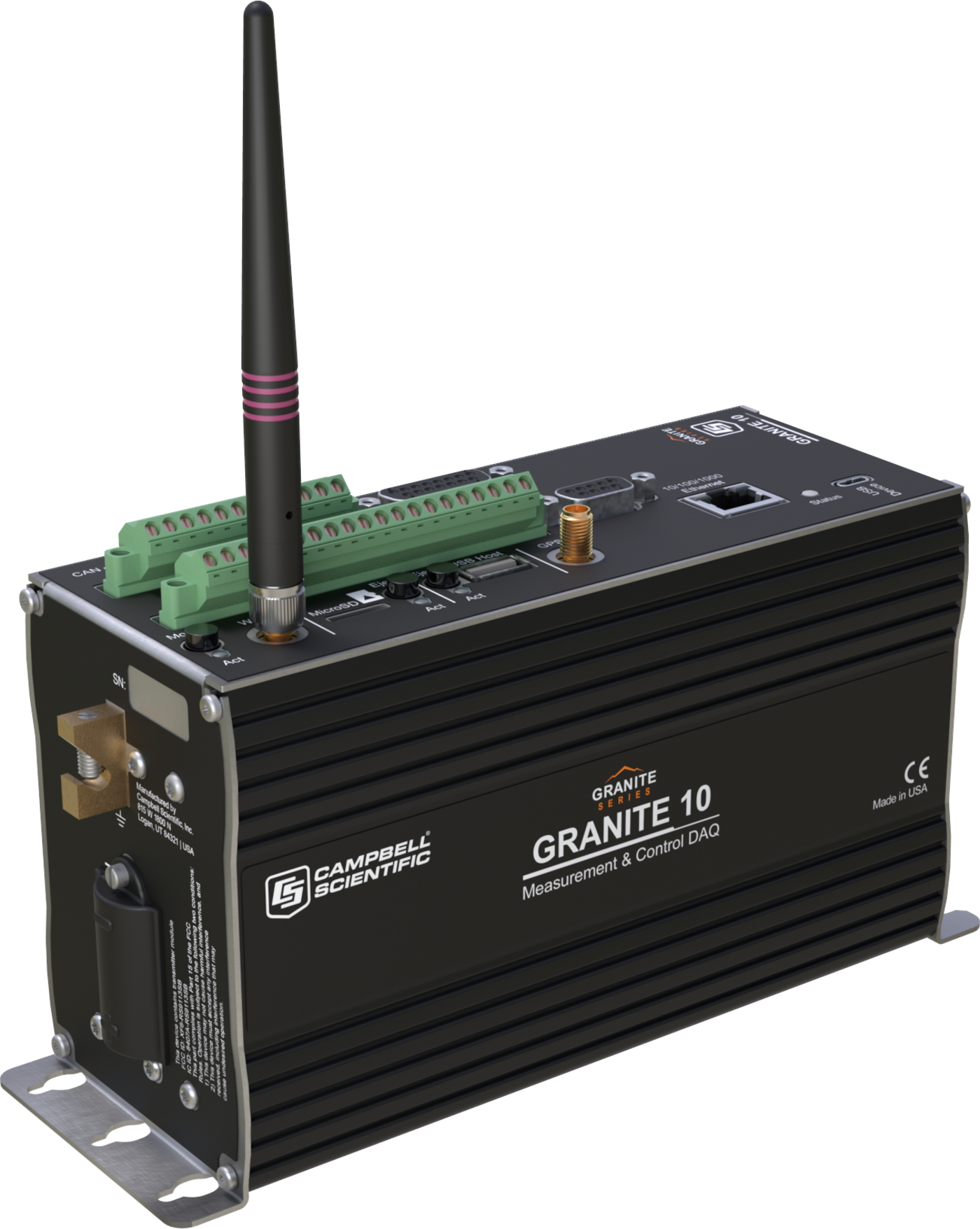

Similar to the Granite™9, the Granite™10 is the most computationally powerful data acquisition device from Campbell Scientific. As an all-digital measurement and control DAQ, the Granite 10 is designed as the core of the data acquisition network, integrating with all GRANITE™ measurement modules, including the Volt 108, Volt 116, Temp 120, and VWire 305. Unlike the Granite 9, however, the Granite 10 also includes four general-purpose CAN channels. With its CAN channels, a larger 128 GB SSD, and extended temperature ranges, the Granite 10 is your ultimate tool for automotive testing.
Key Advantages
Featuring CAN bus and CAN FD output
Technical Description
The Granite 10 enables you to perform the following:
- Standard measurement functions
- Advanced math and processing functions
- Control functions
Benefits
- Traditional network connections via Ethernet port
- EPI port switch for high-speed connection to all GRANITE measurement modules
- Onboard storage of streaming data with 2 GB of DDR3 SDRAM and a 128 GB solid-state hard drive (SSD)
- Built-in GPS for network synchronization
- General-purpose CAN channels
Specifications
- -NOTE-
- Additional specifications are listed in the GRANITE 10 Specifications.
- Maximum Program Scan Rate
- 10 kHz
- Measurement Module Synchronization
- ±5 µs
(CPI)
- Measurement Module Synchronization
- ±50 ns
(EPI)
- GPS Synchronization
- ±200 ns
- Maximum Number of Measurement Modules
- 15 + 15 + 15
- Power Requirements
- 9.6 to 32 Vdc (voltage input)
- Power Requirements
- 10 to 18 Vdc for battery input (BAT)
- Real-Time Clock Accuracy
- ±3 min. per year
- Operating Temperature Range
- -40° to +70°C
(standard)
- Operating Temperature Range
- -55° to +85°C
(extended)
- Operating Temperature Range
- Non-condensing environment
- Case Material
- Stainless steel 304 and aluminum 6061
- Universal Inputs
- 12 individually configured inputs for analog or digital functions
- Pulse Counters
- 8 (C1 to C8)
- Voltage Excitation Terminals
- 12 (U1 to U12)
- Communications Ports
- CAN FD
- Communications Ports
- CAN
- Communications Ports
- Ethernet
- Communications Ports
- USB Micro B
- Communications Ports
- USB host
- Communications Ports
- CS I/O
- Communications Ports
- 0 to 5 V serial
- Communications Ports
- SDI-12
- Communications Ports
- RS-485
- Communications Ports
- RS-422
- Communications Ports
- CPI/RS-232
- Communications Ports
- EPI
- Data Storage Ports
- microSD
- Data Storage Ports
- USB host
- Digital I/O
- 8 terminals (C1 to C8) configurable for digital input and output.
Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
- Analog Voltage Accuracy
- Accuracy specifications do not include sensor or measurement noise.
- Analog Voltage Accuracy
- ±(0.04% of measurement + offset) at 0° to 40°C
- Analog Voltage Accuracy
- ±(0.06% of measurement + offset) at -40° to +70°C
- Analog Voltage Accuracy
- ±(0.08% of measurement + offset) at -55° to +85°C
(extended temperature range)
- ADC
- 24-bit
- Internet Protocols
- Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP
- Communication Protocols
- CAN FD, CAN, CPI, EPI, PakBus, PakBus Encryption, SDM, SDI-12, Modbus RTU / ASCII / TCP, DNP3, custom user definable over serial, UDP, NTCIP, NMEA 0183, I2C, SPI
- Warranty
- 3 years standard (against defects in materials and workmanship)
- Warranty
- Optional: An additional 2 years (against defects in materials and workmanship), bringing the total to 5 years
- Battery-backed SRAM for CPU Usage & Final Storage
- 4 MB
- Data Storage
- 4 MB SRAM + 128 MB NOR flash
(Storage expansion of up to 16 GB with removable microSD flash memory card.)
- Data Storage
- 128 GB SSD
- Idle Current Drain, Average
- Assumes 12 Vdc on BAT terminals; add 2 mA if using CHG terminals.
- Idle Current Drain, Average
- < 1 mA
- Active Current Drain, Average
- ~6 W
- Active Current Drain, Average
- 255 mA input
(24 V input)
- Active Current Drain, Average
- 495 mA input
(12 V input)
- Static Vibrating-Wire Measurements
- Not supported
- Dimensions
- 21.4 x 12.0 x 7.5 cm
(8.4 x 4.7 x 3.0 in.)
Additional clearance required for cables and leads. - Weight
- 1.2 kg
(2.7 lb)
Ships With
(1)- Orderable
Related Resources
Case Studies
Documents
Videos and Tutorials

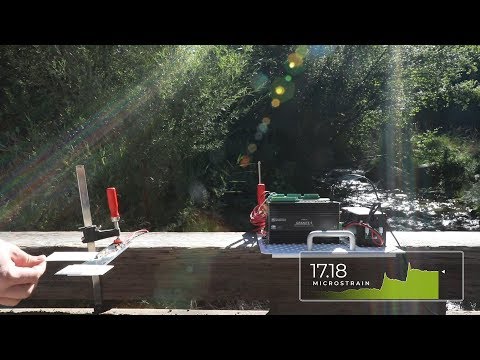

GRANITE | Extreme Sensitivity
