34750
Parts Included Kit for the Granite 9 and Granite 10
34750
OrderableParts Included Kit for the Granite 9 and Granite 10
Overview
SUB GRANITE9 & GRANITE10 Parts Included w/Kit

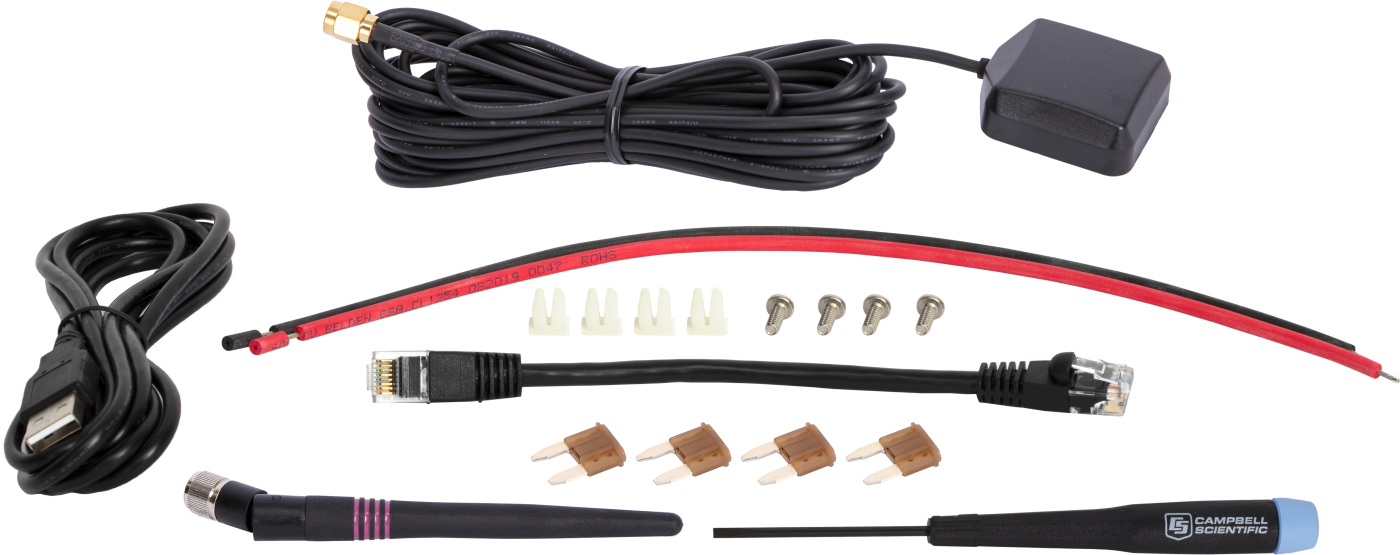

The 34750 consists of the 28898 6 in. RJ45 to RJ45 cable, the 27555 USB 2.0 cable, the 9634 black and 9635 red power wires, the 8125 flat-bladed screwdriver, the 31182 GPS antenna, the 16005 omnidirectional 1/2 wave whip antenna, the 34774 Granite 9 and 10 replacement fuse kit, four 505 screws, and four 6044 grommets.
Technical Description
The34750 kit aids in the mounting of a Granite 9 or Granite 10 inside an enclosure and includes the following:
- (1) RJ45 to RJ45 cable (6 in.)
- (1) USB 2.0 cable
- (1) Set of black and red power wires
- (1) Flat-bladed screwdriver
- (1) 27 dBi GPS antenna with a 3 V magnetic mount and SMA connector
- (1) 2.4 GHz 0 dBd omnidirectional 1/2 wave whip antenna
- (1) Mini-blade 5 A replacement fuse kit for the Granite 9 and Granite 10
- (4) Mounting screws
- (4) Mounting grommets
