ENCTDR100
Enclosure to Hold Datalogger, SDM8X50-N, and TDR200, 16 x 18 inches
ENCTDR100
RetiredEnclosure to Hold Datalogger, SDM8X50-N, and TDR200, 16 x 18 inches
Pricing
- Model:
- ENCTDR100
- Item Number:
- 17234
- Warranty:
- 1 year
Overview
ENCTDR100 16 x 18 Enclosure to Datalogger, SDM8X50-N & TDR200 (Ships as 13709 & 7363)
The ENCTDR100 is a white fiberglass-reinforced polyester enclosure that protects the TDR equipment from weather, condensing humidity, and dust. With internal dimensions of 16" x 18" x 8", it can house the data logger, power supply, TDR200, and SDM8X50-N.

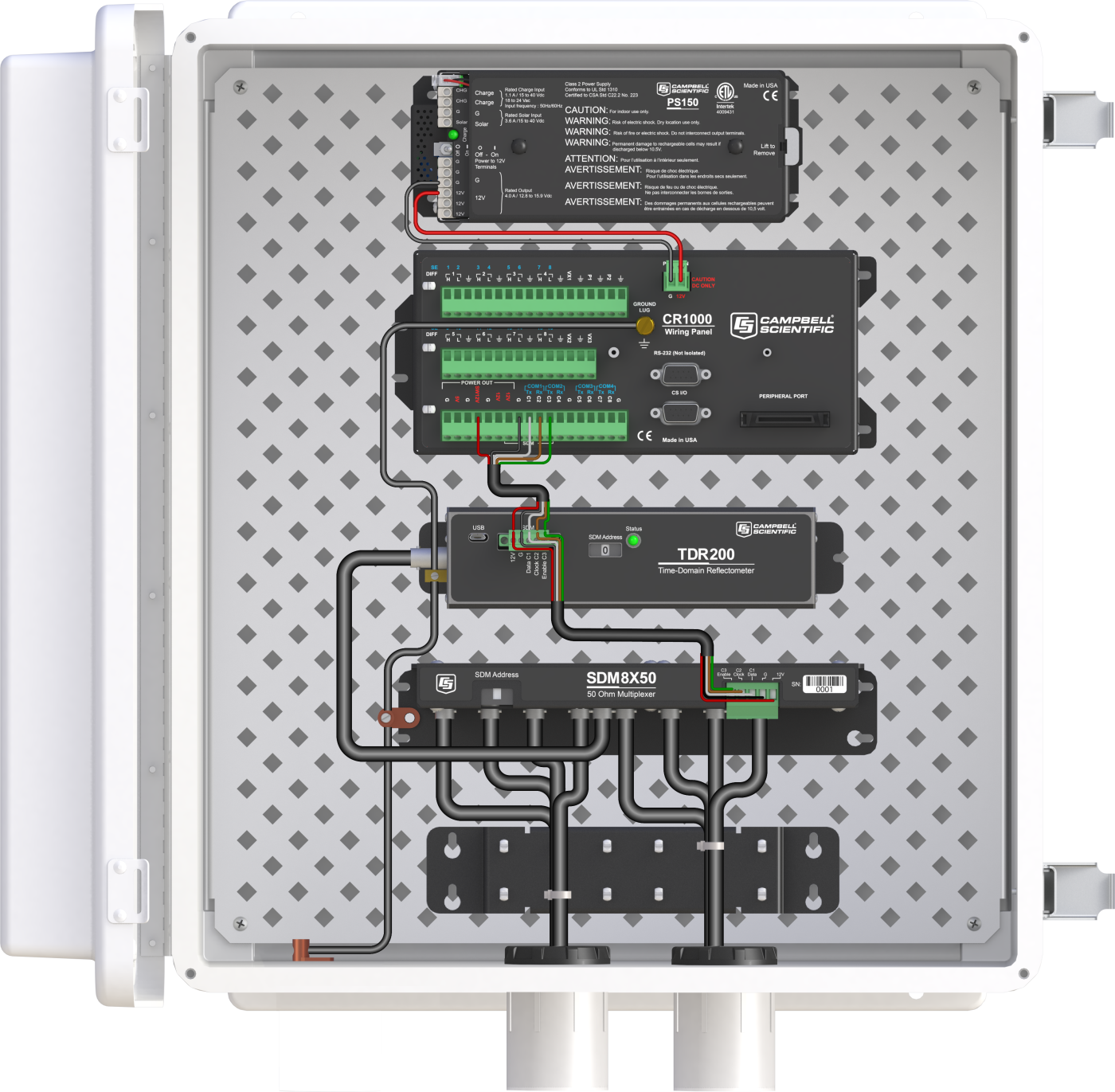

Note: In the image above, the ENCTDR100 is shown with the SDM8X50, PS150, TDR200, and CR1000. These items are sold separately.
Key Advantages
Rugged, Versatile
Campbell components mount easily and securely
Campbell components mount easily and securely
Benefits
- White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield
Specifications
- Dimensions
- 40.6 x 45.7 x 20.3 cm
(16.0 x 18.0 x 8.0 in.) internal
- Dimensions
- 41.9 x 47.0 x 27.9 cm
(16.5 x 18.5 x 11.0 in.) external
- Weight
- 9.7 kg
(21.4 lb)
