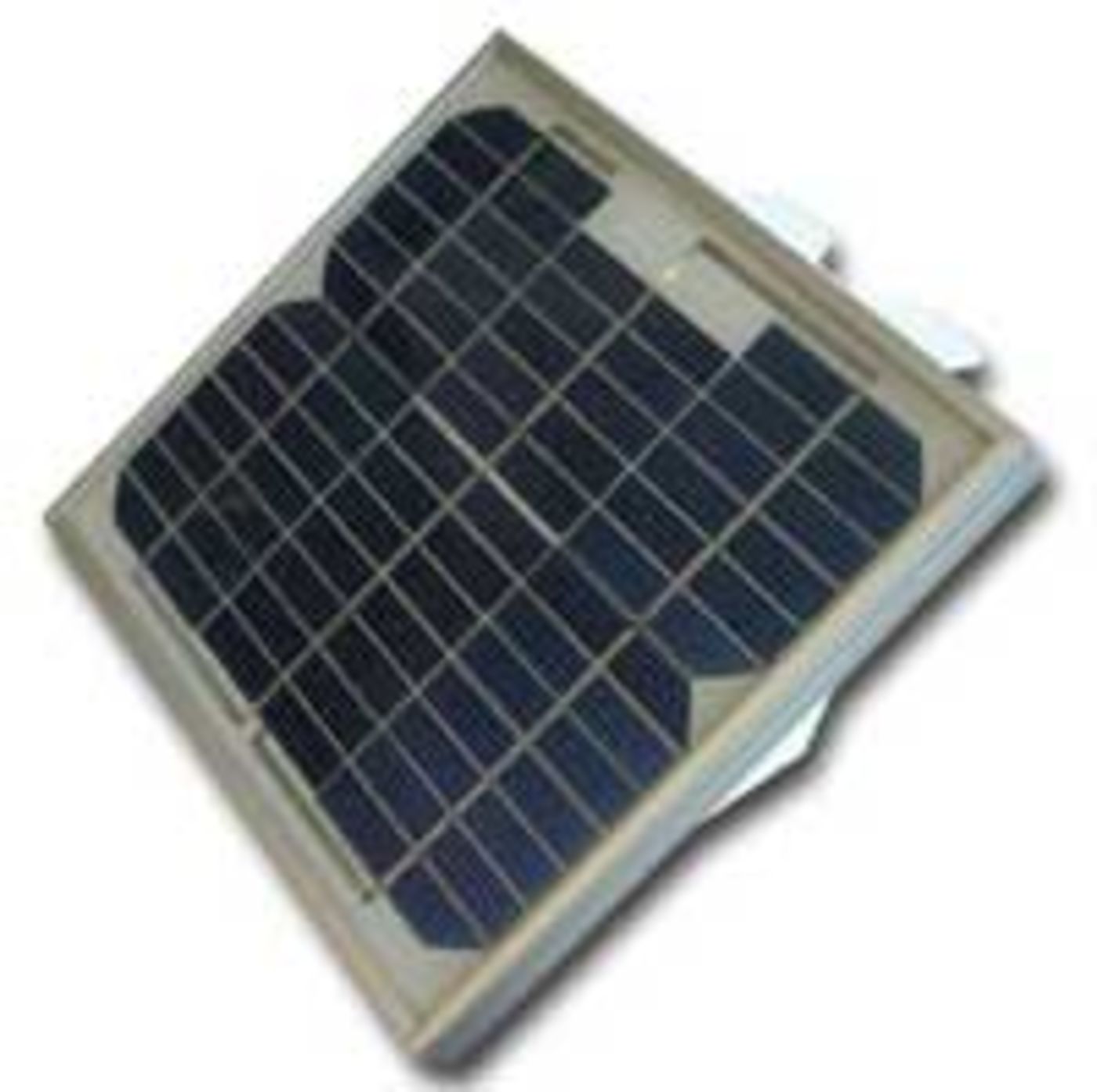

Retired5 W Solar Panel with Connector for ENC200 and TurfWeather Stations
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) per CableSP5-3m
- w/5m (17ft) per CableSP5-5m
- w/60m (200ft) per CableSP5-60m
Select a configuration to add to your quote
- Model:
- SP5
- Item Number:
- 45199
- Warranty:
- 1 year
Overview
The SP5 5 W solar panel differs from the SP5-L only in its cable termination. The SP5 is fitted with a special connector that inserts in a mating power connector on the ENC200. The SP5 is typically used as a recharging source with our CR200- and CR200X-series dataloggers.
Technical Description
The SP5 solar panel captures solar energy via a 72 in.2 surface area. It is only suitable for systems with low power requirements. Sites must also have good exposure to sunlight.
The SP5 differs from the SP5-L only in its cable termination. The SP5-L cable terminates in pigtails that attaches either to the data logger's terminals or a standard power supply. In contrast, the SP5 cable terminates in a connector for attachment to the ENC200 enclosure.
Mounting hardware consists of one 17492 U-bolt and matching nuts. The U-bolt has a 5.398 cm (2.125 in.) space between the U-bolt legs. This hardware allows the solar panel to be mounted to a 0.75-1.5 in. IPS pipe [25.4-50.8 cm (1-2 in.) OD].
Specifications
- -NOTE-
- Solar panel characteristics assume 1 kW m-2 illumination and 25°C solar panel temperature.
Individual panels may vary up to 10%. The output panel voltage increases as the panel temperature decreases.
- Cable Description
- 20 AWG, 1-twisted pair
- Maximum Peak Power
- 4.5 W
- Voltage at Peak
- 16.5 V
- Current at Peak
- 0.27 A
- Cable Length
- 0.91 m
(3 ft)
- Dimensions
- 25.1 x 26.9 x 2.3 cm
(9.9 x 10.6 x 0.9 in.)
- Weight
- 0.9 kg
(2 lb)
