OrderableConfigurableGSAFuel Moisture Sensor
Ideal for fire-weather applications.
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) per Sensor w/Ferrules on WiresCS506-3m
- w/5m (17ft) per Sensor w/Ferrules on WiresCS506-5m
- w/10m (33ft) per Sensor w/Ferrules on WiresCS506-10m
- w/15m (50ft) per Sensor w/Ferrules on WiresCS506-15m
Select a configuration to add to your quote
- Model:
- CS506
- Item Number:
- 45153
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The CS506 is a fuel moisture sensor that measures the moisture content of the 26601 10-hour fuel moisture stick. The 26601 emulates the moisture content of similarly sized twigs on the forest floor. The CS506/26601 combination is used to assess forest fire fuel and is often incorporated in our prewired or custom fire-weather stations.

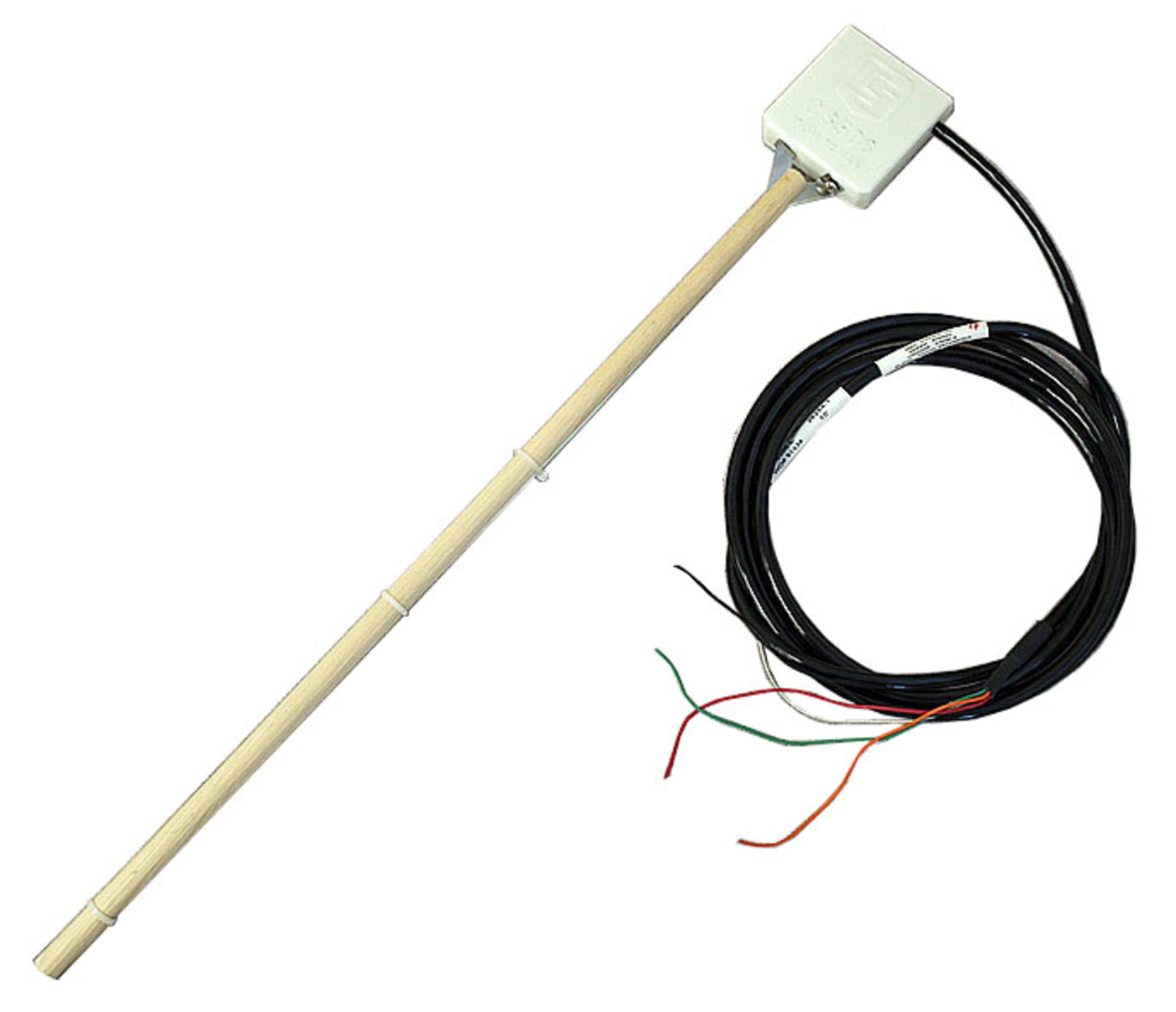

Note: The image shows a CS506 fuel moisture sensor attached to a 26601 fuel moisture stick. The 26601 is purchased separately.
Key Advantages
Monitors forest-fire factor; ideal for use with RAWS
Technical Description
The CS506 reports the status of small-diameter (10-hour) forest fire fuels as percent moisture by weight (1%=1 g water/100 g dry fuel). It consists of an epoxy-encapsulated electronics package that uses time-domain reflectometry (TDR) technology to measure the moisture content of the 26601 10-hour Fuel Moisture Stick. The sensor produces a ±0.7 Vdc square-wave frequency that is read using an analog or pulse channel on a Campbell Scientific data logger. The data logger then converts the frequency measurement to percent fuel moisture via a quadratic calibration.
Benefits
- Compatible with most Campbell Scientific data loggers
- Companion product to CS205/107 fuel temperature sensor; can be mounted on the same stake
- Can automatically monitor changing fuel conditions without having to visit the measurement site
- Compatible telemetry options include spread spectrum radios, narrow-band radios, cellular phones, and satellite transmitters
Specifications
- Operating Range
- 0 to 70% moisture content
- Power Supply
- 5 to 18 Vdc
- Enable Voltage
- off at 0 Vdc (< 1 Vdc)
- Enable Voltage
- on at 5 Vdc (> 4 Vdc; maximum 18 Vdc)
- Current Consumption
- 65 mA
(active)
- Current Consumption
- 45 μA
(quiescent)
- Output Signal
- ±0.7 Vdc square wave
(with an output frequency of approximately 31 to 58 kHz)
- Dimensions
- 10.16 x 6.35 x 1.91 cm
(4 x 2.5 x 0.75 in.)
- Weight
- < 0.5 kg
(< 1 lb)
Fuel Moisture Accuracy
- 0 to 10% Range
- ±1.25%
(worst case)
- 0 to 10% Range
- ±0.74%
(RMS error)
- 10 to 20% Range
- ±2%
(worst case)
- 10 to 20% Range
- ±0.9%
(RMS error)
- 20 to 30% Range
- ±3.4%
(worst case)
- 20 to 30% Range
- ±1.94%
(RMS error)
- 30 to 50% Range
- ±4.11%
(worst case)
- 30 to 50% Range
- ±2.27%
(RMS error)
