CS205
CS205
Orderable10-Hour Fuel Temperature Stick (without sensor)
Pricing
- Model:
- CS205
- Item Number:
- 10984
- Warranty:
- 1 year
- Lead time:
- 21 days
- Compliance:
- requires 107
Overview

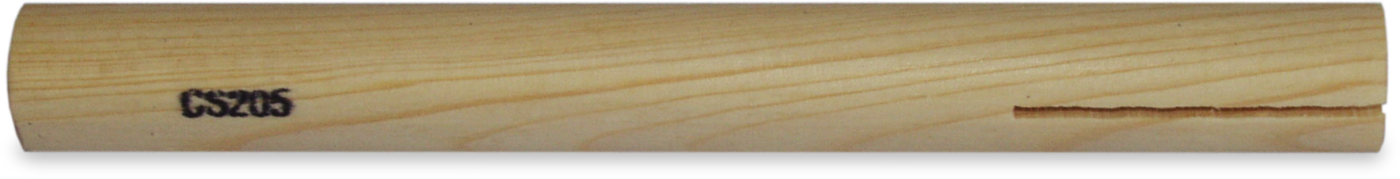

The CS205 is a hollowed-out ponderosa-pine dowel that emulates the temperature of similarly sized twigs on the forest floor. Fuel temperature is measured by inserting the thermistor-based 107 probe inside the CS205 dowel. The CS205 and 107 probe are often incorporated in our prewired or custom fire-weather stations.
Key Advantages
Technical Description
The CS205's ponderosa pine dowel is fabricated to US Forest Service specifications, but with a hole bored into one end. Dowel replacement is recommended every spring; more frequent replacement may be required in some environments (i.e., those with a large number of wet/dry cycles). The CS205 is easily replaced in the field using a Phillips screwdriver and an adjustable wrench.
Benefits
- Companion product to CS506 fuel moisture sensor; can be mounted on the same stake
- Used with the 107 probe to measure fuel temperature for forest fire applications
Specifications
- Material
- Ponderosa Pine
- Diameter
- 1.3 cm
(0.5 in.)
- Length
- 11.4 cm
(4.5 in.)
- Weight
- 9.07 g
(0.32 oz) for stick only
