CS115
Druck Barometric Pressure Sensor
CS115
End of lifeDruck Barometric Pressure Sensor
Pricing
- Model:
- CS115
- Item Number:
- CS115
- Lead time:
- 21 days
Overview

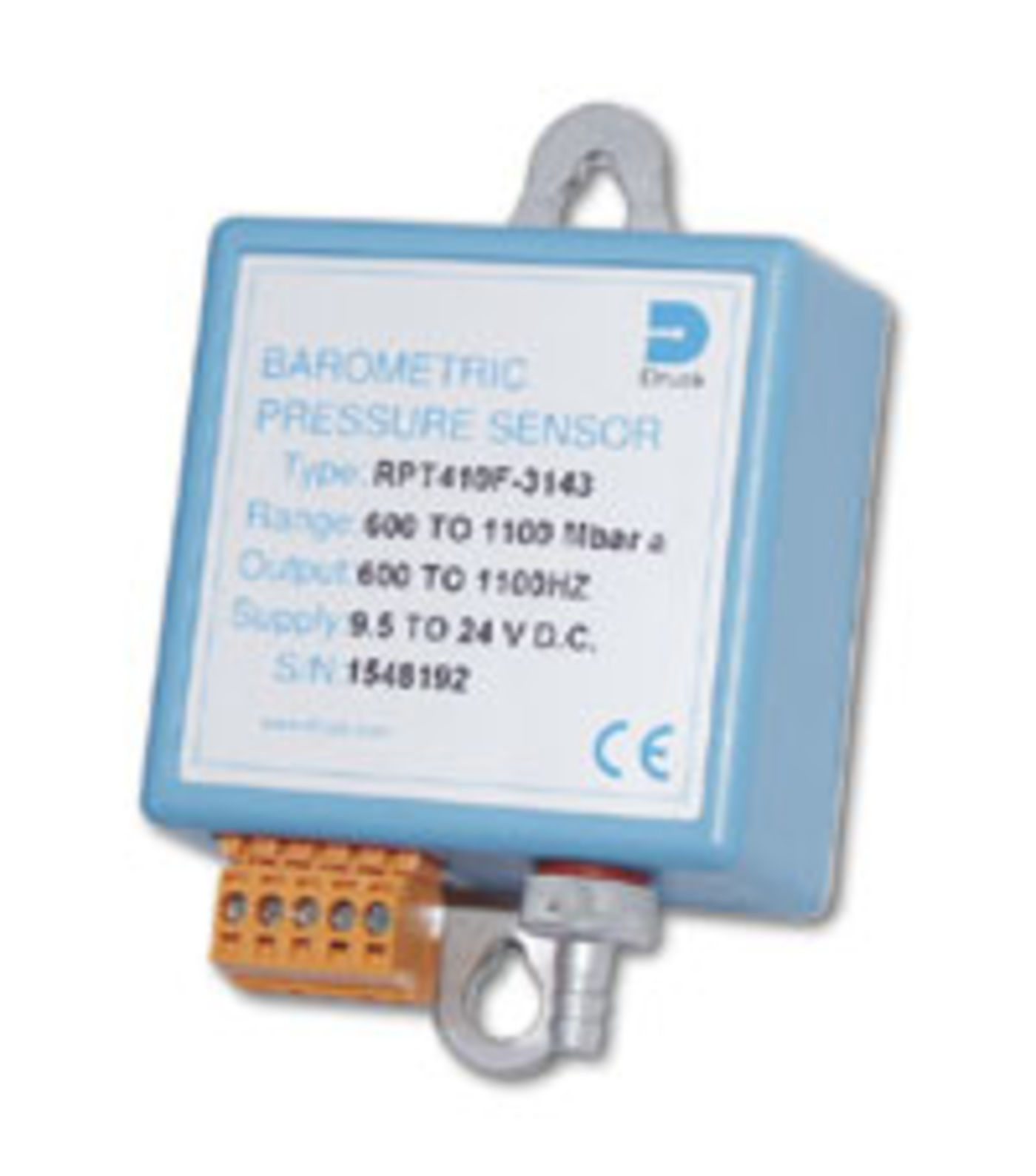

The CS115 was retired effective 22 August 2006. If you are a CS115 user, and desire additional or replacement units, the product may be available on special order with a long lead time (months). Contact Campbell Scientific for details. The CS115 was a barometric pressure transducer with a measurement range of 600 to 1100 mb (below sea level—as in a mine—to approximately 12,000 feet); the overpressure limit was 1375 mb. The CS115 was manufactured by Druck, Inc. as their model RPT410F.
Specifications
- Operating Temperature
- -40° to +60°C
- Measurement Range
- 600 to 1100 mb
- Overpressure Limit
- 1375 mb
- Accuracy
- ±0.3 mb
(@ +20°C)
- Dimensions
- 6.0 cm x 6.0 cm x 2.9 cm
(2.4 x 2.4 x 1.2 in.)
