16004
Replacement Terminal Block for Barometers
16004
OrderableReplacement Terminal Block for Barometers
Overview
CON TRM Screw 3.5mm 5-Pin Plug 16-28 AWG Black

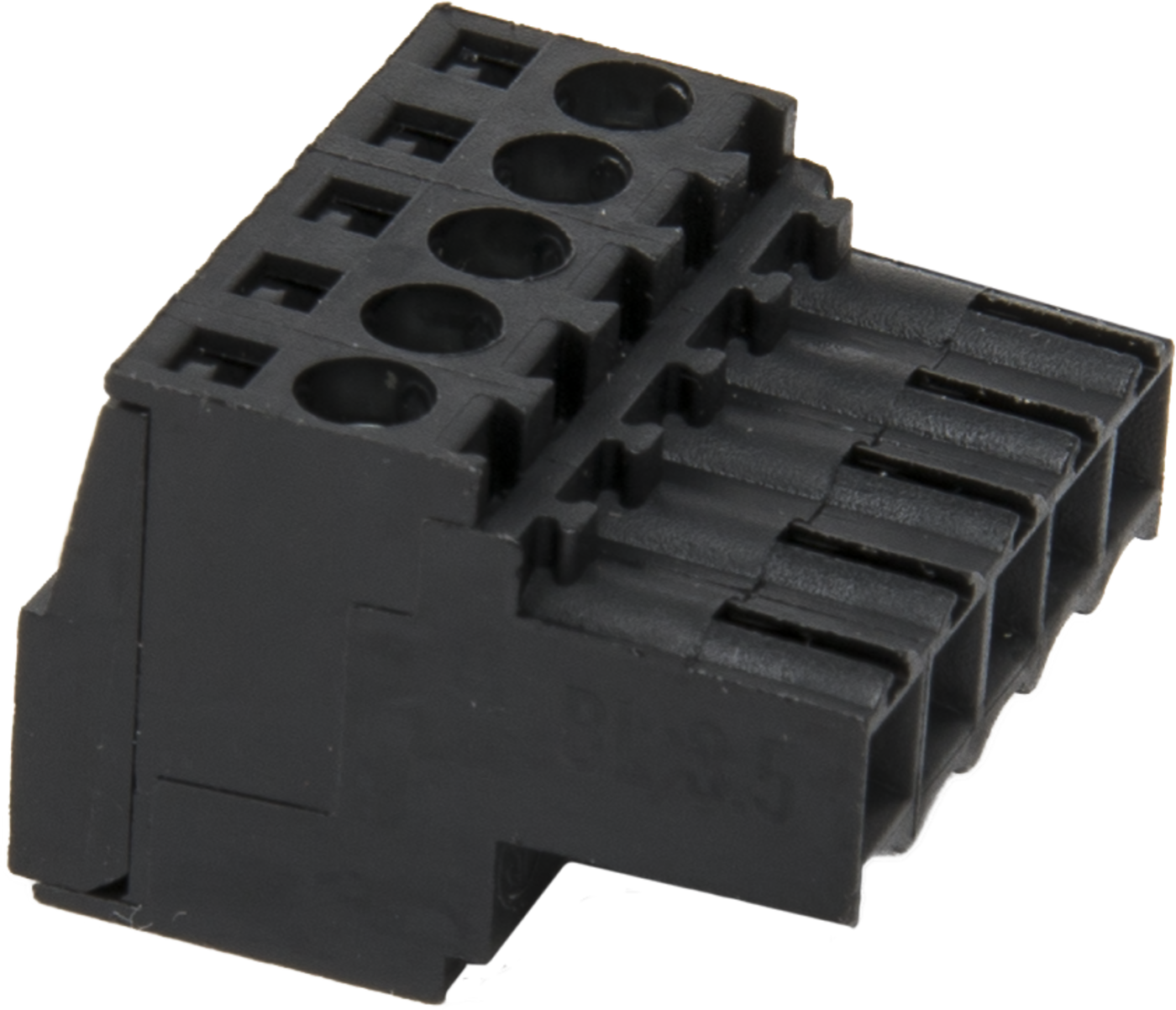

This terminal block is a replacement part for our barometers. The 16004 has five screw terminals for connection of the sensor wire that attaches the data logger to the barometer. The terminal block plugs into a mating port on the barometers. Please note that it has black connectors as opposed to the orange connectors on the barometer's original terminal block.
Specifications
- Plug
- 5-pin screw terminal plug connector
- Pitch
- 3.5 mm
- Wire Entry
- Straight
- Color
- Black
- Dimensions
- 1.85 x 1.75 x 1.85 cm
(0.73 x 0.69 x 0.73 in.)
- Weight
- 4.54 g
(0.01 lb)
