CS106
CS106
OrderableConfigurableBarometer
Ideal for elevations above 12,000 ft (3,657 m).
Pricing
Configuration
Sign in for option pricing- Inch cable) w/Ferrules on WiresCS106-PF
- Inch) Cable w/Tinned WiresCS106-PT
Select a configuration to add to your quote
- Model:
- CS106
- Item Number:
- CS106
- Warranty:
- 3 years
Overview

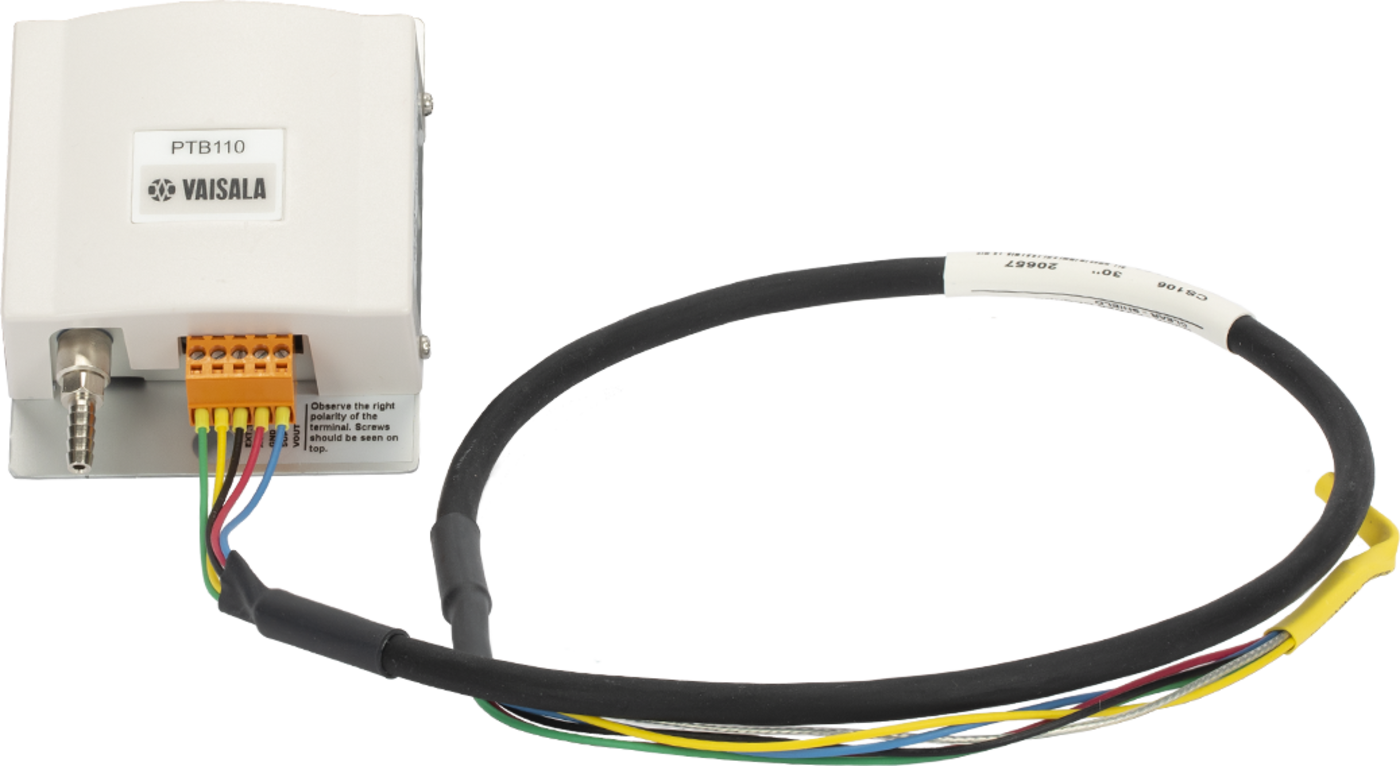

The CS106, manufactured by Vaisala, measures barometric pressure for the range of 500 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) to over 15,000 feet above sea level. Designed for use in environmental applications, the CS106 is compatible with most Campbell Scientific data loggers. The CS106 has an attached 76.2 cm (30 in.) cable.
Key Advantages
Resides inside weatherproof enclosure
Technical Description
The CS106 uses Vaisala’s BAROCAP silicon capacitive sensor to measure barometric pressure. It is encased in a plastic shell (ABS/PC blend) fitted with an intake valve for pressure equilibration.
The CS106 outputs a linear signal of 0 to 2.5 Vdc, which allows the barometer to be directly connected to a Campbell Scientific data logger. An internal switching circuit allows the data logger to power the CS106 only during measurement, which reduces power consumption.
Benefits
- Optimized to mount in Campbell Scientific enclosures
- Integral switching circuit limits power consumption to measurement cycle
- Three-year warranty
Specifications
- -NOTE-
- 1 hPa = 1 mBar
- Pressure Range
- 500 to 1100 hPa
- Long-Term Stability
- ± 0.1 hPa per year
- Settling Time
- 1 s to reach full accuracy after power-up
- Response Time
- 500 ms to reach full accuracy after a pressure step
- Resolution
- ±0.01 hPa
- Output Voltage
- 0 to 2.5 Vdc
- Supply Voltage
- 10 to 30 Vdc
- Elevation
- ~609.6 m (2,000 ft) below sea level (as in a mine) to 4,572 m (15,000 ft) above sea level
- Accuracy
- Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty.
- Accuracy
- ±0.3 hPa
(@ +20°C)
- Accuracy
- ±0.6 hPa
(@ 0° to 40°C)
- Accuracy
- ±1.0 hPa
(@ -20° to +45°C)
- Accuracy
- ±1.5 hPa
(@ -40° to +60°C)
- Linearity
- ±0.25 hPa
- Hysteresis
- ±0.03 hPa
- Repeatability
- ±0.03 hPa
- Calibration Uncertainty
- ±0.15 hPa
- Current Consumption
- < 4 mA
(active)
- Current Consumption
- < 1 µΑ
(quiescent)
- Temperature Range
- -40° to +60°C
- Dimensions
- 6.8 x 9.7 x 2.8 cm
(2.7 x 3.8 x 1.1 in.)
- Cable Length
- 76.2 cm
(30 in.)
- Weight
- 90 g
(3.2 oz)
Related Resources
Case Studies

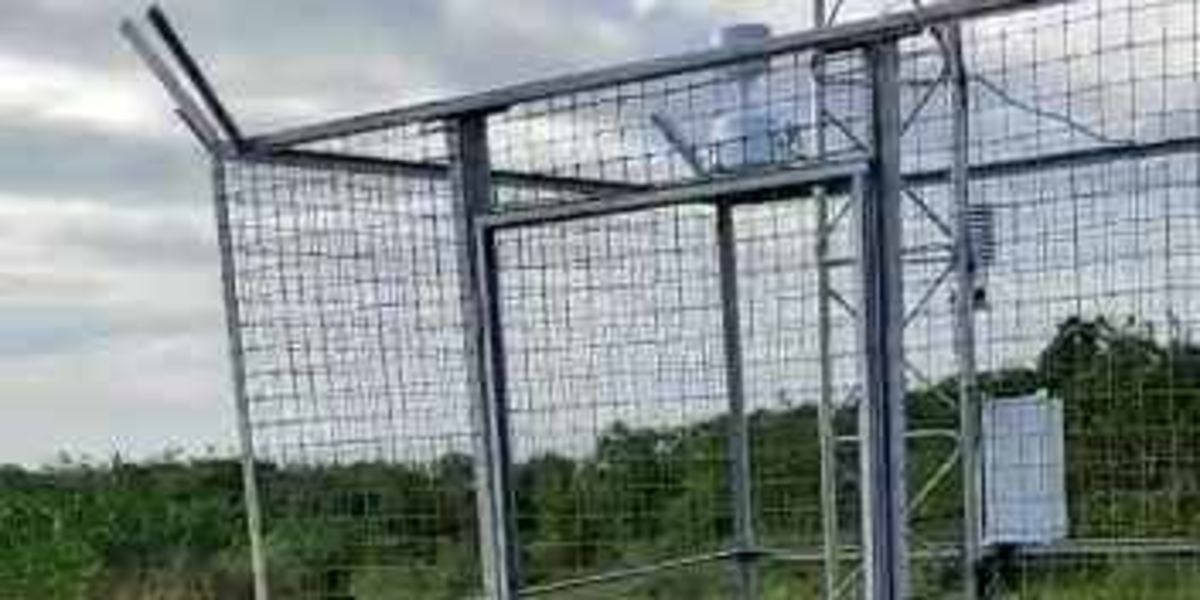

Union of the Comoros: Establishment of Four Weather Stations for Better Resilience to Climatic Hazards
