ENC100
Barometer Enclosure
ENC100
OrderableBarometer Enclosure
Overview

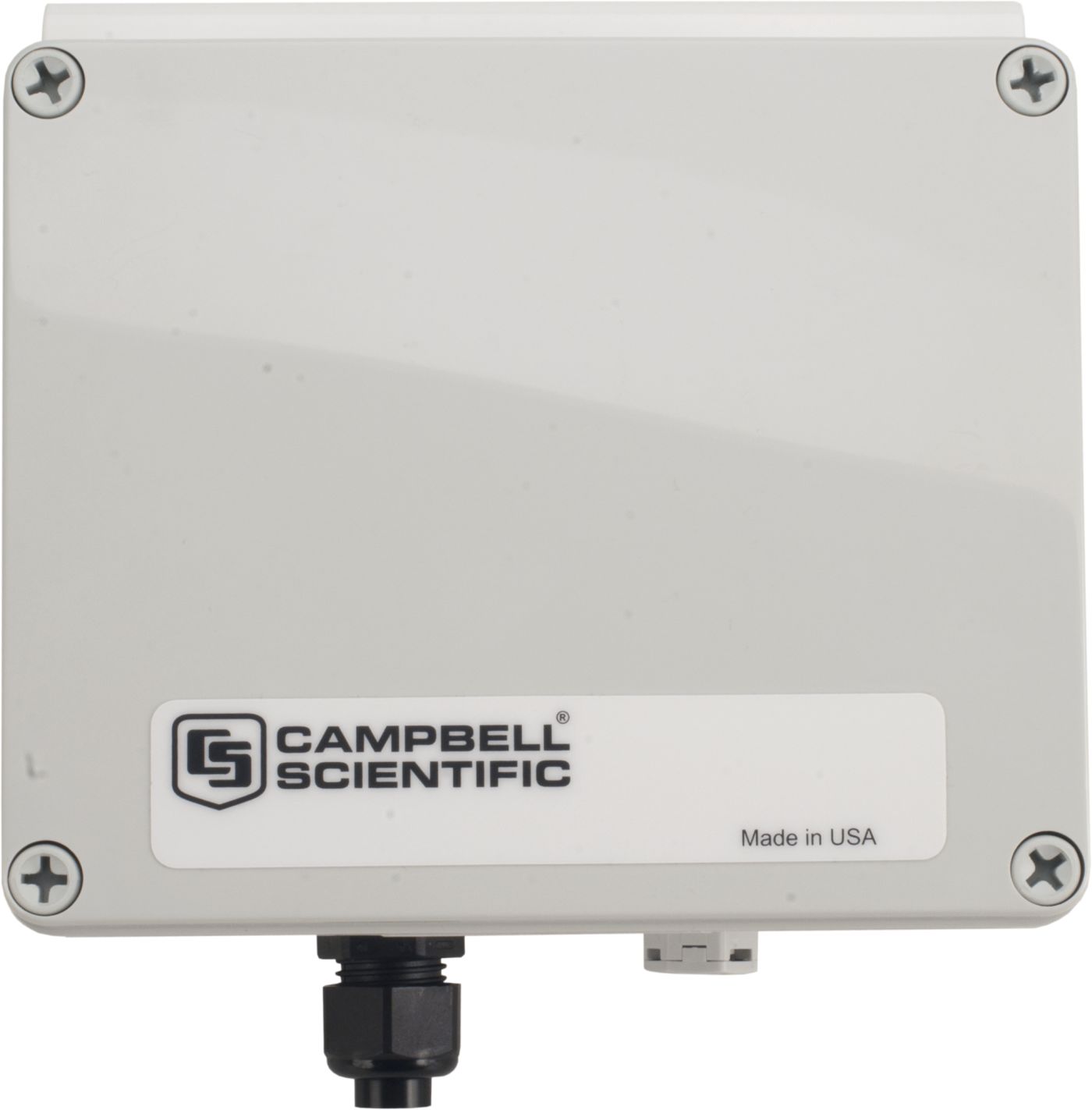

ENC100 Barometer Enclosure
The ENC100 is a small 6.7 by 5.5 in. enclosure designed to hold a barometer. It includes a backplate, compression fitting, vent, and mounting bracket. It may also be compatible with other small sensors or peripherals.
Technical Description
The ENC100 is typically used to house a barometer in its own enclosure. It includes a compression fitting for cable entry, a vent for equalization with the atmosphere, a backplate for mounting the barometer (or other small device), and hardware for mounting the ENC100 to a tripod, tower, or pole.
Benefits
- White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield
Specifications
- Color
- White
- Construction
- Polycarbonate
- Backplate
- Prepunched with one-inch-on-center holes
- Dimensions
- 15.9 x 12.7 x 6.1 cm
(6.25 x 5 x 2.4 in.) internal
- Dimensions
- 17.1 x 14.0 x 9.9 cm
(6.7 x 5.5 x 3.9 in.) external
