CS100
CS100
Out of stockConfigurableBarometric Pressure Sensor
Best for general applications.
Pricing
- Model:
- CS100
- Item Number:
- 39378
- Warranty:
- 3 years
Overview
The CS100 measures barometric pressure for the range of 600 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) up to 12,000 feet above sea level. Designed for use in environmental applications, the CS100 is compatible with all Campbell Scientific data loggers.
Key Advantages
Resides inside a weather-proof enclosure
Technical Description

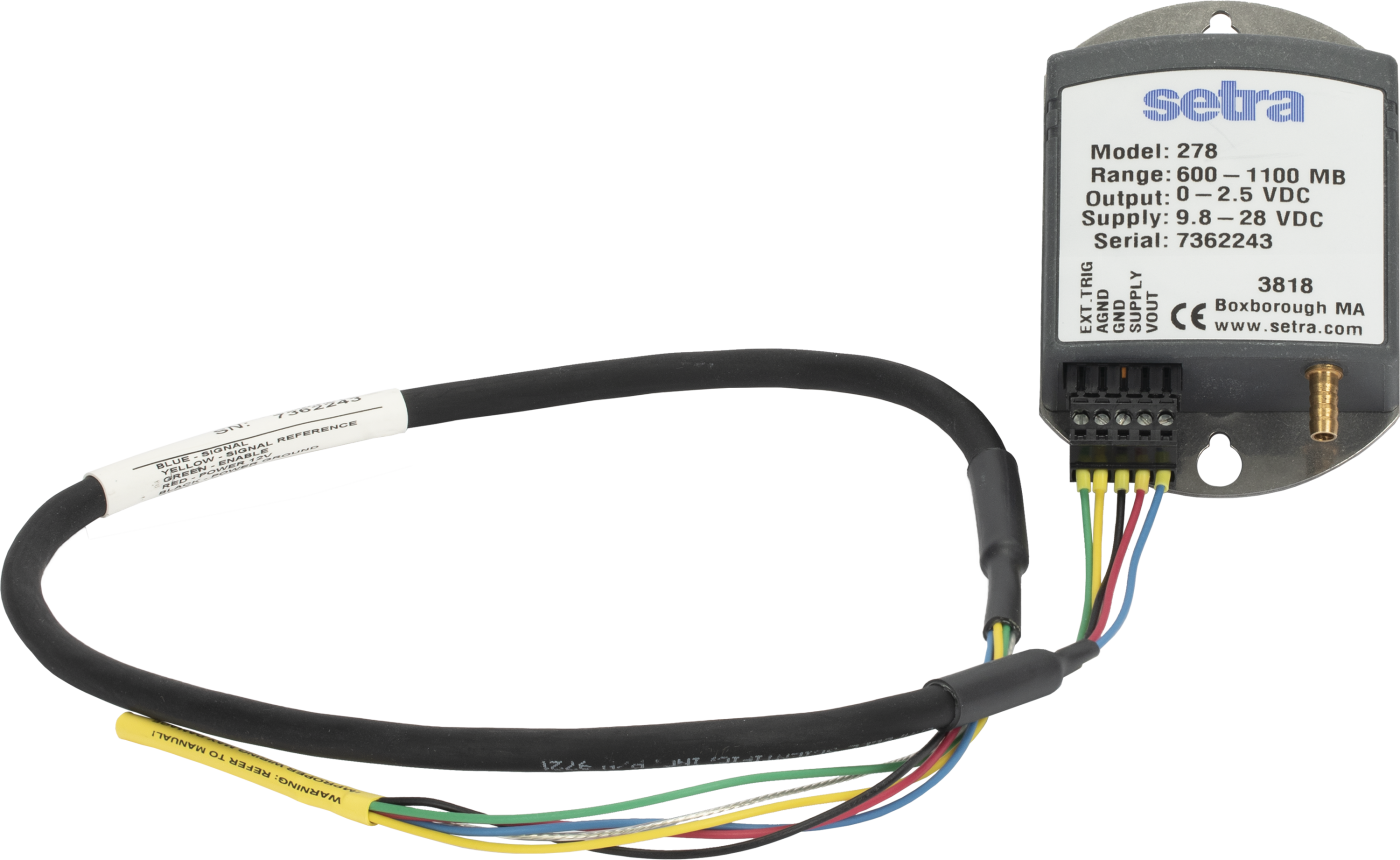

The CS100 is a Campbell Scientific version of Setra's model 278 barometer. It uses Setra’s Setraceram capacitive sensor and IC analog circuit to measure barometric pressure. The CS100 iincludes a 0.76 m (2.5 ft) cable and a terminal strip for data logger power and signal connections.
The CS100 is encased in a stainless-steel and polyester case fitted with an 1/8 in. barbed fitting for pressure connection. It includes an internal switching circuit that allows the data logger to power the barometer only during measurement, which reduces power usage.
Benefits
- Optimized to mount in Campbell Scientific enclosures
- Low power consumption
- Three-year warranty
- 500 to 1100 hPa (mBar) and 800 to 1100 hPa (mBar) versions also available by special order—contact Campbell Scientific
- Integral switching circuit limits power consumption to measurement cycle
Specifications
- Measurement Description
- Barometric pressure
- Signal Type/Output
- Analog voltage
- -NOTE-
- 1 hPa = 1 mBar
- Pressure Range
- 600 to 1100 hPa
- Long-Term Stability
- ±0.1 hPa per year
- Response Time
- < 100 ms
- Resolution
- ±0.01 hPa
- Excitation
- 9.5 to 28 Vdc
- Elevation
- ~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level
- Accuracy
- Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty.
- Accuracy
- ±0.5 hPa
(@ +20°C)
- Accuracy
- ±1.0 hPa
(@ 0° to 40°C)
- Accuracy
- ±1.5 hPa
(@ -20° to +50°C)
- Accuracy
- ±2.0 hPa
(@ -40° to +60°C)
- Linearity
- ±0.4 hPa
- Hysteresis
- ±0.05 hPa
- Repeatability
- ±0.03 hPa
- Signal Output
- 0 to 2.5 Vdc
- Warm-up Time
- < 1 s
- External Trigger Voltage
- 0 Vdc
(sleep mode)
- External Trigger Voltage
- 3 to 28 Vdc
(operating mode)
- Current Consumption
- < 3 mA
(active)
- Current Consumption
- < 1 µΑ
(sleep mode)
- Temperature Range
- -40° to +60°C
- Cable Diameter
- 0.8 cm
(0.3 in.)
- Cable Length
- 0.8 m
(2.5 ft)
- Dimensions
- 9.1 x 6.1 x 2.5 cm
(3.6 x 2.4 x 1.0 in.)
- Weight
- 135 g
(4.8 oz)
