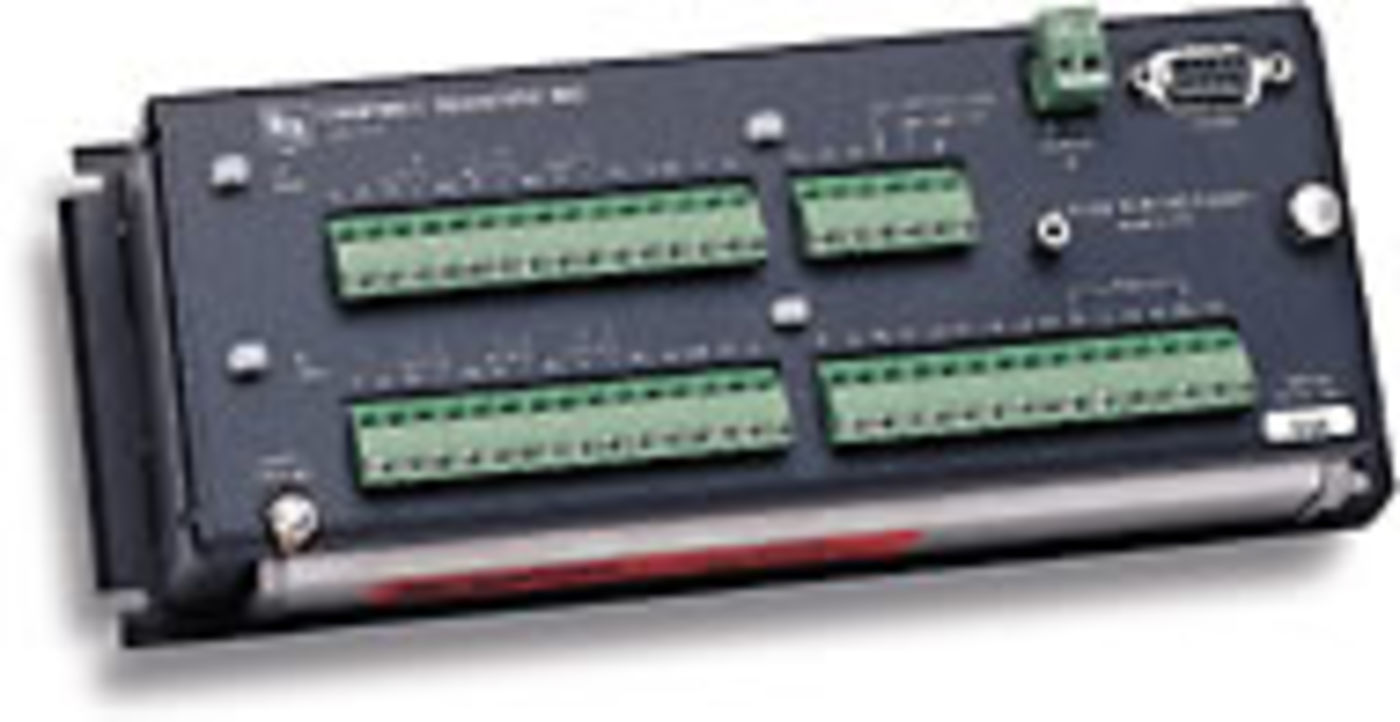

CR10X-2M
CR10X-2M
End of lifeMeasurement and Control Datalogger with 2 M Additional Memory and Wiring Panel
Pricing
- Model:
- CR10X-2M
- Item Number:
- CR10X-2M
- Lead time:
- 21 days
Overview
The CR10X-2M stored up to 1,000,000 data points.
The CR10X-2M provided sensor measurement, timekeeping, data reduction, data/program storage and control functions. Data and programs were stored either in a nonvolatile Flash memory or RAM. A lithium battery backed up the RAM and real-time clock. The CR10X-2M also suspended execution when primary power (BPALK, PS100) dropped below 9.6 V, reducing the possibility of inaccurate measurements.
Technical Description
The CR10X-2M stored up to 1,000,000 data points. The data logger consisted of a CR10XM-2M Measurement and Control Module and black CR10X Wiring Panel.
The CR10X-2M provided sensor measurement, timekeeping, data reduction, data/program storage and control functions. Data and programs were stored either in a nonvolatile Flash memory or RAM. A lithium battery backed up the RAM and real-time clock. The CR10X-2M also suspended execution when primary power (BPALK, PS100) dropped below 9.6 V, reducing the possibility of inaccurate measurements.
The CR10X-2M was removed from our pricing system on 19 April 2007.
Specifications
- Memory
- Up to 1,000,000 data points
- Analog Inputs
- 12 single-ended or 6 differential
(individually configured)
- Pulse Counters
- 2
- Switched Voltage Excitations
- 3
- Control/Digital Ports
- 8
- Serial I/O Port
- 1
- Scan Rate
- 64 Hz
- Burst Mode
- 750 Hz
- Analog Voltage Resolution
- To 0.33 µV
- A/D Bits
- 13
- Programming
- Edlog
- Data Storage
- Mixed Array, Table
- Telecommunications
- PakBus, Modbus, Alert
