CR10XTCR
Thermocouple Reference for CR10X Wiring Panel
CR10XTCR
End of lifeThermocouple Reference for CR10X Wiring Panel
Pricing
- Model:
- CR10XTCR
- Item Number:
- 10758
- Warranty:
- 1 year
Overview
CR10XTCR Thermocouple Reference for CR10X Wiring Panel
Please note, both the CR10X and CR10XTCR have been retired. The CR10XTCR provides a temperature reference for thermocouple measurements.
The CR10XTCR is compatible with the black CR10X wiring panel only (shipped after 21 May 97). Refer to Compatibility for more information.
Technical Description

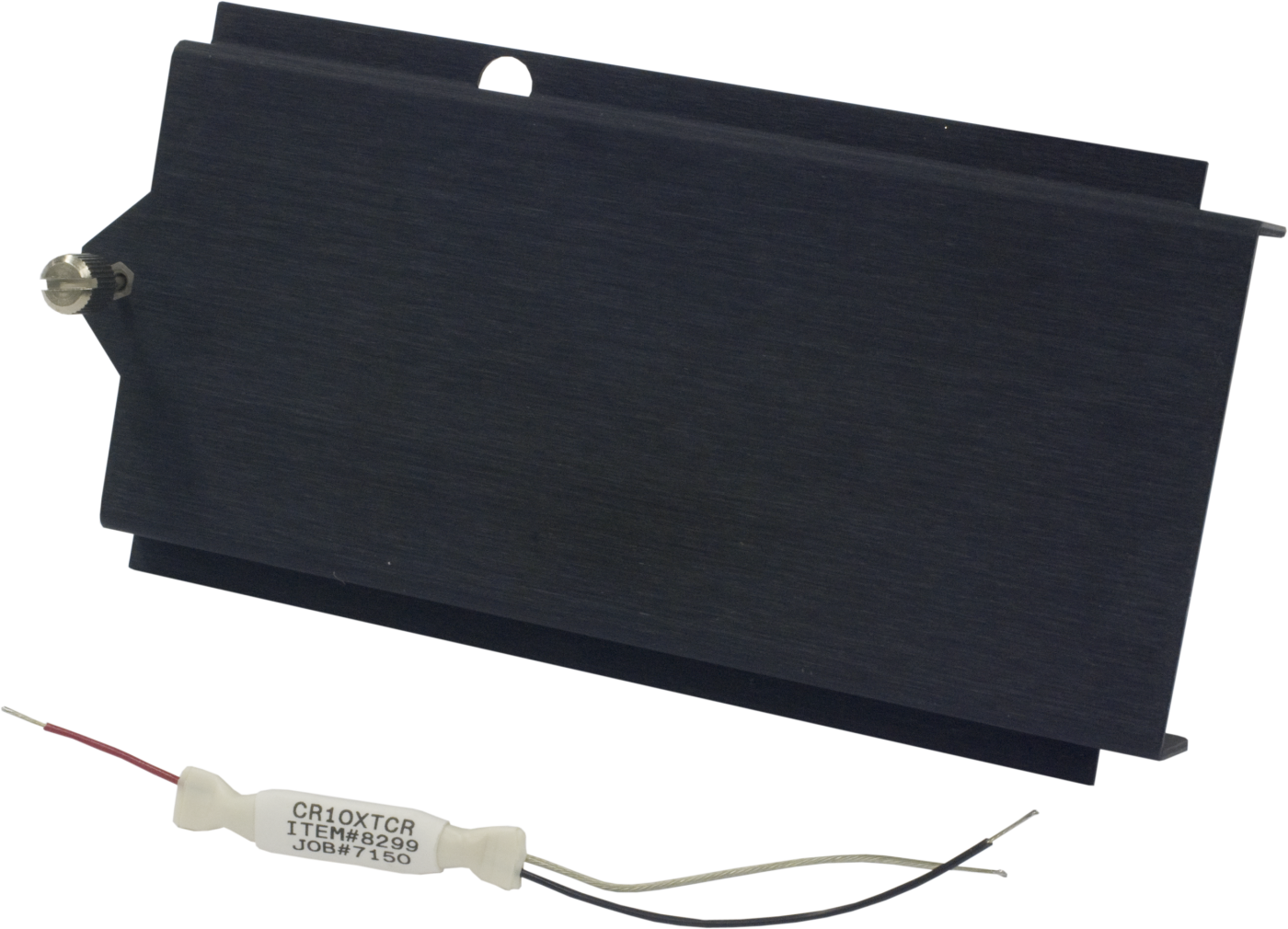

The CR10XTCR provides a temperature reference for thermocouple measurements. Its leads connect directly to channels 1H, E3, and AG on the CR10X Wiring Panel. The thermistor and resistors are attached to a small printed circuit board (pn 8289).
The aluminum thermocouple cover (pn 10630) reduces thermal gradients across the analog inputs.
Specifications
- Temperature Range
- -35° to +50°C
- Typical Polynomial Linearization Accuracy
- < ±0.5°C over full temperature range
- Typical Polynomial Linearization Accuracy
- < ±0.1°C over -24° to +48°C range
- Typical Interchangeability Error
- < ±0.2°C over 0° to 50°C range
(increasing to ± 0.5°C at -40°C)
