COM100
Motorola Analog Cellular Phone Package
COM100
End of lifeMotorola Analog Cellular Phone Package
Pricing
- Model:
- COM100
- Item Number:
- COM100
- Lead time:
- 21 days
Overview

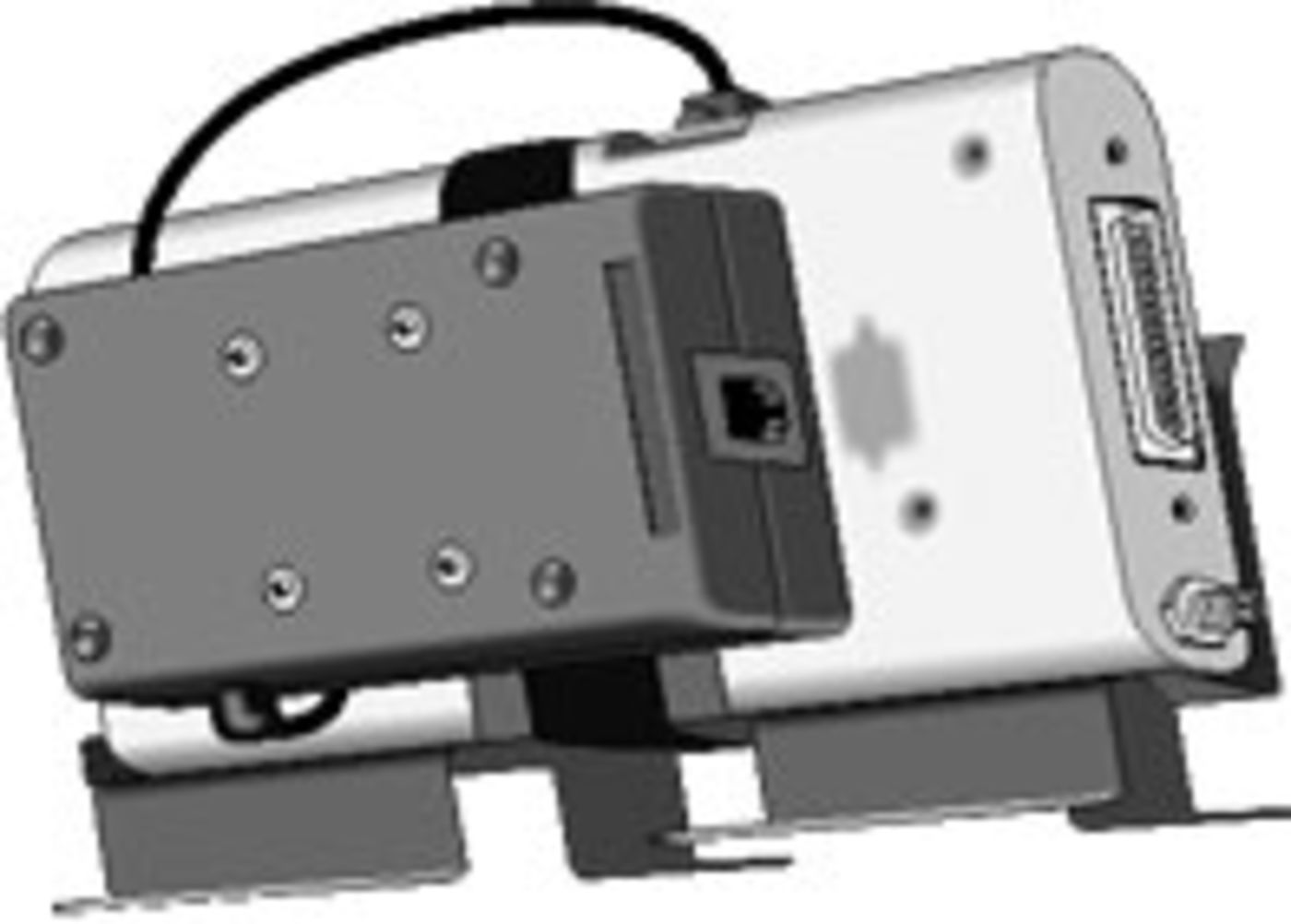

The COM100 was retired because most cellular service providers converted their systems from analog service to digital service. The COM100 Analog Cellular Phone Package consisted of a data transceiver with modem adapter, power switching relay, and 10 feet of antenna cable. A COM210 or COM310 modem was purchased separately based on the application's requirements. Transmission rate was limited to 4800 bps.
Specifications
Motorola AMPS "Bag Phone"
- Operating Temperature
- -30° to +60°C
- Average Current Drain
- < 0.5 mA
(quiescent)
- Average Current Drain
- < 0.17 A
(standby)
- Average Current Drain
- < 1.8 A
(online)
- Supply Voltage
- 10 to 16 Vdc
- RF Power Output
- 3 W
(nominal)
- Transmission Rate
- 4800 bps
Control Relay Crydom D0061B
- Control Voltage
- 1.7 to 9 Vdc
- Control Current
- 15 mA
(@ 5 Vdc)
