ClariVue 10
ClariVue 10
OrderableConfigurableISO 7027-Compliant, Side-Scatter Turbidity Sensor
Side-scatter measurements with ISO 7027 compliance.
Pricing
- Model:
- ClariVue 10
- Item Number:
- 34997
- Warranty:
- 3 years
- Lead time:
- 21 days
Overview

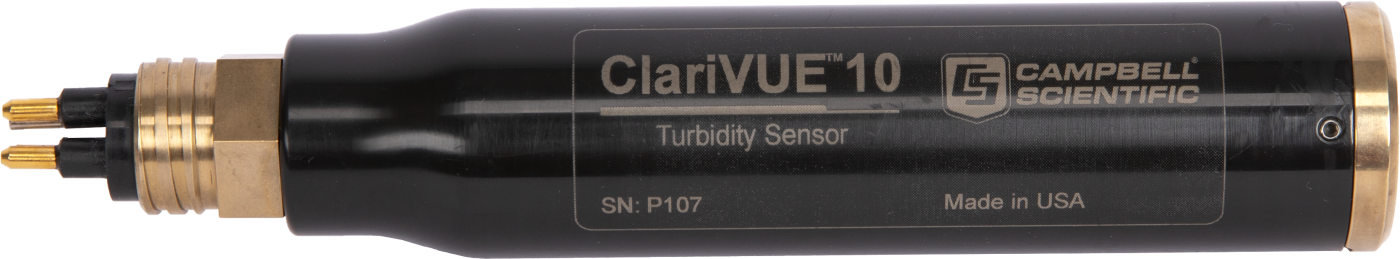

The ClariVue™10 is an ISO 7027 compliant, submersible, side-scatter turbidity sensor. It outputs an SDI-12, digitally processed signal that all modern Campbell Scientific data loggers can measure. The side-scatter turbidity measurement can be used as a surrogate for suspended sediment concentration in aquatic ecosystems.
Key Advantages
Technical Description
The ClariVue 10 is an ISO 7027-compliant, side-scatter turbidity sensor. It returns data via SDI-12 to a data logger. Turbidity is a common surrogate measurement for suspended sediment concentration in aquatic systems. The ClariVue 10 is designed to operate in fresh and saline environments. It will require regular maintenance to keep the optical window clean in high bio-fouling environments. The face of the sensor is made from copper to slow biological growth over the optical windows.
Benefits
- Measures suspended solids and turbidity for up to 4000 FNUs
- Provides a compact, low-power probe that is field proven
- Compatible with modern Campbell Scientific data loggers
- Accurate and rugged
Specifications
- Standards
- Meets ISO 7027-1:2016 (side scatter) standard for turbidity measurements.
- Compliance
- SDI-12 v1.4 compliant
- Operating Temperature Range
- -2° to +40°C
- Measurement Range
- 0 to 4000 FNU
- Resolution
- 0.2 FNU
- Accuracy
- ±2% or 0.5 FNU
(whichever is greater)
- Power Requirements
- 9.6 to 18 Vdc
- Measurement Time
- 9 s
(with an M! instruction)
- Housing Material
- Delrin® plastic
- Head Material
- Marine-grade bronze
- Optics
- Sapphire lens
- Connector Descriptions
- Marine-grade bronze, gold-plated pins
- Connector Description
- Bronze 3-pin wet-mate
- Cable Type
- 3-conductor, polyurethane jacket with water block
- Optical Assembly
- Sealed with double O-rings
- Temperature Accuracy
- ±0.2°C
- Maximum Submersion Depth
- 30.48 m
(100 ft) for the plastic
- Sensor Diameter
- 30.1 mm
(1.185 in.)
- Sensor Length
- 166 mm
(6.54 in.)
- Sensor Weight
- 158.76 g
(0.35 lb)
Power Consumption
- Quiescent
- < 300 µA
- Measurement
- < 35 mA
