CC640
CC640
End of lifeDigital Camera
Pricing
- Model:
- CC640
- Item Number:
- 18286
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

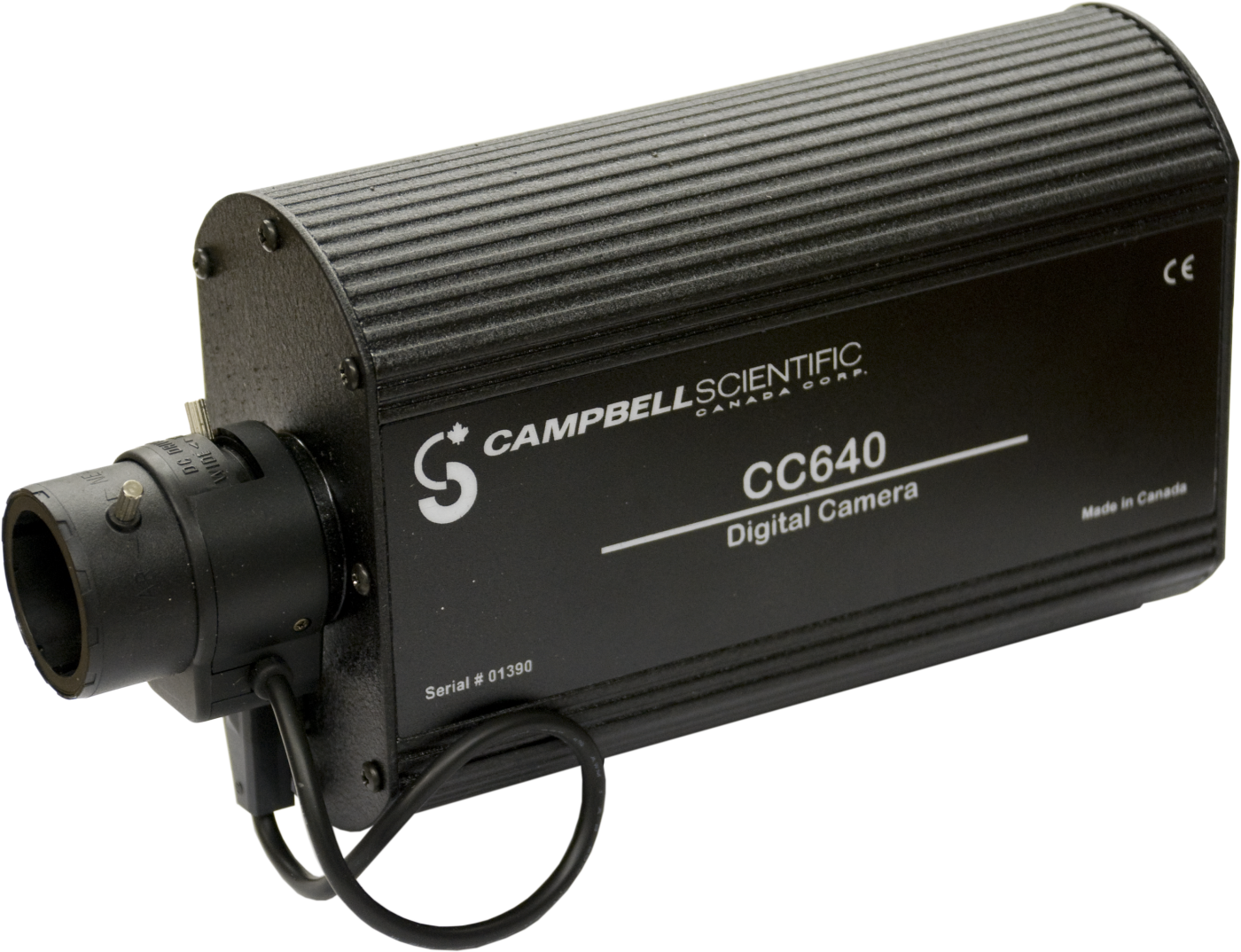

The CC640 camera is designed and built to withstand harsh, remote conditions. It operates at temperatures as low as -40°C. It can operate as a stand-alone camera or it can be connected to one of our data loggers. The camera can store images on a CompactFlash card or transmit them to a data logger.
Technical Description
The CC640 is a digital camera for use in harsh environments. Where typical cameras cannot withstand cold temperatures, our CC640 digital camera operates at temperatures as low as -40°C!
The CC640 can be used by itself as a stand-alone camera or can be connected to one our data loggers. The data logger can trigger an image acquisition by applying a 5- to 12-volt signal. When used independently, the camera's precision real-time clock can be used to trigger an image capture.
Images can be stored on a CompactFlash card or in the data logger's memory. The images are stored in a .jpg format.
Benefits
- Stores images in standard .jpg format
- Onboard slot for CompactFlash card
- Can be controlled by data logger or by internal timer
Specifications
- Lens Description
- F1.4 3.5 to 8 mm Varifocal Lens with Electronic Iris
- Image Type
- JPEG
- Resolution
- 640 x 480
(307,200 pixels)
- Resolution
- 604 x 504
(with time stamp)
- Power
- 9 to 15 Vdc
- Communication Ports
- RS-232, RS-485 (labeled external I/O), CS I/O
- Maximum Baud Rate
- 230 kbps
(RS-232, RS-485)
- Maximum Baud Rate
- 76.8 kbps
(CS I/O)
- CS I/O CSDC Addresses
- 7 or 8
- Video Output
- NTSC, PAL
- Logic Low-Level External Input Signal
- 0 to 0.7 Vdc
(-12 Vdc absolute minimum)
- Logic High-Level External Input Signal
- 4 to 15 Vdc
(15 Vdc absolute maximum)
- Clock Accuracy
- ±1 minute/year
(0° to 40°C)
- Clock Accuracy
- ±4 minute/year
(-40° to +70°C)
- Time to Take Image
- ~10 s
- Operating Temperature
- -40° to +70°C
- Dimensions
- 21.5 x 6.5 x 11.0 cm
(8.5 x 2.6 x 4.3 in.)
- Weight
- 500 g
(1.1 lb)
Current Drain
- Operating
- 250 mA
(maximum)
- Quiescent
- 250 μA
(typical)
Memory Card
- Type
- CompactFlash
- File System
- FAT16
- Storage
- 2 GB or less
