End of lifeConfigurableALERT2 Encoder
Designed for use with the AL205B base station and AL205R repeater.
Pricing
Configuration
Sign in for option pricing- w/Maxon Transmit CBL (Ships as 35716 & 35705)AL205E-MT
- w/Ritron Transmit CBL (Ships as 35716 & 35706)AL205E-RT
Select a configuration to add to your quote
- Model:
- AL205E
- Item Number:
- AL205E
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

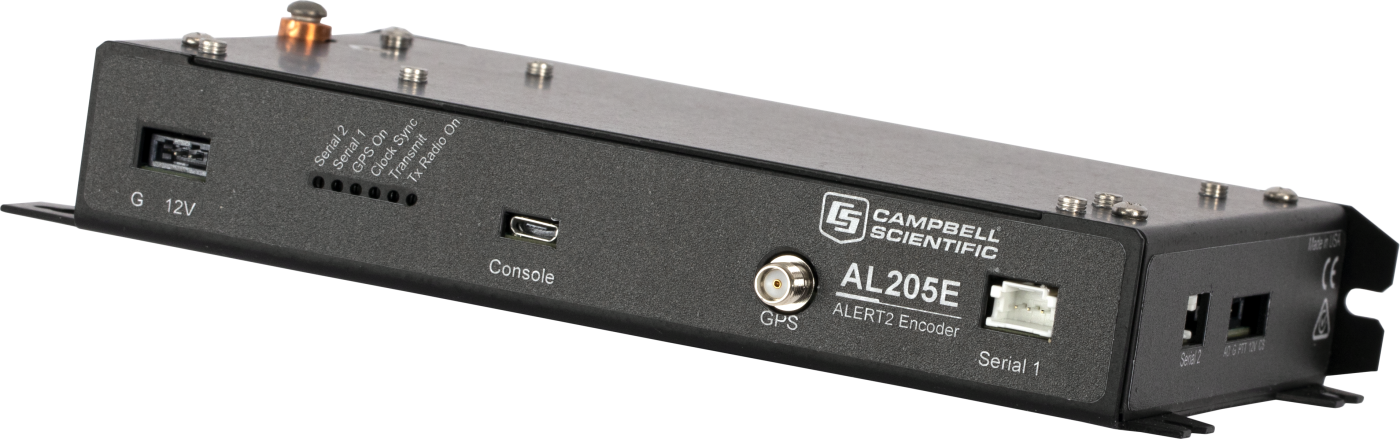

The AL205E is a low-power ALERT2 encoder/transmitter with one radio output port for data transmission (TX only). With its two serial ports, input from several devices is possible—including from a data logger. Connection to a data logger enables the acquisition and transmission of hydrometeorological measurements. Local administration is possible through the micro USB console. The GPS functionality provides the required time synchronization needed for TDMA transmissions, and the LEDs offer status and activity indications. The AL205E is firmware-upgradeable.
Note: ALERT2 is a trademark of the National Hydrologic Warning Council.
Key Advantages
Acquire and transmit encrypted hydrometeorological measurements
Benefits
- ALERT2 flood warning network compatible
- Forward error correction (FEC)
- 250 ms TDMA slotting
- Low power
- Selectable modulation output power levels
- Works easily with Maxon and Ritron radios
- Meets published ALERT2 Working Group Standards
Specifications
- Operating Temperature Range
- -40° to +80°C
- Power Connector
- 2 pin, spring clip
- Power Supply
- 9 to 17 Vdc
(reverse polarity protected)
- Current Drain at 12 Vdc
- 1.4 mA
(normal operation, no LEDs, no external connections)
- Current Drain at 12 Vdc
- ~34 mA
(GPS searching)
- Current Drain at 12 Vdc
- ~29 mA
(GPS locked)
- Current Drain at 12 Vdc
- ~1 mA each LED
(disabled via jumper)
- Current Drain at 12 Vdc
- ~1.5 mA
(each connected serial port)
- Current Drain at 12 Vdc
- ~17 mA
(during message transmission)
- TX Radio Modulation Voltage
- 2 preconfigured values, selected via jumper
(for use with Ritron or Maxon radios)
- TX Radio Modulation Voltage
- User-adjustable level via potentiometer
- Clock Synchronization
- GPS
- Clock Drift
- 2 ppm
(0 to 40°C)
- Clock Drift
- 3.5 ppm
(-40 to +80°C)
- RS-232
- 2 ports
- RS-232
- Custom 3-pin cable
- RS-232
- 1200 to 57,600 bps
- LEDs
- 5 status LEDs for Serial 2, Serial 1, GPS On, Clock Sync, Transmit, TX Radio On
- Active GPS Antenna
- SMA, female
- TX Radio
- 5 pin, spring clip
(power, ground, push-to-talk, data, channel select)
- Certifications
- FCC Part 15 Class A certified
- Dimensions
- 19.05 x 10.16 x 3.18 cm
(7.5 x 4 x 1.25 in.)
- Weight
- 600 g
(1.3 lb)
