AL205-Series RS-232 Cable
35718
OrderableAL205-Series RS-232 Cable
Overview
ACC AL205 Series RS-232 Cable, 0.3m (1ft)

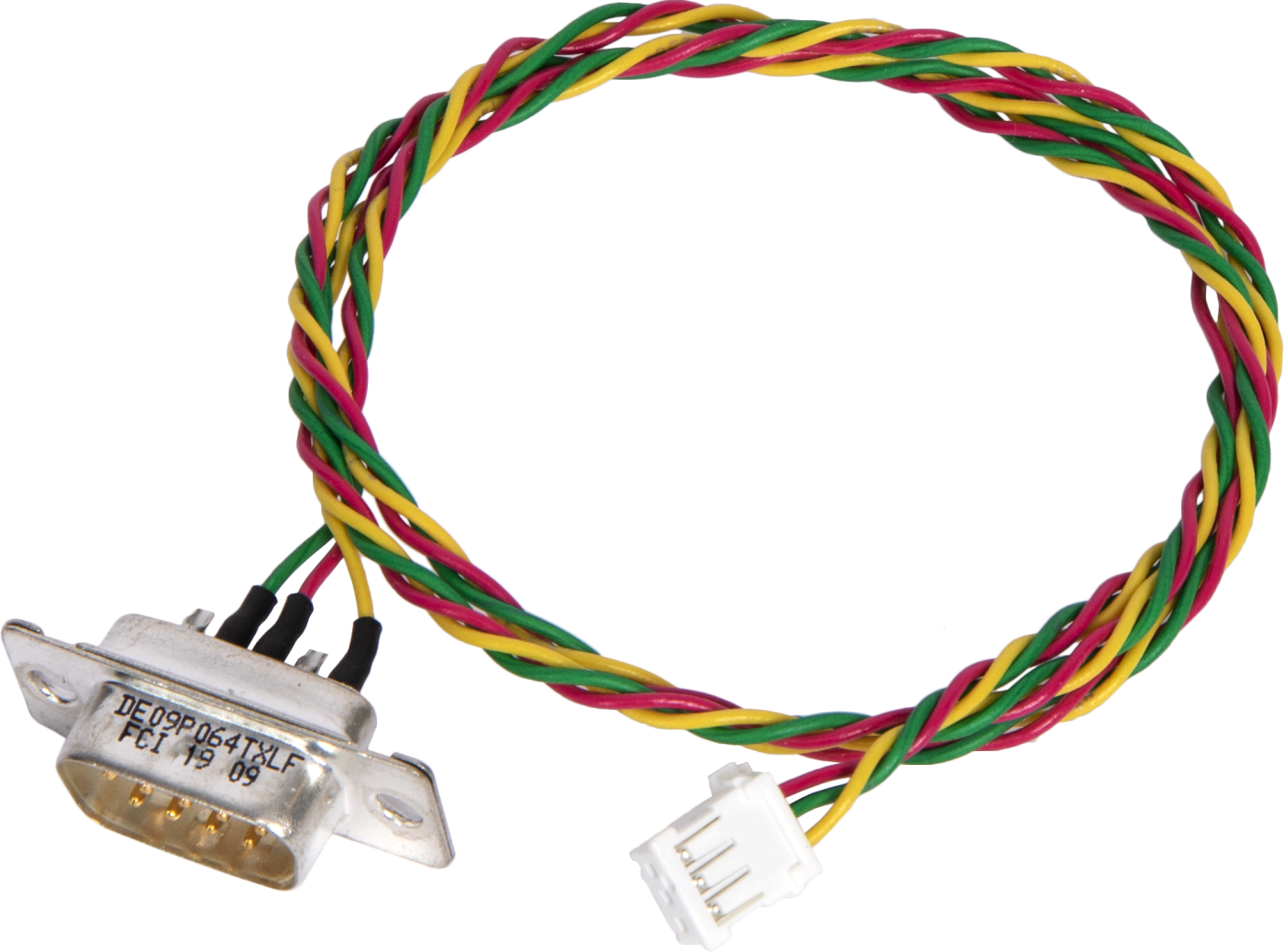

The 35718 is a serial cable that is useful for connecting the RS-232 port of an AL205B or AL205R to the nine-pin RS-232 port of a computer. The cable is 30.48 cm (12 in.) long.
Technical Description
Pinout Description:
- Pin 1: TX out of AL205, Red 2
- Pin 2: Rx out of AL205, Green 3
- Pin 3: GND, Black 5
- Pin 4: No Connect, 1, 3, 4, 6, 7, 8, and 9
Specifications
- Connectors
- Female DB9 4-pin header
- Cable Type
- Discrete
- Length
- 30.48 cm
(12 in.)
