DIN Rail Terminal Kit with 7 Terminals and 17 Wires
39145
OrderableDIN Rail Terminal Kit with 7 Terminals and 17 Wires
Overview

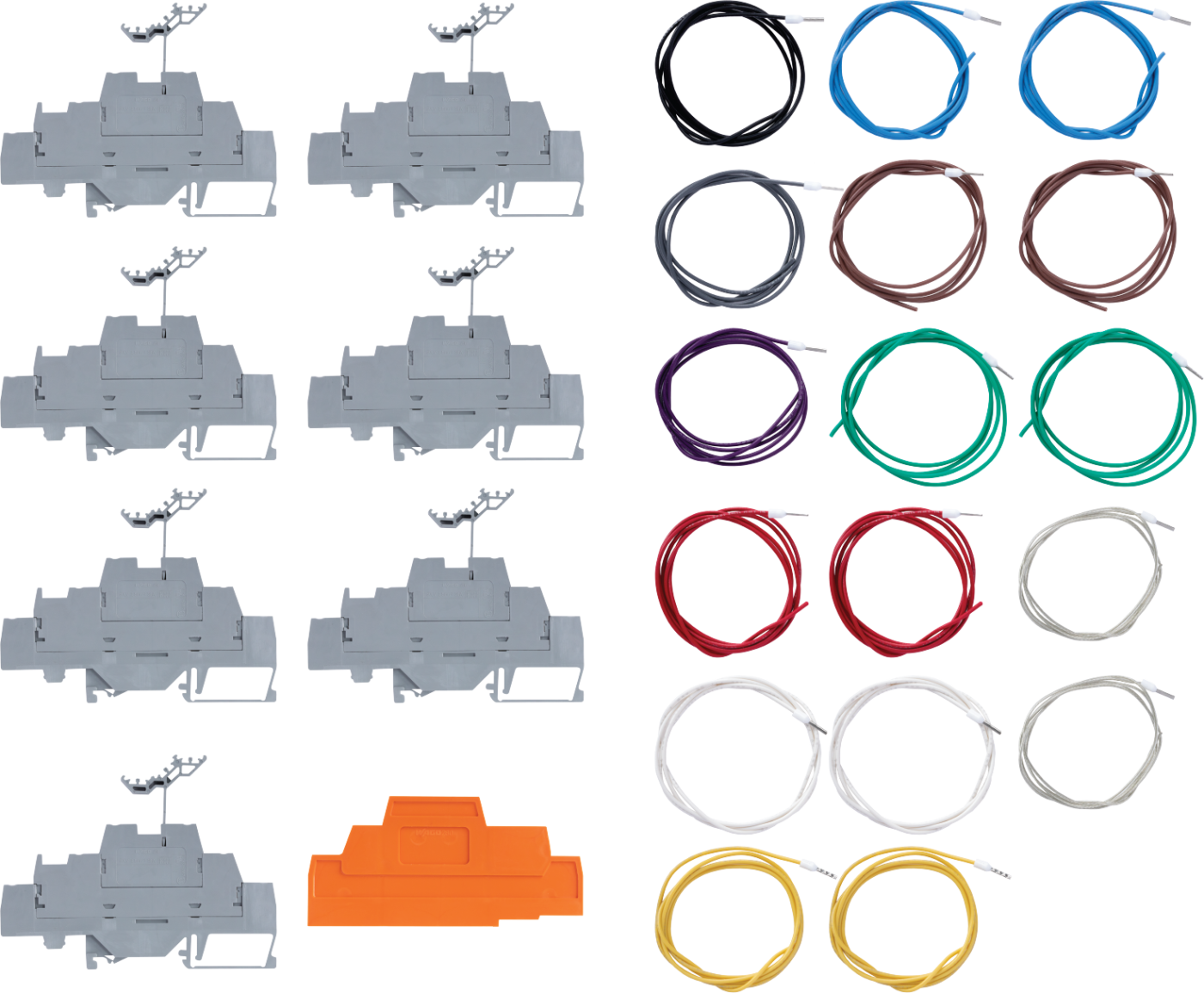

ENC ACC Din Rail Terminal Kit Containing 7 21329 Terminals, 1 End Cover w/Black, 2 Light Blue, 2 Brown, Gray, 2 Green, Purple, 2 Red, 2 White, 2 Yellow, & 2 Clear Wires
The 39145 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires 17 wires for connection. This kit provides the following wires: black, light blue (2), gray, brown (2), purple, green (2), red (2), clear (2), white (2), and yellow (2). The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Specifications
- Terminal Connector(s) Included
(pn 21329)
- Insulator Included
- One
- Color-Coded Wires Included
- Black
- Color-Coded Wires Included
- Light blue
(quantity of 2)
- Color-Coded Wires Included
- Gray
- Color-Coded Wires Included
- Brown
(quantity of 2)
- Color-Coded Wires Included
- Purple
- Color-Coded Wires Included
- Green
(quantity of 2)
- Color-Coded Wires Included
- Red
(quantity of 2)
- Color-Coded Wires Included
- Clear
(quantity of 2)
- Color-Coded Wires Included
- White
(quantity of 2)
- Color-Coded Wires Included
- Yellow
(quantity of 2)
- Space Required for Use on Mounting Bracket
- 3.76 cm
(1.48 in.)
- Wire Description
- Ferrule on one end and cut on the other end
- Wire Length
- 76.2 cm
(30.0 in.) each
- Weight
- 181.4 g
(0.4 lb)
