DIN Rail Terminal Kit with 6 Terminals and 17 Wires
39144
OrderableDIN Rail Terminal Kit with 6 Terminals and 17 Wires
Overview

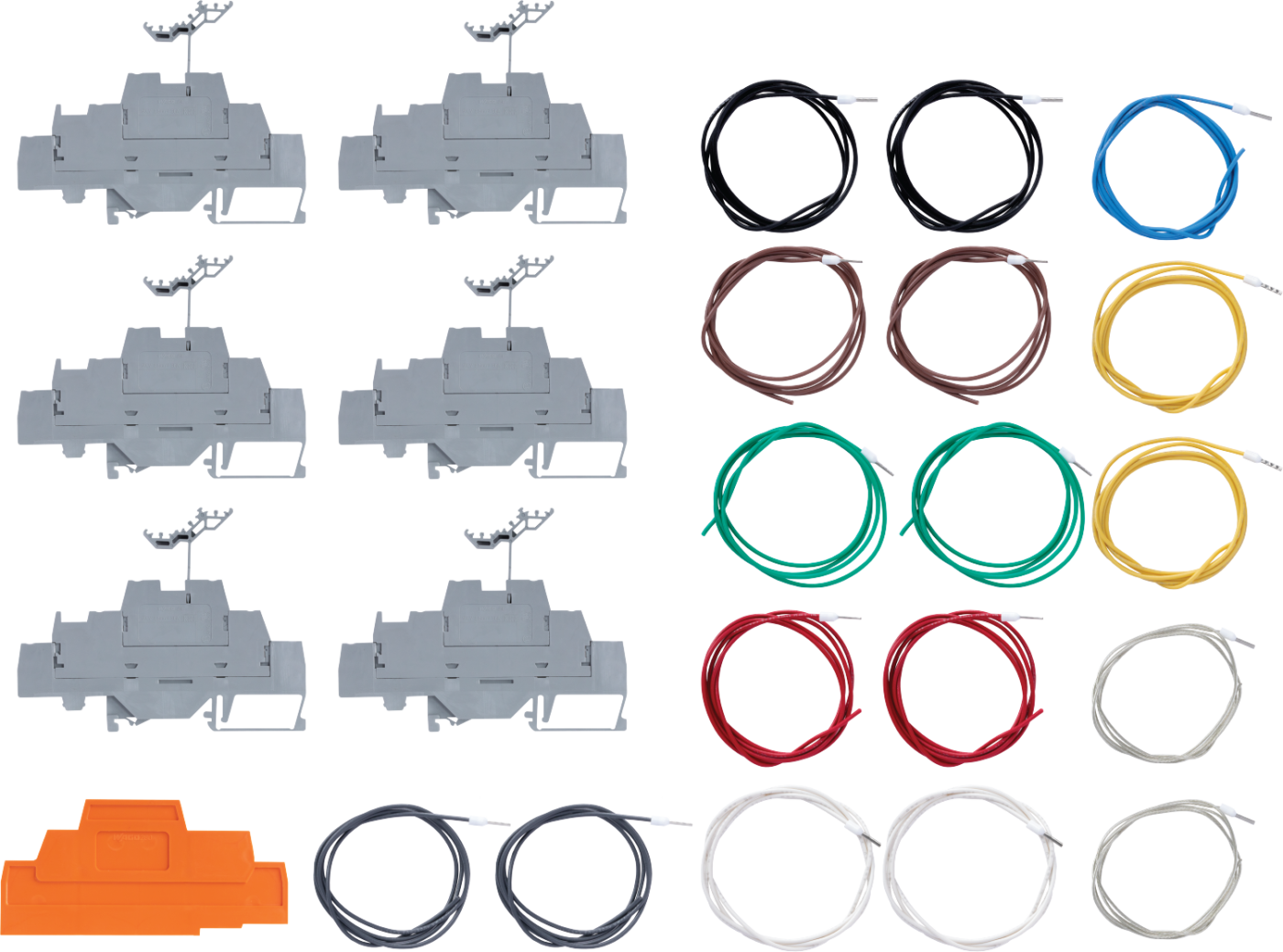

ENC ACC Din Rail Terminal Kit Containing 6 21329 Terminals, 1 End Cover w/2 Black, Light Blue, 2 Brown, 2 Gray, 2 Green, 2 Red, 2 White, 2 Yellow, & 2 Clear Wires
The 39144 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires 17 wires for connection. This kit provides the following wires: black (2), light blue, brown (2), yellow (2), green (2), red (2), clear (2), gray (2), and white (2). The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Specifications
- Terminal Connector(s) Included
(pn 21329)
- Insulator Included
- One
- Color-Coded Wires Included
- Black
(quantity of 2)
- Color-Coded Wires Included
- Light blue
- Color-Coded Wires Included
- Brown
(quantity of 2)
- Color-Coded Wires Included
- Yellow
(quantity of 2)
- Color-Coded Wires Included
- Green
(quantity of 2)
- Color-Coded Wires Included
- Red
(quantity of 2)
- Color-Coded Wires Included
- Clear
(quantity of 2)
- Color-Coded Wires Included
- Gray
(quantity of 2)
- Color-Coded Wires Included
- White
(quantity of 2)
- Space Required for Use on Mounting Bracket
- 3.25 cm
(1.28 in.)
- Wire Description
- Ferrule on one end and cut on the other end
- Wire Length
- 76.2 cm
(30.0 in.) each
- Weight
- 158.76 g
(0.35 lb)
