DIN Rail Terminal Kit with 4 Terminals and 10 Wires
39143
OrderableDIN Rail Terminal Kit with 4 Terminals and 10 Wires
Overview

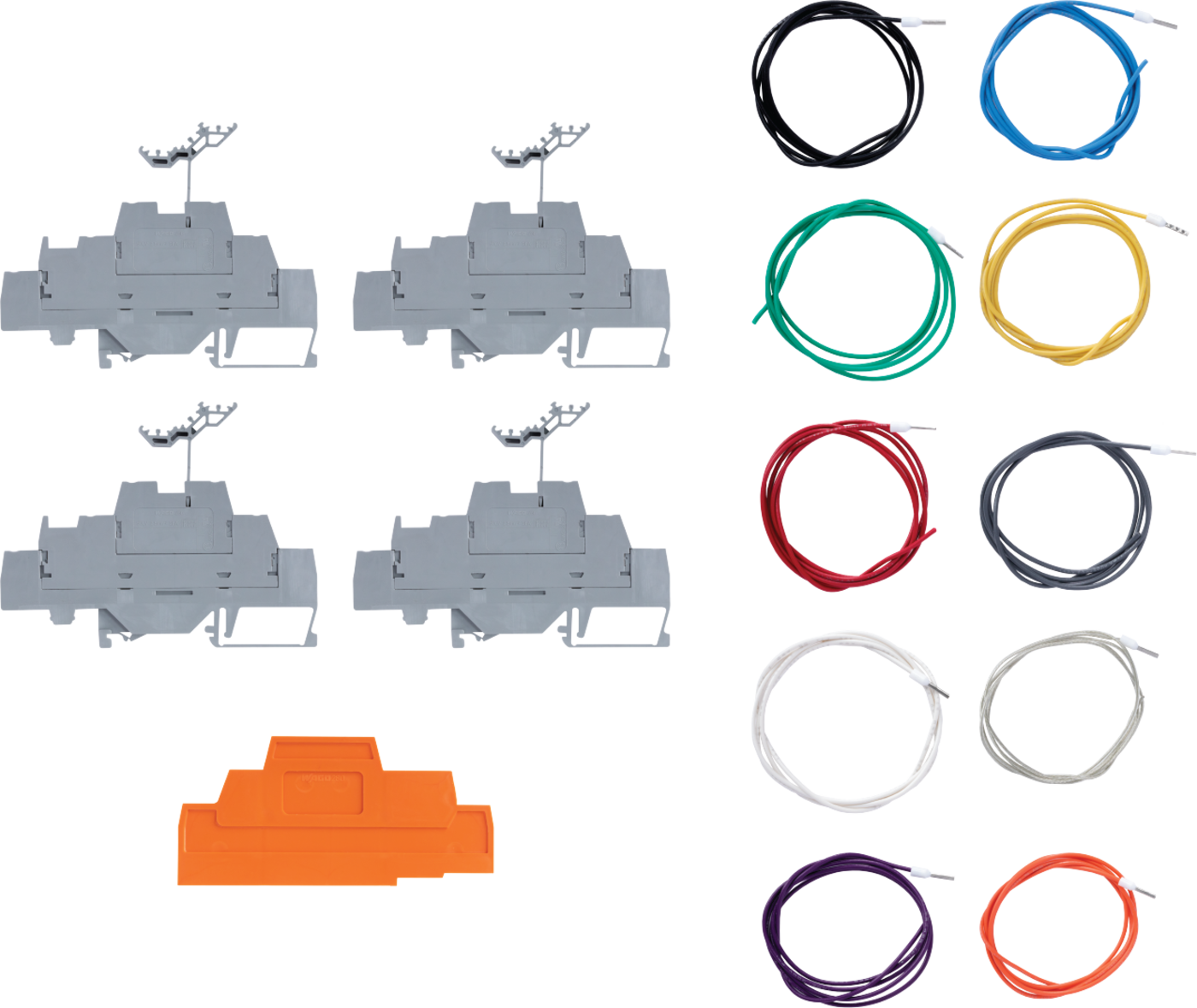

ENC ACC Din Rail Terminal Kit Containing 4 Terminals, 1 End Cover w/Black, Light Blue, Gray, Green, Orange, Purple, Red, White, Yellow, & Clear Wires
The 39143 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires 10 wires for connection. This kit provides the following wires: black, light blue, green, yellow, red, gray, white, clear, purple, and orange. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Specifications
- Terminal Connector(s) Included
(pn 21329)
- Insulator Included
- One
- Color-Coded Wires Included
- Black
- Color-Coded Wires Included
- Light blue
- Color-Coded Wires Included
- Green
- Color-Coded Wires Included
- Yellow
- Color-Coded Wires Included
- Red
- Color-Coded Wires Included
- Gray
- Color-Coded Wires Included
- White
- Color-Coded Wires Included
- Clear
- Color-Coded Wires Included
- Purple
- Color-Coded Wires Included
- Orange
- Space Required for Use on Mounting Bracket
- 2.26 cm
(0.89 in.)
- Wire Description
- Ferrule on one end and cut on the other end
- Wire Length
- 76.2 cm
(30.0 in.) each
- Weight
- 113.4 g
(0.25 lb)
