39134
DIN Rail Terminal Kit with 3 Terminals and 3 Wires
39134
OrderableDIN Rail Terminal Kit with 3 Terminals and 3 Wires
Overview

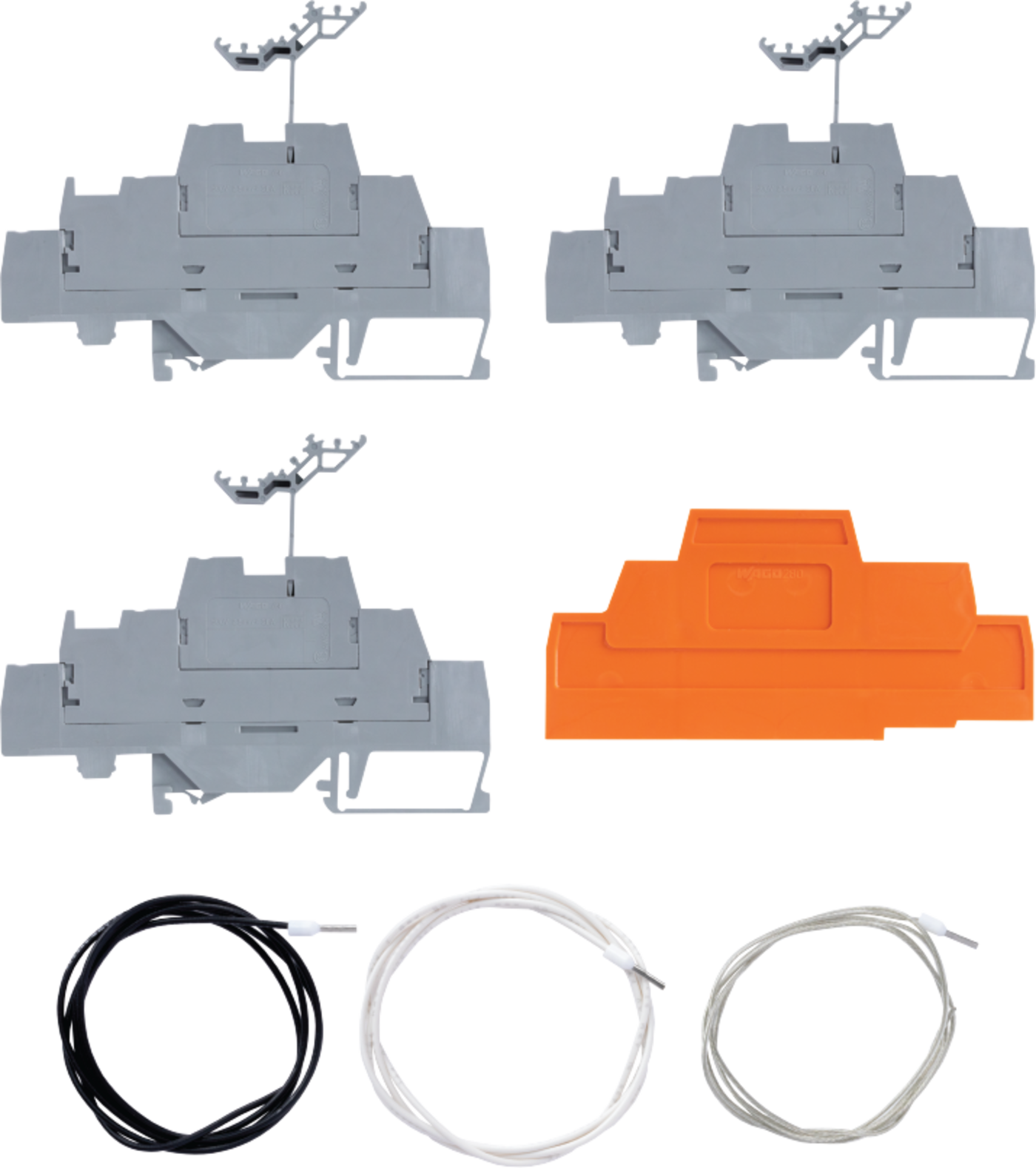

ENC ACC Din Rail Terminal Kit Containing 3 Terminals, 1 End Cover w/Black, White, & Clear Wires
The 39134 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires three wires for connection. This kit provides the following wires: black, white, and clear. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Specifications
- Terminal Connector(s) Included
(pn 21329)
- Insulator Included
- One
- Color-Coded Wires Included
- Black
- Color-Coded Wires Included
- White
- Color-Coded Wires Included
- Clear
- Space Required for Use on Mounting Bracket
- 1.75 cm
(0.69 in.)
- Wire Description
- Ferrule on one end and cut on the other end
- Wire Length
- 76.2 cm
(30.0 in.) each
- Weight
- 68.04 g
(0.15 lb)
