39128

Name: 39128
Brand: Campbell Scientific
SKU: 39128
Availability: InStock

DIN Rail Terminal Kit with 2 Terminals and 6 Wires

39128

Orderable

DIN Rail Terminal Kit with 2 Terminals and 6 Wires

Pricing

Qty

Model:: 39128
Item Number:: 39128
Warranty:: 1 year
Lead time:: 21 days

Overview

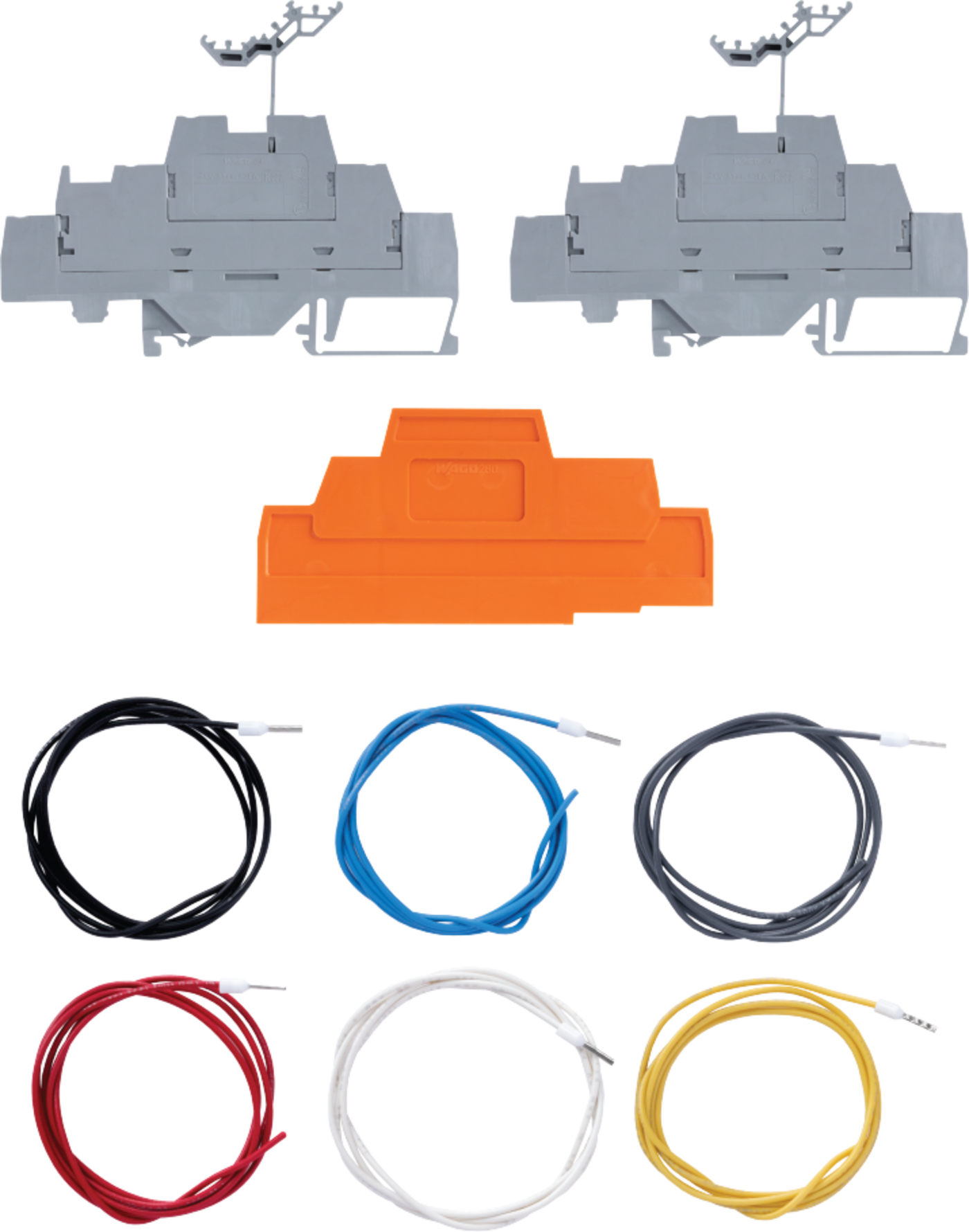

ENC ACC Din Rail Terminal Kit Containing 2 Terminals, 1 End Cover w/Black, Light Blue, Gray, Red, White, & Yellow Wires

The 39128 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires six wires for connection. This kit provides the following wires: black, light blue, gray, red, white, and yellow. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.

Specifications

Terminal Connector(s) Included: Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector
(pn 21329)
Insulator Included: One
Color-Coded Wires Included: Black
Color-Coded Wires Included: Light blue
Color-Coded Wires Included: Gray
Color-Coded Wires Included: Red
Color-Coded Wires Included: White
Color-Coded Wires Included: Yellow
Space Required for Use on Mounting Bracket: 1.25 cm
(0.49 in.)
Wire Description: Ferrule on one end and cut on the other end
Wire Length: 76.2 cm
(30.0 in.) each
Weight: 68.04 g
(0.15 lb)
