29553
Surge Suppressor, Type N Socket (Female), Bulkhead Mounting Grounding Cable
29553
OrderableSurge Suppressor, Type N Socket (Female), Bulkhead Mounting Grounding Cable
Overview
SUB Surge Suppressor Type N Female Bulkhead Mounting Grounding Cable, 0.6m (2ft)

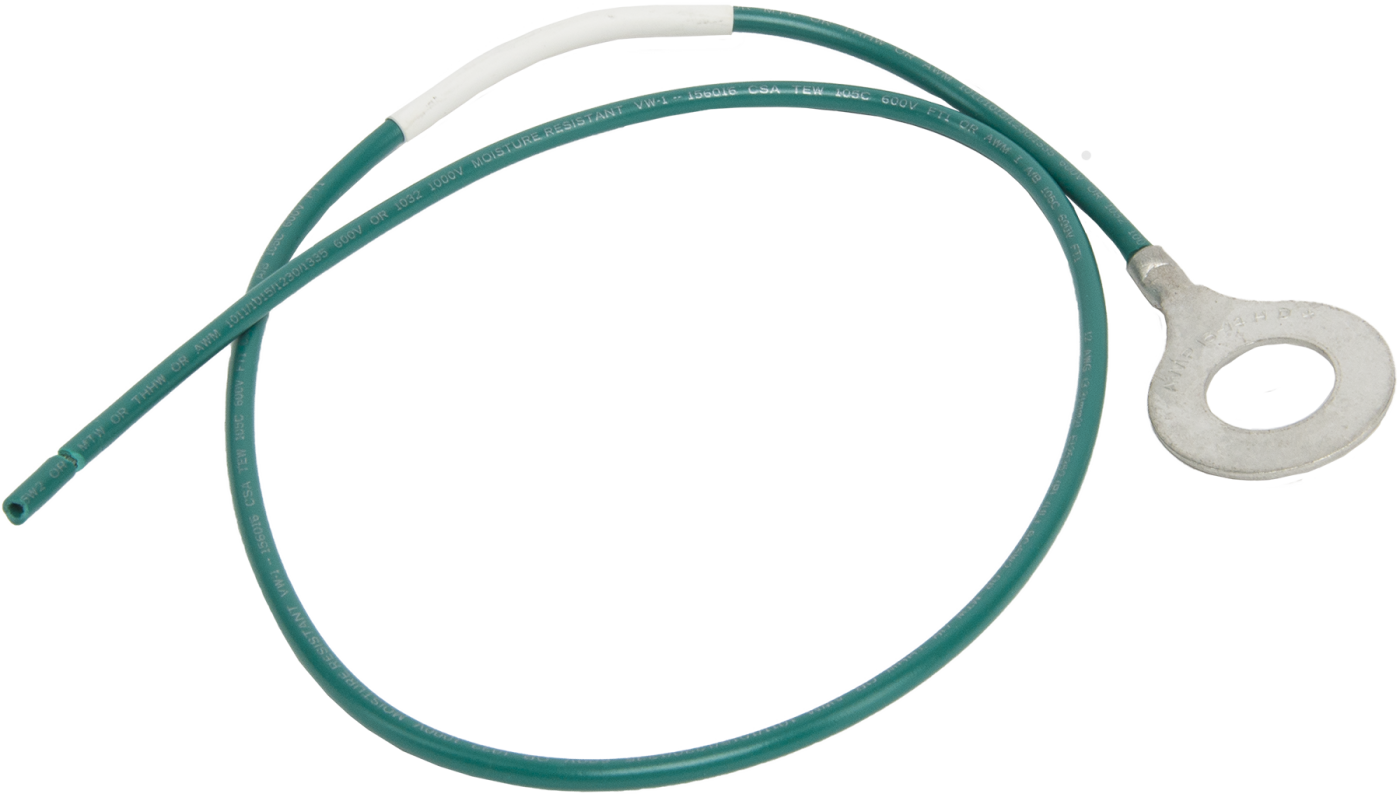

The 29553 is a ground lug and wire assembly used to ground our RF surge and bulkhead fitting products. The 24 in., 12 AWG, stranded wire is terminated on one end with a 5/8 in. ring lug. The lug is positioned between the RF connector and the enclosure wall, or the lug is secured using the nut and lock washer supplied with the RF connector.
Specifications
- Wire Type
- 12 AWG stranded with PVC jacket
- Connector
- 5/8 crimp ring lug, soldered
- Length
- 61 cm
(24 in.)
- Weight
- 36.29 g
(0.08 lb)
