200P
RetiredWind Direction Sensor
Pricing
- Model:
- 200P
- Item Number:
- 17800
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview

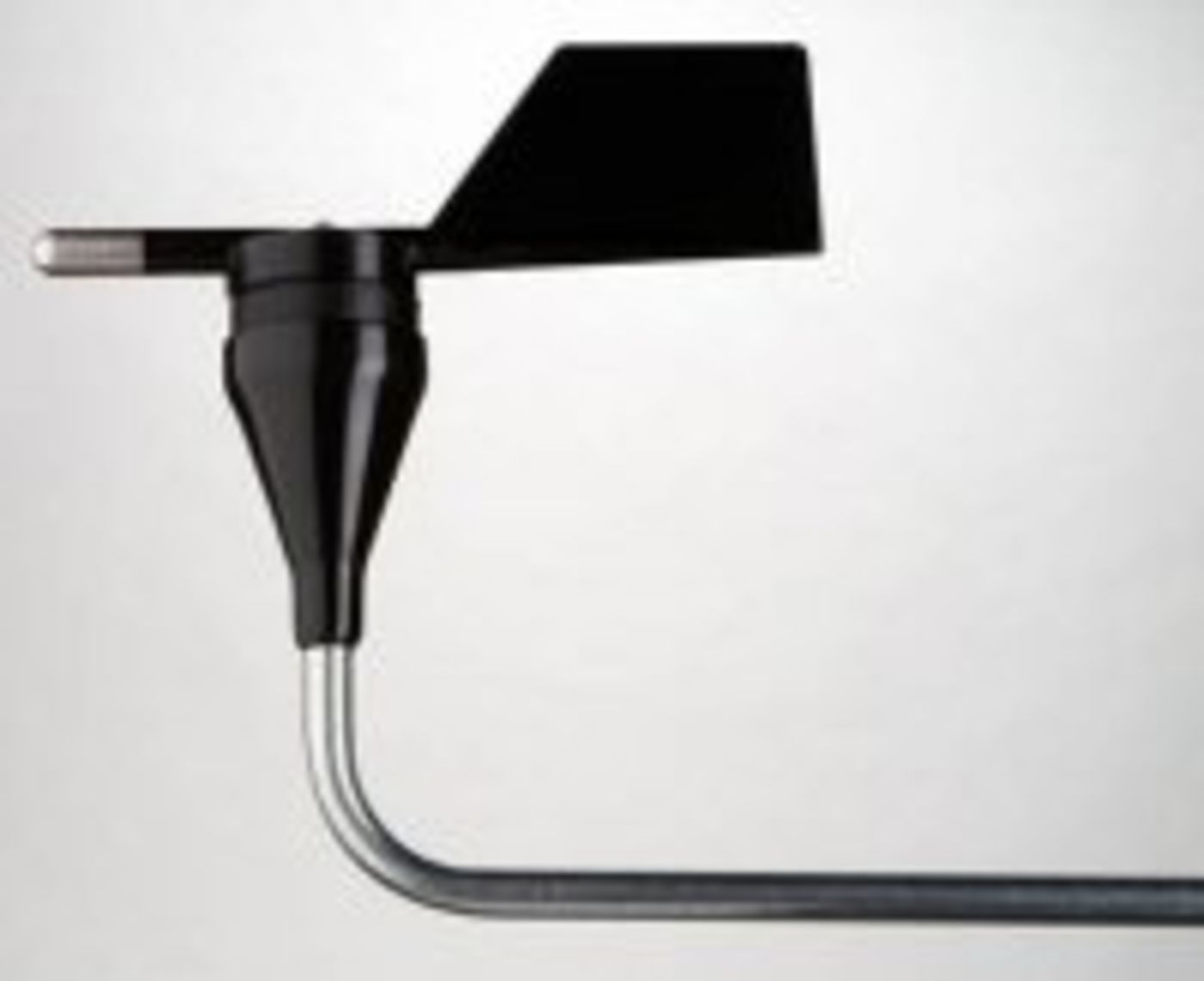

200P NRG Wind Direction Sensor
NRG's 200P wind direction vane is commonly used in wind prospecting applications. The thermoplastic and stainless steel components resist corrosion and contribute to a high strength-to-weight ratio. The vane is connected to a precision conductive plastic potentiometer located in the main body. An analog voltage output directly proportional to the wind direction is produced when a constant DC excitation voltage is applied to the potentiometer. A rubber terminal boot is included.
Specifications
- Sensor
- Vane
- Measurement Description
- Wind direction
- Measurement
- Analog potentiometer
(half bridge)
- Range
- 0° to 360°
- Operating Temperature Range
- -55° to +60°C
- Starting Threshold
- 1.0 m/s
(2.2 mph)
- Swept Diameter
- 27 cm
(10.5 in.)
- Length
- 21 cm
(8.3 in.)
- Height
- 12 cm
(4.3 in.)
- Weight
- 0.14 kg
(0.3 lb)
