14014
14014
End of lifeConfigurableWall Charger, Universal Inputs
Pricing
- Model:
- 14014
- Item Number:
- 14014
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

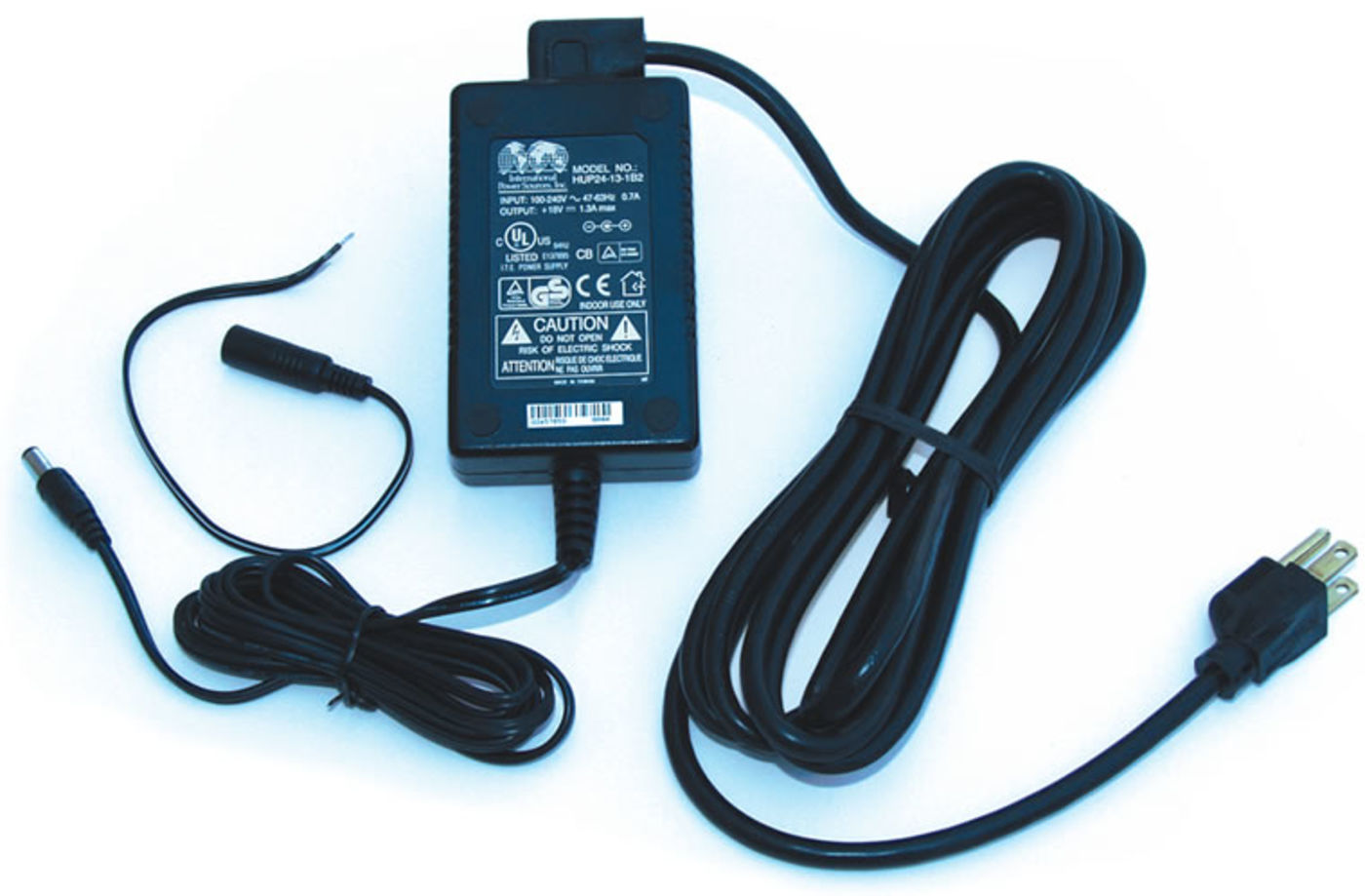

The 14014 is a wall charger that accepts a range of AC power inputs and then outputs 18 Vdc to recharge batteries. It is used with many of our current and retired power supplies. The 14014 is generally used instead of the 9591 when local AC power is provided at voltages other than 110 Vac. (The 14014 also accommodates 110 Vac.)
Technical Description
This universal power converter connects to AC power in the range of 90 to 264 Vac at 47 to 63 Hz, then outputs a charge voltage of 18 Vdc. This device recharges a sealed rechargeable battery via AC power. One end of the 14014 plugs into a wall AC outlet while the other end connects to the PS100 power supply, PS200 power supply, CH100 regulator, CH200 regulator, or the battery base of a CR3000 or CR5000 datalogger.
Benefits
- Compatible with PS100, PS12LA (retired), CH100, PS512M (retired), CH12R (retired), and CH512R (retired) power supplies
- Converts a range of ac power voltages to dc, so can be used in places where power fluctuates or is unstable
Specifications
- Input Voltage
- 90 to 264 Vac; 47 to 63 Hz
- Output Voltage
- 18 Vdc
- Maximum Output Current
- 1.3 A
- UL Approval File Number
- E137895
- Dimensions
- 10.7 x 6.4 x 3.0 cm
(4.2 x 2.5 x 1.2 in.)
- Weight
- 454 g
(1.0 lb)
Ships With
(1)- Orderable
