14057
DC Power Cable, Barrel Plug to Pigtail Converter
14057
OrderableDC Power Cable, Barrel Plug to Pigtail Converter
Overview

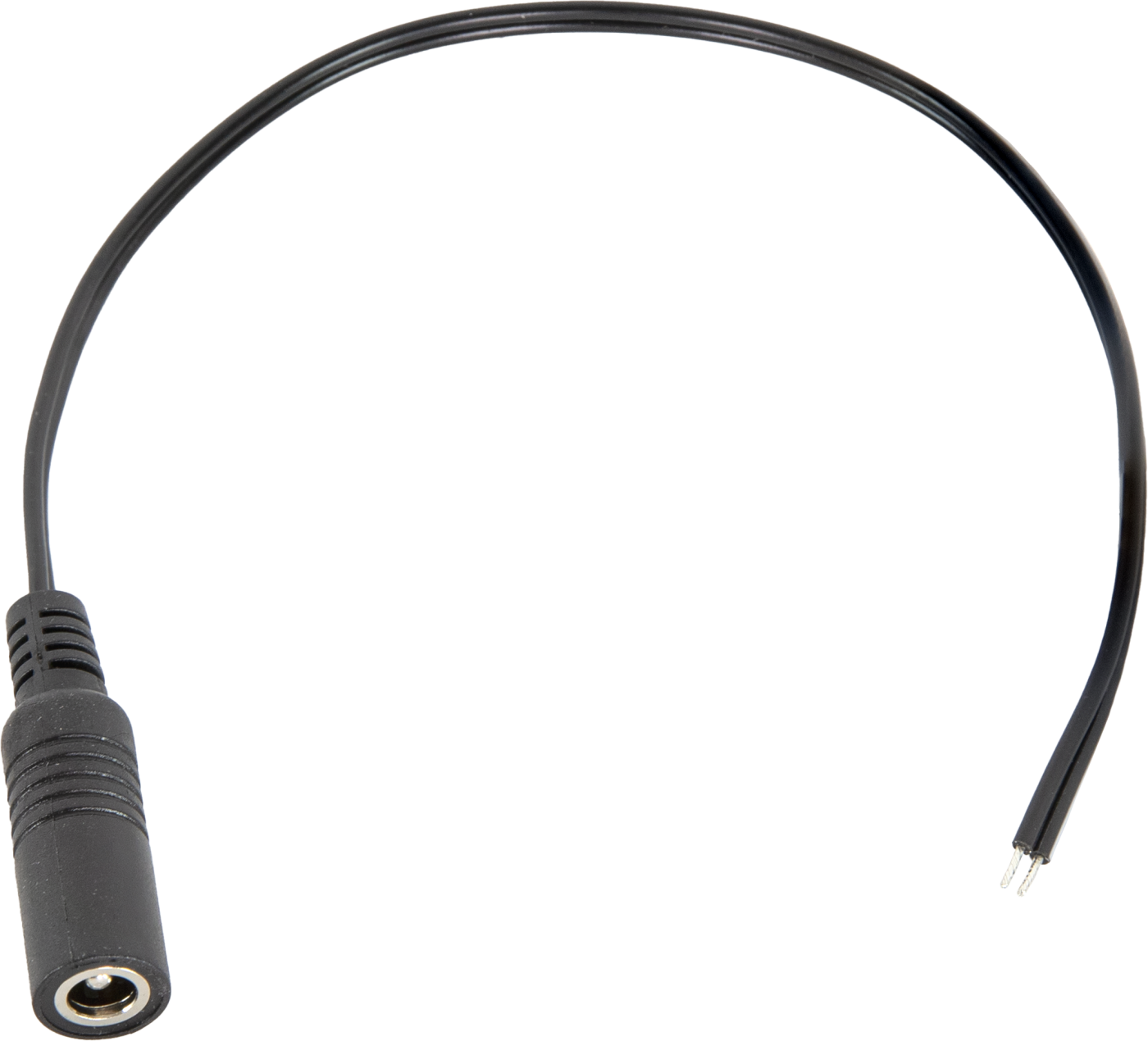

Power Cable Barrel Jack 2.5 X 5.5mm to Pigtail, 25cm (10 Inch)
This dc extension cable has a 10" (25 cm) length. The cable terminates on one end in a female barrel plug for connection to the male barrel plugs on the 14014 and 16003 transformers. It terminates in pigtails on the other end for insertion into 12V and GND terminals on a data logger. The 14057 is supplied with the 14014 and 16003 transformers.
Specifications
- DC Extension Cable Length
- 25 cm
(10 in.)
- Weight
- 9.07 g
(0.02 lb)
