020C-L

Wind Direction Sensor
020C-L

020C-L

RetiredConfigurable

Wind Direction Sensor

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
020C-L
Item Number:
28041
Warranty:
1 year
Lead time:
14 days

Overview

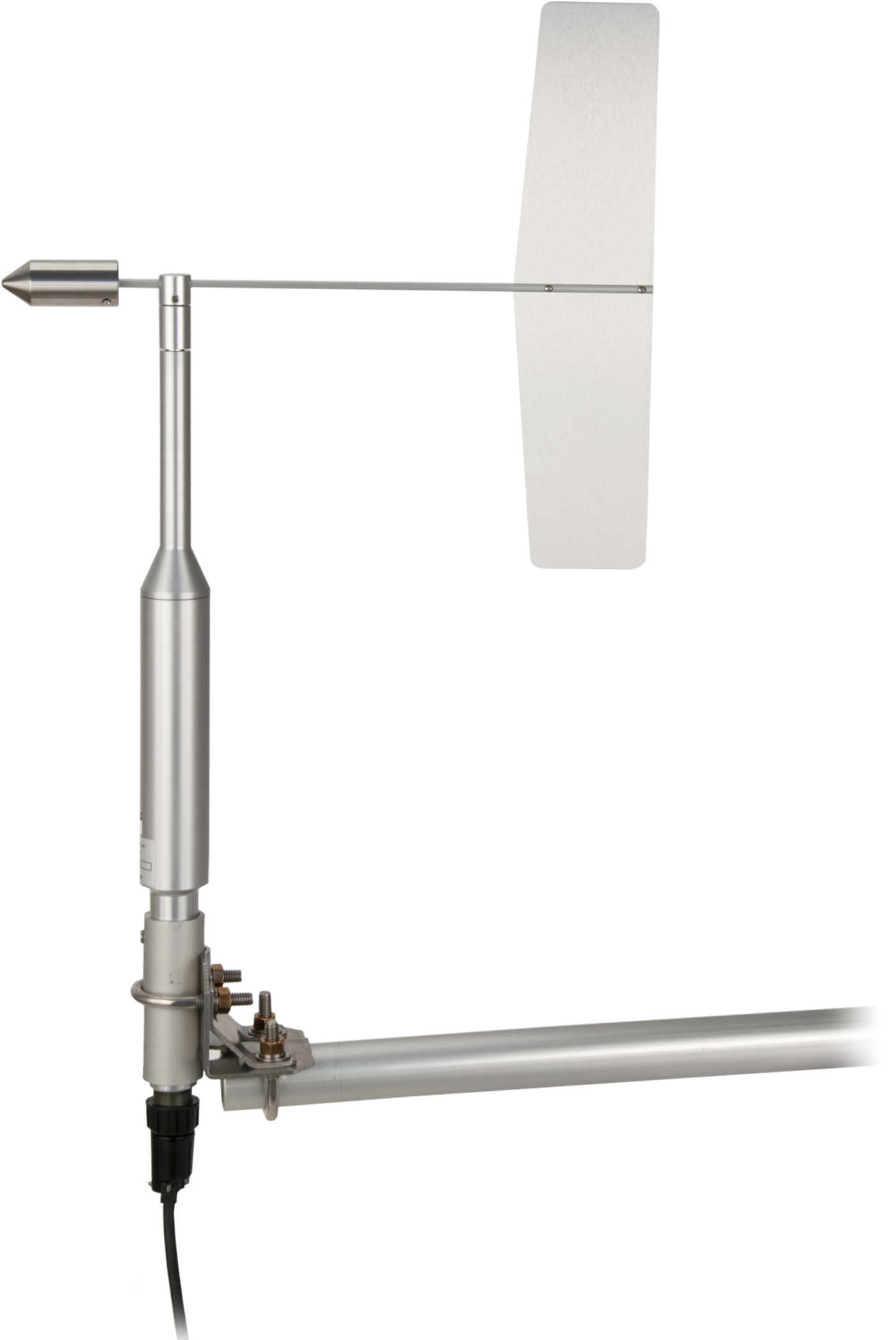

020D Met One Wind Vane Sensor

The 020C, manufactured by Met One, measures wind direction with research-grade accuracy and precision. The 020C is commonly used with the WMS100 for wind-farm power performance measurements. The 020C is especially suited to your applications that require a low starting threshold, a high damping ratio, or a short delay distance.

Key Advantages

Provides Research-Grade Accuracy and Precision

Technical Description

The lightweight, airfoil vane is directly coupled to a single precision microtorque potentiometer. The built-in electronics provide a voltage source for the potentiometer and amplifies the output signal for transmission over long cable lengths.

The vane assembly is easily installed or replaced without requiring recalibration. All sensor components are constructed with stainless steel and anodized aluminum.

Specifications

Sensor
Airfoil vane
Measurement Description
Wind direction
Measurement
Potentiometer

(half bridge)

Electrical Range
0° to 357°
Mechanical Range
0° to 360°
Measurement Threshold
0.5 mph
Measurement Linearity
± 0.5% of full scale
Accuracy
±3°
Damping Ratio
0.4
Delay Distance
< 91 cm

(3 ft)

Operating Temperature Range
-50° to +85°C

(-58° to +185°F)

Output
0 to 5 Vdc for 0 to 360°

(0 to 2.5 Vdc optional)

Output Impedance
100 Ω maximum
Finish
Anodized aluminum
Maximum Cable Length
91.44 m

(300 ft)

Weight
0.68 kg

(1.5 lb)

Power Requirements

Sensor Source
12 Vdc
Sensor Load
10 mA
Heater Source
12 Vdc
Heater Load
350 mA
