TE525WS
TE525WS
OrderableConfigurableRain Gage with 8 in. Orifice
Best for general applications. 8 in. orifice conforms with NWS recommendation.
Pricing
Configuration
Sign in for option pricing- w/5m (17ft) per Sensor -PF w/Ferrules on Wiresw/20cm
- TE525WS - L Texas Electronics Rain Gage 0.01 inch (0.254mm) Tip w / 8 inch Orifice w/10m (33ft) per Sensor w/Ferrules on WiresTE525WS-10m
- TE525WS - L Texas Electronics Rain Gage 0.01 inch (0.254mm) Tip w / 8 inch Orifice w/20m (66ft) per Sensor w/Ferrules on WiresTE525WS-20m
- TE525WS - L Texas Electronics Rain Gage 0.01 inch (0.254mm) Tip w / 8 inch Orifice w/30m (100ft) per Sensor w/Ferrules on WiresTE525WS-30m
Select a configuration to add to your quote
- Model:
- TE525WS
- Item Number:
- 45212
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview
The TE525WS, manufactured by Texas Electronics, is a tipping bucket rain gage that conforms to the National Weather Service recommendation for an 8 in. funnel orifice. It measures rainfall in 0.01 in. increments. This tipping bucket is compatible with all Campbell Scientific data loggers, and it is widely used in environmental monitoring applications.
Key Advantages
Technical Description
The TE525WS funnels precipitation into a bucket mechanism that tips when filled to its calibrated level. A magnet attached to the tipping mechanism actuates a switch as the bucket tips. The momentary switch closure is counted by the pulse-counting circuitry of our data loggers.
Benefits
- Compatible with most Campbell Scientific data loggers
- Accuracy is ±1 percent at rates up to 1 in./hr
- High precision—tips at 0.01-in. increments
- Directly compatible with the CS705 Snowfall Adapter allowing the TE525WS to measure the measure the water content of snow
- Conforms to the National Weather Service recommendation for an 8-inch funnel orifice
- Compatible with the CWS900-series interfaces, allowing it to be used in a wireless sensor network
Specifications
- Sensor Type
- Tipping bucket with magnetic reed switch
- Material
- Anodized aluminum
- Operating Temperature Range
- 0° to 50°C
- Resolution
- 1 tip
- Volume per Tip
- 8.24 ml/tip
(0.28 fl. oz/tip)
- Rainfall per Tip
- 0.254 mm
(0.01 in.)
- Measurement Uncertainty
- 1.0%
up to 50 mm/h (2 in./h)
- Cable Type
- 2-conductor shielded
- Orifice Diameter
- 20.3 cm
(8 in.)
- Dimensions
- 21 x 21 x 26.7 cm)
(8.25 x 8.25 x 10.5 in.)
- Cable Weight
- 0.1 kg (0.2 lb) per 3.05 m (10 ft) length
- Tipping Bucket Weight
- 1.0 kg
(2.2 lb)
Related Resources
Case Studies

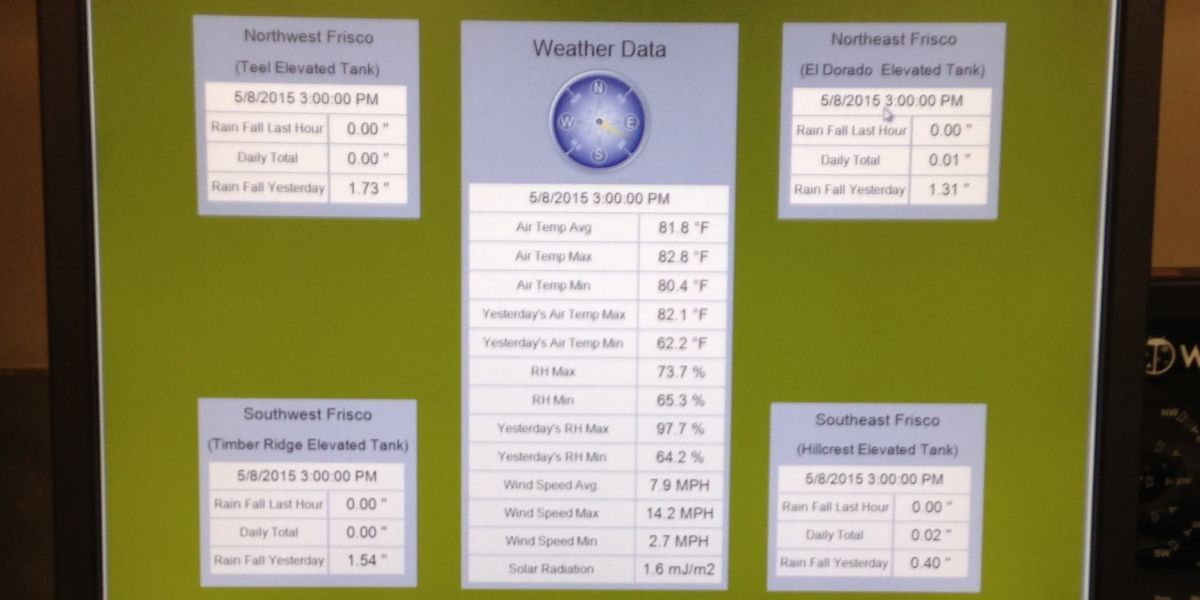

Texas: Water Conservation
Monitoring weather and evapotranspiration to help consumers water wisely
Frisco, Texas, USA
October 26, 2016
View
Peru: High-Elevation Weather on Glaciers
Glacier monitoring
Andes Mountains, Peru
March 25, 2015
View

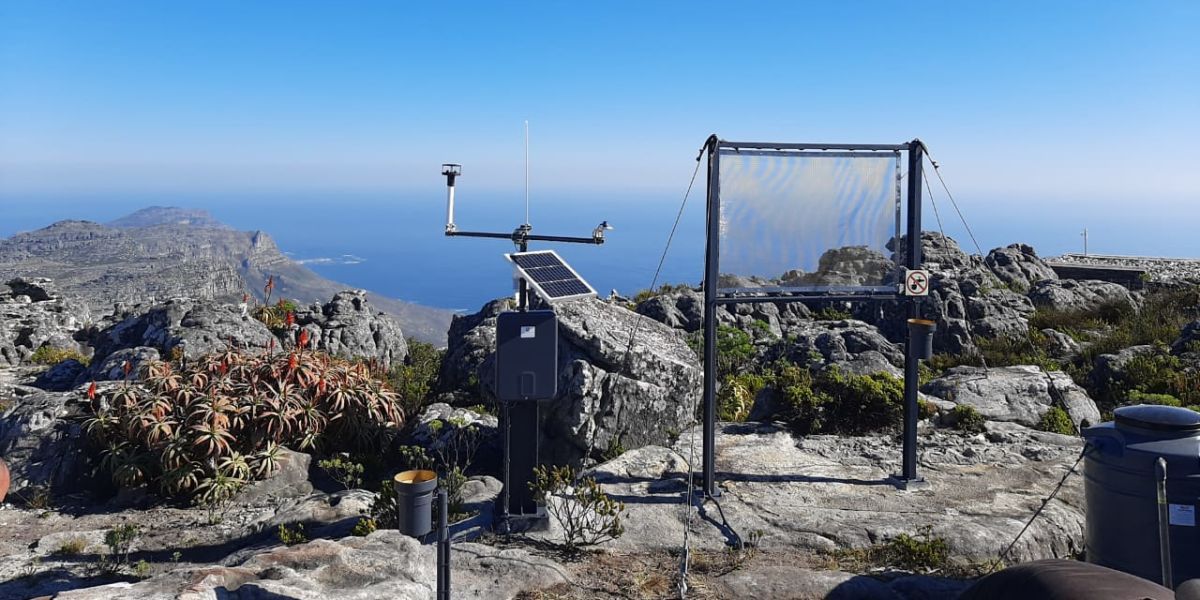

South Africa: Fog Harvesting
Measuring fog for moisture collection
Cape Town, South Africa
February 17, 2022
View

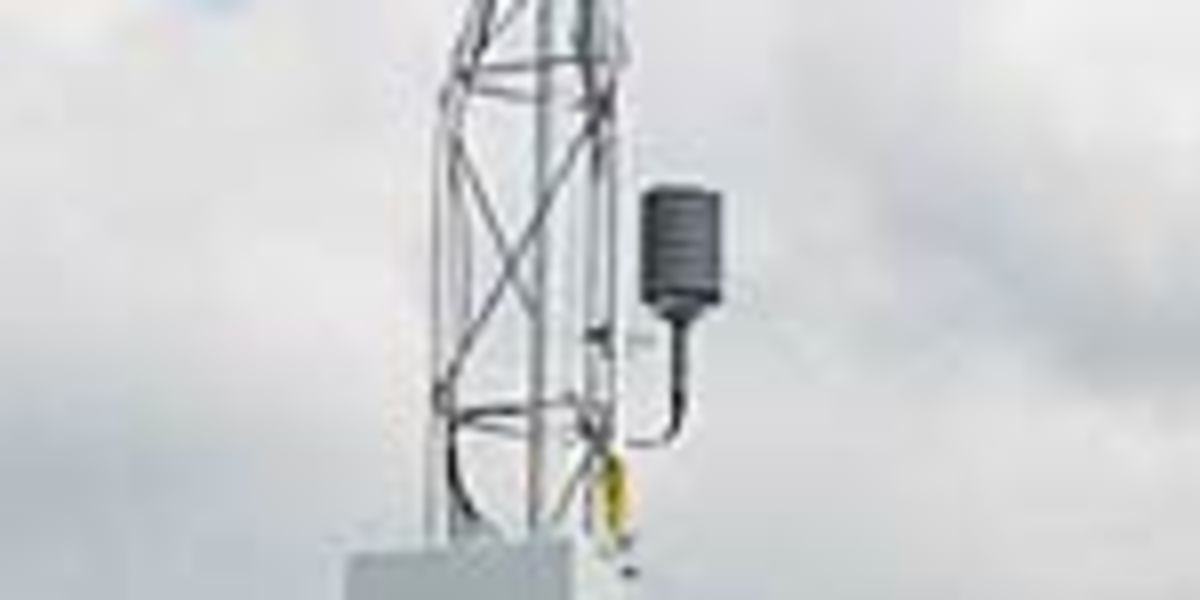

Pennsylvania: University Weather Station
