XDD1

Sample Pump with Fittings, 50 ft of Tubing
XDD1

XDD1

OrderableConfigurable

Sample Pump with Fittings, 50 ft of Tubing

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
XDD1
Item Number:
26066
Warranty:
1 year
Lead time:
30 days

Overview

XDD1 EDWARDS PUMP FITTINGS

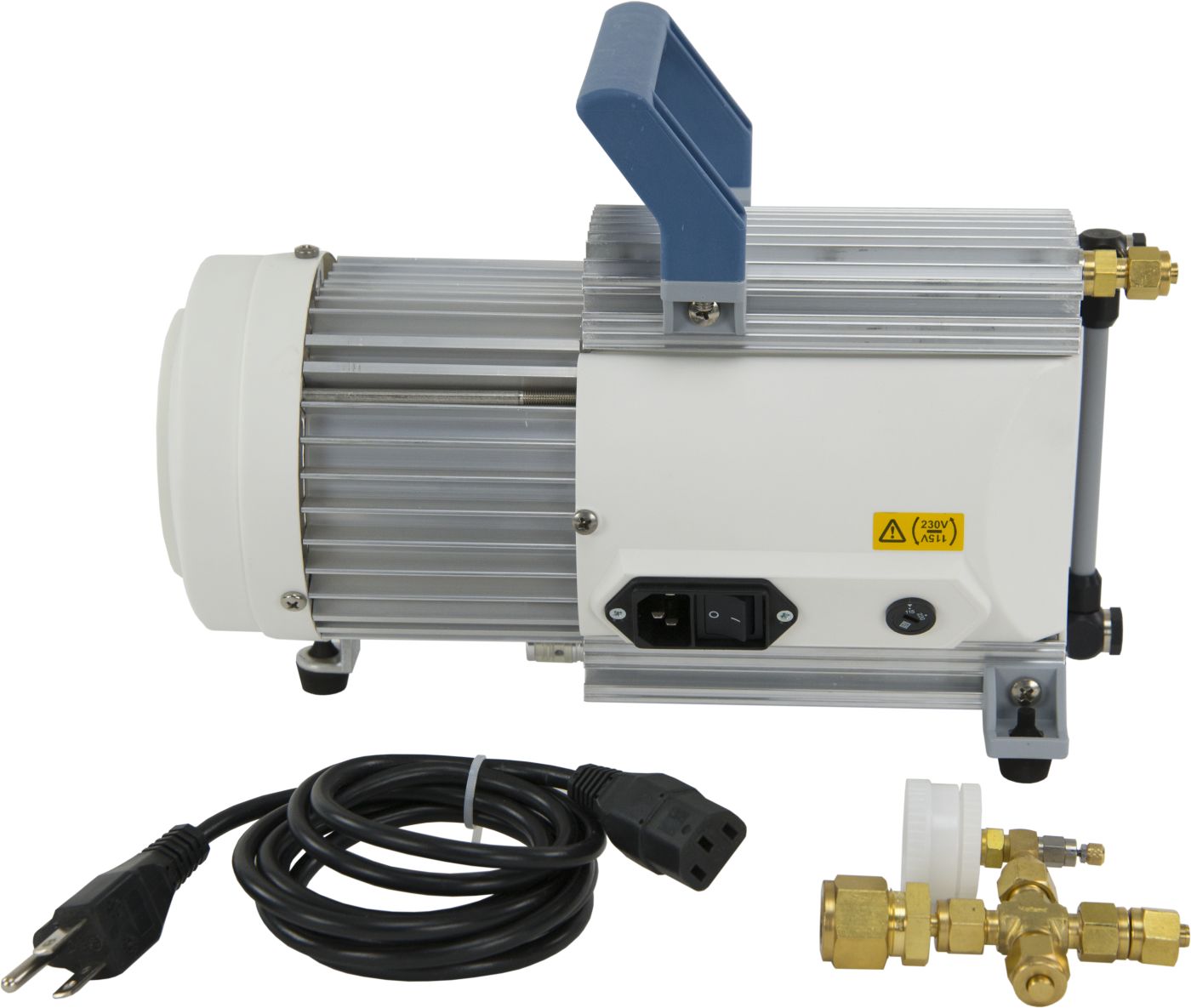

The XDD1 pump is ideal for trace-gas systems that require only a small amount of air to be moved at low pressure. For example, the XDD1 can be used to pull sample air from a single intake or to pull a subsample of air from a sampling manifold. Unlike some other sample pumps, the XDD1 does not require an extra option for power inputs because it is compatible with 120 or 220 Vac power. It comes with a power cord, 1/4 in. tubing connection, 1/2 in. tubing connection, 50 ft. of 1/2 in. OD tubing, and an inlet with filter and needle valve to allow for additional flow.

Key Advantages

Sample Pump
Moves a small amount of air at low pressure

Specifications

-NOTE-
For detailed installation and operating instructions, refer to the user manual supplied with the pump.
Power
140 W
Pumping Speed
1 slpm at 50 mb

(60 Hz)

Ambient Temperature Range for Operation
10° to 40°C
Ultimate Vacuum
< 2 mb
Dimensions
31.3 x 14.4 x 21.5 cm

(12.3 x 5.7 x 8.5 in.)

Weight
6.7 kg

(14.8 lb)
