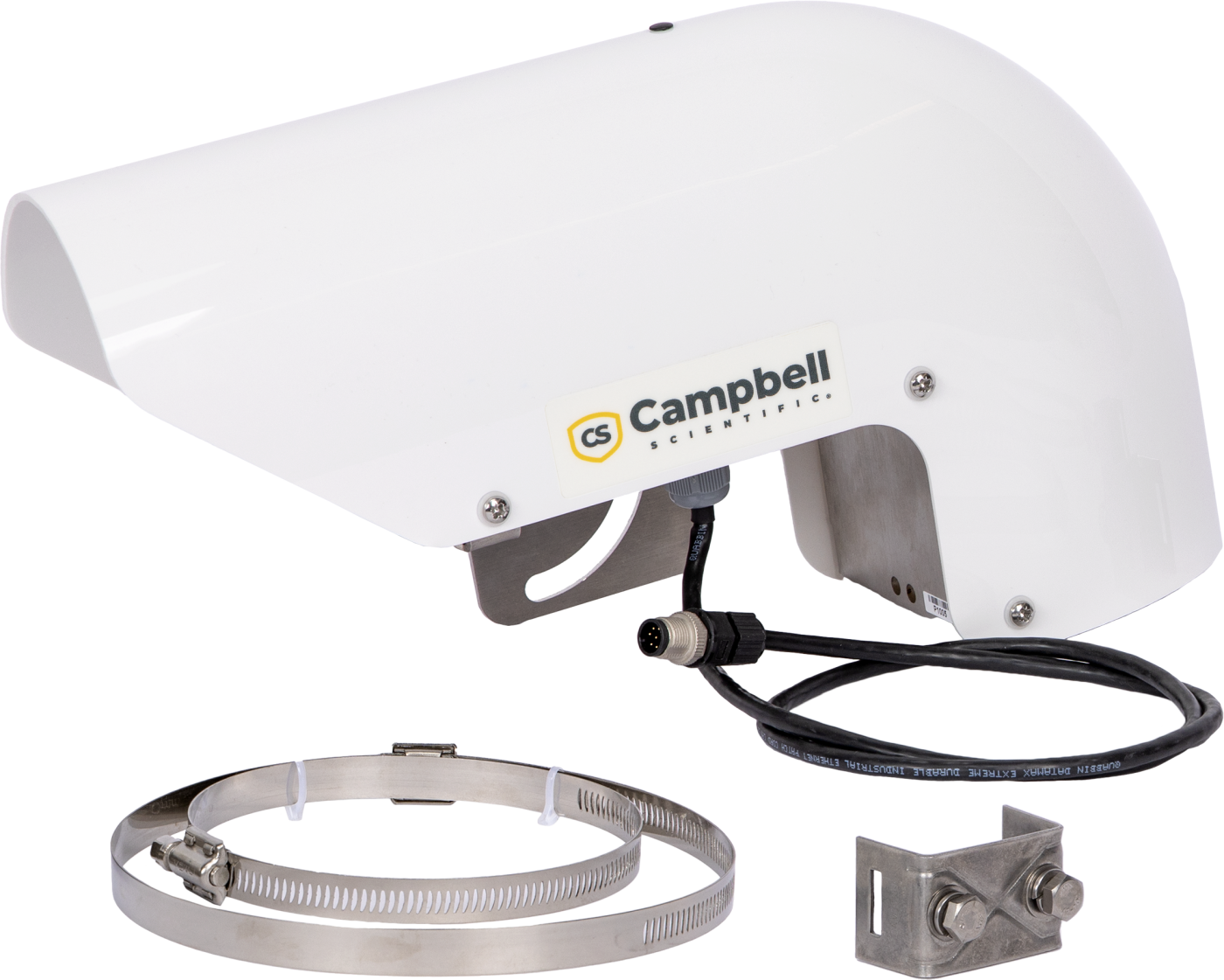

Wintersense SDI-12

Name: Wintersense SDI-12
Brand: Campbell Scientific
SKU: 40836
Availability: InStock

Non-Invasive Surface Temperature Sensor

Wintersense SDI-12

OrderableConfigurable

Non-Invasive Surface Temperature Sensor

A road surface temperature sensor that is a wired solution for connection to an RWIS station or a data logger that supports SDI-12.

Pricing

Model:: Wintersense SDI-12
Item Number:: 40836
Warranty:: 1 year
Lead time:: 21 days

Overview

Wintersense SDI-12 Non-Invasive Surface Temperature Sensor (-40 to +70C) w/o Cable

The Wintersense SDI-12 is a remote road surface temperature sensor designed for use with your Road Weather Information Systems (RWIS). It is an easy-to-deploy, non-invasive, compact, and lightweight sensor that you can mount on existing roadside structures such as streetlight columns or RWIS towers. The Wintersense SDI-12 has a cabled connection for power and communications with an RWIS station or data logger for data storage and forwarding.

With accurate, real-time road surface temperature data, you can forecast your winter road treatments, preventing traffic accidents and potential loss of life.

Key Advantages

Forecast Winter Treatments for Road Surfaces
Prevent traffic accidents and loss of life

Technical Description

The Wintersense SDI-12 is equipped with a thermopile sensor that detects the presence of thermal radiation emitted from the target surface. The sensor also has an integrated optical filter that cuts off the visible and near-infrared radiation flux so that you get optimum ambient and sunlight immunity. These features, combined with an eight-second signal-averaging algorithm, provide you with best-of-class data for these measurement parameters:

Road surface temperature
Air temperature
Relative humidity
Dewpoint
Installation angle
Sensor temperature

Benefits

Accurate
Non-invasive
Easy to install
Simple to maintain
Compatible with most data loggers and RWIS
Remote firmware updates

Specifications

Road-Surface Temperature

Measurement Range: -40 to +70°C
(-40 to +158°F)
Accuracy at -40 to +60°C: ±0.5°C
Accuracy at -40 to +60°C: Note: Accuracy is temperature dependent. The quoted accuracy is against a blackbody source within the ambient temperature range of -20 to +50°C and object temperature range of -40 to +60°C.
Resolution: ±0.01°C
Field of View (FOV): 10°
(at 50% normalized signal)
Field of View (FOV): Note: Use our field-of-view tool to make your calculations and install your Wintersense SDI-12 appropriately.
Distance to Target: 2 to 15 m
(6.6 to 49.2 ft)

Dew Point Temperature (Calculated)

Measurement Range: -40 to +70°C
(-40 to +158°F)
Accuracy: ±1°C
Accuracy: Note: The calculated dew point temperature is found from Tetens' equation solved for dew point with coefficients optimized for the temperature range -35 to +50°C.
Resolution: 0.1°C

Air Temperature

Measurement Range: -40 to +70°C
(-40 to +158°F)
Accuracy: ±0.4°C
Accuracy: Note: Inaccuracy can be higher under moderate-to-high solar radiation.
Resolution: ±0.01°C

Relative Humidity

Measurement Range: 0 to 100%
Accuracy: < ±3%
Resolution: ±0.1%

General Specifications

Operating Temperature Range: -40 to +70°C
(-40 to +158°F)
Operating Humidity Range: 0 to 100%
Internal Enclosure Sealing: IP65
(minimum)
Typical Power Consumption @ 12 Vdc: < 0.1 mA
(idle)
Typical Power Consumption @ 12 Vdc: < 14 mA
(active)
Supply Voltage Range: 5 to 18 Vdc
Dimensions: 350 x 200 x 100 mm
(13.8 x 7.9 x 4.0 in.)
Weight: 1.4 kg
(3 lb)
Digital Output: SDI-12
Default SDI-12 Address: 0
Response Time (to M!): 8 s to read all sensor outputs using SDI-12 commands
Sensor Warm-up Time: If power is switched, allow 3 s for warm-up before taking a measurement.
