WEATHERPAK M

Mobile Weather Station for Emergency Response Applications
WEATHERPAK M

WEATHERPAK M

RetiredConfigurable

Mobile Weather Station for Emergency Response Applications

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
WEATHERPAK M
Item Number:
38481
Warranty:
1 year
Lead time:
21 days

Overview

WEATHERPAKM Quick Deploy System

WEATHERPAK™M weather stations are impervious to airborne chemicals and designed to be deployed directly in the hot zone. These models can be set up in less than 60 seconds, without tools, by one person wearing full protective gear. A WEATHERPAK M weather station can survive a 1.8 m (6 ft) drop to concrete and withstand a decontamination scrubdown, as well as many other environmental hazards.

CAMEO®/ALOHA®: registered trademarks of the United States Environmental Protection Agency (US EPA) and the National Oceanic and Atmospheric Administration (NOAA).

Key Advantages

Quick-Deploy System
For chemical, biological, and radiological response

Technical Description

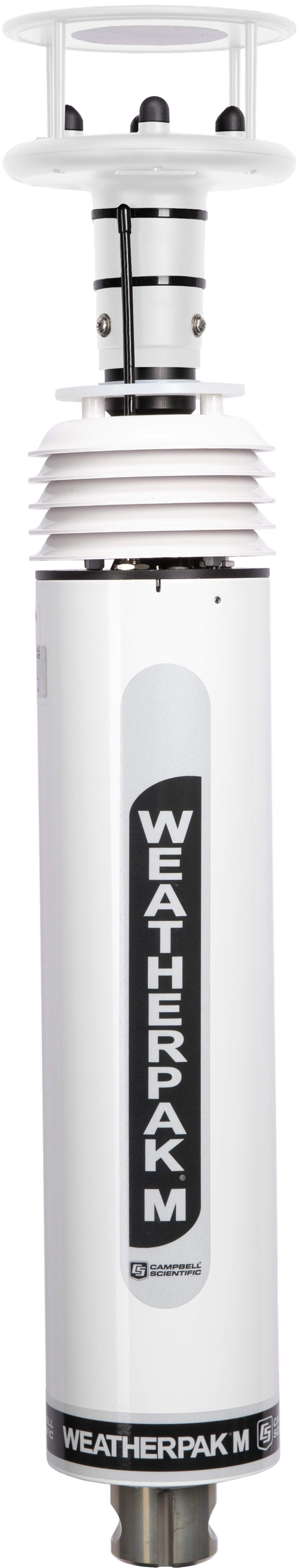

The WEATHERPAK M is a portable, self-contained weather station for rapid response such as HAZMAT and emergency response applications, and it is designed to be deployed by personnel in full protective gear. Assembly takes less than 60 seconds, and the system automatically begins making measurements and broadcasting data as soon as the tripod and canister are coupled. The weather station is completely sealed and built from corrosion-resistive materials, making it able to withstand harsh environments. Data is broadcast from the weather station to the display unit via 467.8000 MHz UHF or a 900 MHz spread-spectrum radio. Data is transmitted in the standard ALOHA message format for direct ingestion by third-party plume modeling software.

The integrated 2-D ultrasonic anemometer provides years of maintenance-free operation, while a GPS and electronic compass automatically correct measurements based on location and orientation. An onboard barometer and temperature/relative humidity sensor round out the measurement suite, exceeding the criteria for an EPA station for atmospheric measurements.

The WEATHERPAK M is easily transported and includes a hard-sided case for the canister and a carrying bag for the quick-deploy tripod.

Benefits

  • Meets US EPA’s standard for Station for Atmospheric Measurements (SAM)
  • Designed for quick deployment
  • Automatic detection and display of data from multiple units
  • Portable design ideally suited for HAZMAT response
  • SAM data forwarded to ALOHA<sup>&reg;</sup> and other plume modeling software
  • Integrated compass and GPS for location and orientation information
  • No-moving-parts ultrasonic wind sensor that requires no calibration

Specifications

Communications
467.8000 MHz; 2 W

(US)

Communications
900 to 920 MHz; 1 W

(international)

Power Supply
10 D cell batteries
Power Supply
External 12 V

(additional cable required)

Power Supply
250 mA @ 12 V (average), 1 A maximum during transmission

Environmental

Operating Temperature Range
-30° to +60°C

Air Temperature

Measurement Range
-35° to +70°C

(-31° to +158°F)

Accuracy
±0.1°C at 25°C

Relative Humidity

Measurement Range
0 to 100%
Accuracy
0.5% at 25°C

Barometric Pressure

Measurement Range
600 to 1100 mBar
Accuracy
0.1% at 25°C

Wind Speed

Measurement Range
0 to 60 m/s

(117 kts, 135 mph)

Accuracy
±2%
Resolution
0.01 m/s

Wind Direction

Measurement Range
0 to 360°
Accuracy
±2%
Resolution
1°

Compass

Accuracy
1° RMS
Resolution
0.1° RMS

GPS

Accuracy
< 5m 90%

(autonomous)

Accuracy
< 4m 90%

(SBAS)

PPS
< ±25 ns 50%
