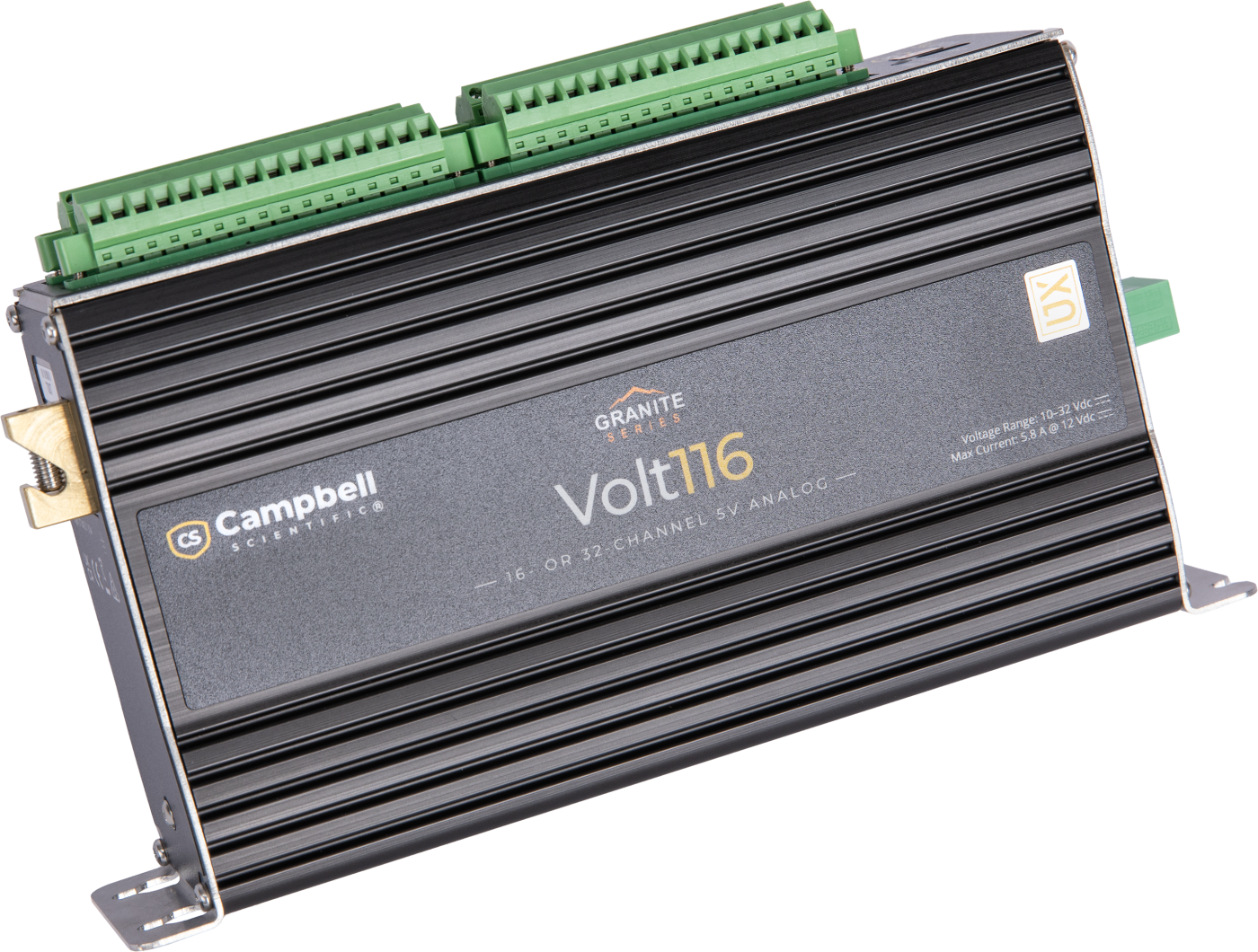

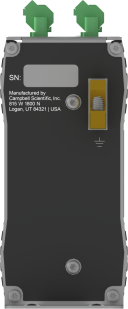

Granite Volt 116

Mounting

Standard 1-in. grid

(DIN rail mounting available)

Operating Temperature Range

-40° to +70°C

(standard)

Operating Temperature Range

-55° to +85°C

(extended)

Power Requirements

9.6 to 32 Vdc voltage

Accuracy

±(0.04% of reading + offset)

0° to 40°C

Accuracy

±(0.06% of reading + offset)

-40° to +70°C

Accuracy

±(0.08% of reading + offset)

-55° to +85°C

Number of Channels

16 differential or 32 single-ended inputs

Analog Inputs

32 single-ended or 16 differential

(with ±5000 mV, ±1000 mV, ±200 mV ranges 24 bit ADC)

Maximum Scan Rate

1 channel at 1 kHz

Maximum Scan Rate

16 channels at 167 Hz

Input Range

±5000 mV, ±1000 mV, and ±200 mV

Period Averaging

Traditional period averaging on analog input channels

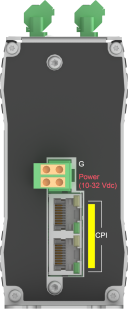

CPI

For data logger connection. Baud rate selectable from 50 kbps to 1 Mbps.

(Allowable cable length varies depending on baud rate, number of nodes, cable quality, and noise environment, but can be as long as 700 m under proper conditions.)

USB

USB 2.0 full speed connection available for attaching to a PC.

(Port is used to configure the module and download updates via our Device Configuration Utility.)

Warranty

One year against defects in materials and workmanship

Dimensions

20.3 x 12.7 x 5.1 cm

(8 x 5 x 2 in.)

Weight

0.9 kg

(1.95 lb)

Typical Current Drain

Sleep

<1 mA

Active 1 Hz Scan

2 mA

(estimated)
Assumes one single-ended measurement with the first notch frequency (f_N1) at 30 kHz
Note: Any sensor excitation or switched power loads will be additive to this value.

Active 20 Hz Scan

20 mA

Assumes one single-ended measurement with the first notch frequency (f_N1) at 30 kHz
Note: Any sensor excitation or switched power loads will be additive to this value.

Active 1 kHz Scan

67 mA

Note: Any sensor excitation or switched power loads will be additive to this value.

Voltage/Current Excitation Outputs

Voltage Excitation

±5 V

(@ 50 mA)

Current Excitation

±2.5 mA

(±5 V compliance voltage)

Number of Voltage/Current Excitation Outputs

4

General Purpose Outputs

Number of SW5V Outputs

4

SW5V Output Resistance

30 Ω

Number of SW12V Outputs

2

Typical Limit of SW12V Outputs

200 mA

Minimum Limit of SW12V Outputs

180 mA

Number of 12V Outputs

2

Typical Limit of 12V Outputs

200 mA

Minimum Limit of 12V Outputs

180 mA
