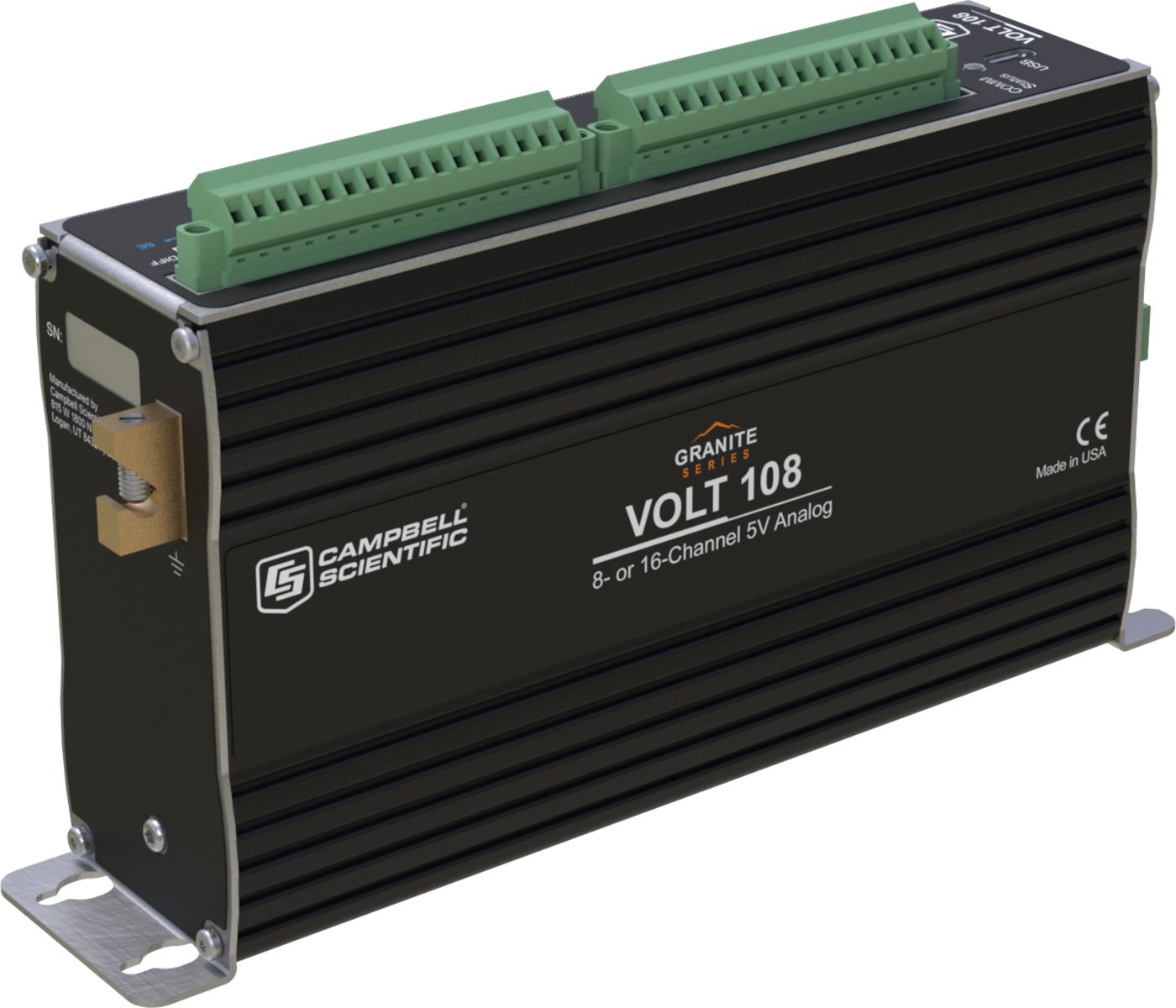

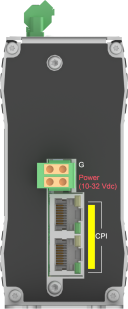

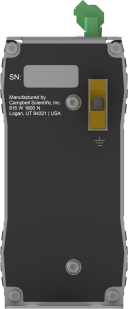

Granite Volt 108
Granite Volt 108
OrderableConfigurableGSA8- or 16-Channel 5V Analog Input Module
Pricing
Configuration
Sign in for option pricing- ST Standard DutyVOLT108-SD
- Extended DutyVOLT108-XD
Select a configuration to add to your quote
- Model:
- Granite Volt 108
- Item Number:
- VOLT108
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The Granite™ Volt 108 easily expands the channel count on your data acquisition system. It has eight differential or 16 single-ended input channels, as well as two excitation channels. The Volt 108 provides programmable, precision excitation for standard sensor measurements and power outputs for controlling sensors and peripherals. This module features a 24-bit, analog-to-digital converter with low-noise performance for superior analog measurements.
Key Advantages
Interfaces directly to a PC for quick setup and data acquisition
Benefits
- 24-bit ADC and low-noise inputs for increased measurement quality
- Distributed data acquisition
- Channel count expansion via the CPI bus on Campbell Scientific data loggers
- Easier to program than traditional multiplexers
- Programmable noise rejection
- CANbus 2.0 A/B output available with the Extended Duty (-XD) version
- USB 2.0 interface for PC-based operation with Campbell Scientific Surveyor software
Specifications
- Power Requirements
- 9.6 to 32 Vdc voltage
- Mounting
- Standard 1-in. grid
(DIN rail mounting available)
- Accuracy
- ±(0.04% of reading + offset)
0° to 40°C
- Accuracy
- ±(0.06% of reading + offset)
-40° to +70°C
- Accuracy
- ±(0.08% of reading + offset)
-55° to +85°C
- Number of Channels
- 8 differential or 16 single-ended
- Operating Temperature Range
- -40° to +70°C
(standard)
- Operating Temperature Range
- -55° to +85°C
(extended)
- Maximum Scan Rate
- 1 channel at 1 kHz
- Maximum Scan Rate
- 8 channels at 333 Hz
- Input Range
- ±5000 mV, ±1000 mV, and ±200 mV
- Period Averaging
- Traditional period averaging on analog input channels
- CPI
- For data logger connection. Baud rate selectable from 50 kbps to 1 Mbps.
(Allowable cable length varies depending on baud rate, number of nodes, cable quality, and noise environment, but can be as long as 700 m under proper conditions.)
- USB
- USB 2.0 full speed connection available for attaching to a PC.
(Port is used to configure the module and download updates via our Device Configuration Utility.)
- Warranty
- One year against defects in materials and workmanship
- Dimensions
- 20.3 x 12.7 x 5.1 cm
(8 x 5 x 2 in.)
- Weight
- 0.8 kg
(1.75 lb)
Typical Current Drain
- Sleep
- <1 mA
- Active 1 Hz Scan
- 2 mA
(estimated)
Assumes one single-ended measurement with the first notch frequency (fN1) at 30 kHz
Note: Any sensor excitation or switched power loads will be additive to this value. - Active 20 Hz Scan
- 20 mA
Assumes one single-ended measurement with the first notch frequency (fN1) at 30 kHz
Note: Any sensor excitation or switched power loads will be additive to this value. - Active 1 kHz Scan
- 67 mA
Note: Any sensor excitation or switched power loads will be additive to this value.
Voltage/Current Excitation Outputs
- Voltage Excitation
- ±5 V
(@ 50 mA)
- Current Excitation
- ±2.5 mA
(±5 V compliance voltage)
- Number of Voltage/Current Excitation Outputs
- 2
General Purpose Outputs
- Number of SW5V Outputs
- 2
- SW5V Output Resistance
- 30 Ω
- Number of SW12V Outputs
- 1
- Typical Limit of SW12V Outputs
- 200 mA
- Minimum Limit of SW12V Outputs
- 180 mA
- Number of 12V Outputs
- 1
- Typical Limit of 12V Outputs
- 200 mA
- Minimum Limit of 12V Outputs
- 180 mA
