OrderableConfigurableOptional-Height, Heavy-Duty Universal Tower
Pricing
Configuration
Sign in for option pricing- Inch Height No Tracker Mount-38
- Inch Height w/Solar Tracker Mount-38
- Inch Height No Tracker Mount-51
- Inch Height w/Solar Tracker Mount-51
- Inch Height No Tracker Mount-69
- Inch Height w/Solar Tracker Mount-69
- Inch Height No Tracker Mount-87
- Inch Height w/Solar Tracker Mount-87
Select a configuration to add to your quote
- Model:
- UTHD
- Item Number:
- 45313
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

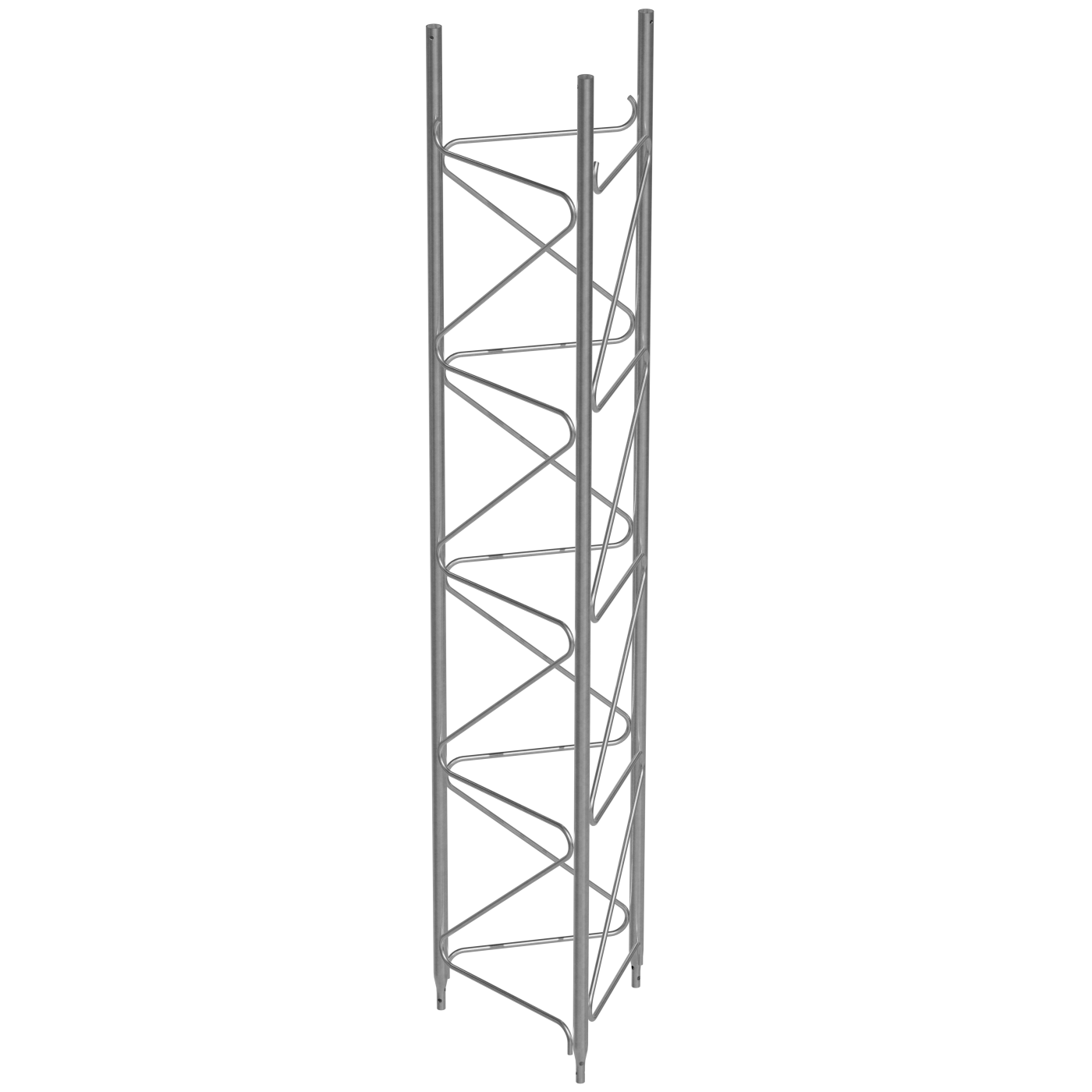

The UTHD is a durable instrument tower that can be used in a variety of monitoring applications. The UTHD is an aluminum, corrosion-resistant instrumentation tower with four tower height options and high wind load ratings at user-selectable tower heights.
Data logger and power supply enclosures, solar panel(s), crossams, and other meteorological instrumentation mount to the tower legs. An optional Sun Tracker Mount provides a sturdy platform at the top of the UTHD for permanent deployment of a precision Sun Tracker for advanced solar resource assessment and power performance monitoring. This optional mount works with Sun Trackers such as Kipp & Zonen (Solys2) or EKO Instruments (STR-21G or STR-22G).
Benefits
- User-selectable height options
- Sturdy, long-term instrument mount with robust mounting option for industry standard Sun Trackers
- Higher wind load rating than the UT10, UT20, or UT30 towers
- Wider legs to enable mounting standard Campbell Scientific mounting equipment
- Top portion ends without traditional triangle connections and a mast
Specifications
- Material
- Hardened drawn 6063-T832 aluminum
- Required Concrete Pad Dimensions
- 91 x 91 x 122 cm
(36 x 36 x 48 in.) for B18 Concrete Mounting Base
Concrete pad requirements assume heavy soil; light, shifting, or sandy soils require a larger concrete pad. - -NOTE-
- Allowable wind gust specifications were calculated with the following:
one enclosure, two crossarms mounted with two CM210 crossarm mounts each (one crossarm with a wind monitor, the other crossarm with two pyranometers), and B-18 anchors used to secure the stand to the ground. In addition, the concrete footing has a 91.4 cm (36 in.) length, a 91.4 cm (36 in.) width, and a 122 cm (48 in.) depth.
- Allowable Wind Gusts at 220.98 cm (87 in.)
- 239.9 kph
(149 mph)
- Allowable Wind Gusts at 175.26 cm (69 in.)
- 260.7 kph
(162 mph)
- Allowable Wind Gusts at 129.54 cm (51 in.)
- 280.0 kph
(174 mph)
- Allowable Wind Gusts at 96.52 cm (38 in.)
- Not rated
- Leg Spacing
- 43.2 cm
(17.0 in.)
- Height
- User-selectable
- Weight
- 4.16 kg
(9.18 lb)
