UT018
Tower Mounting Bracket with 2 ft Crossarm
UT018
End of lifeTower Mounting Bracket with 2 ft Crossarm
Pricing
- Model:
- UT018
- Item Number:
- 6141
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

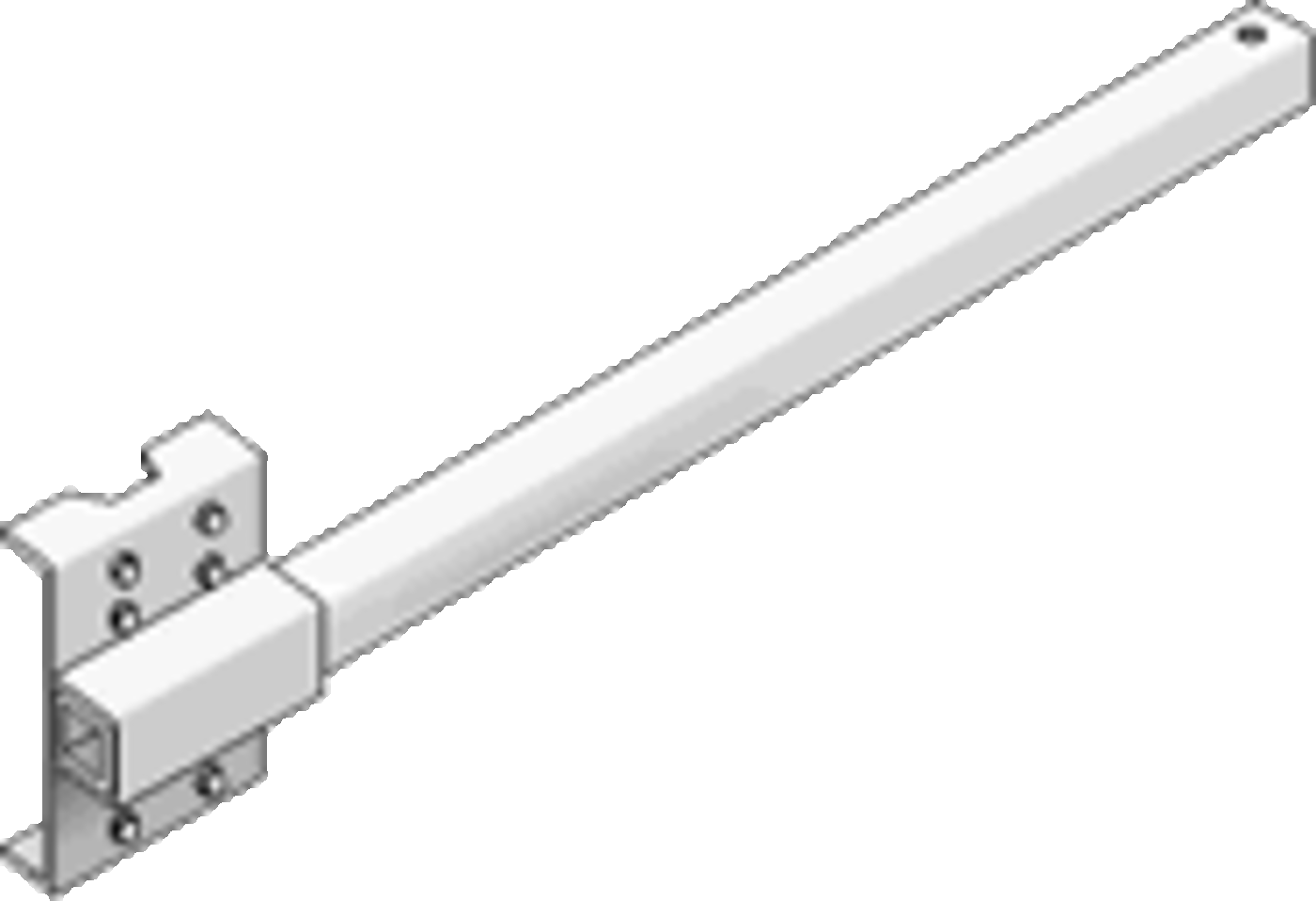

UT018 2ft Sensor Crossarm w/Tower Mounting Hardware
The UT018 consisted of a bracket, u-bolts, and a 2-ft length of square aluminum tubing. The bracket and u-bolts could attach to a tower leg that had an IPS pipe size of 0.75" to 1.25" (1.05" to 1.66" OD). The square tubing measured 1.5" (3.8 cm) on each side.
Technical Description
The UT018 consisted of a bracket, u-bolts, and a 2-ft length of square aluminum tubing. The bracket and u-bolts could attach to a tower leg that had an IPS pipe size of 0.75" to 1.25" (1.05" to 1.66" OD). The square tubing measured 1.5" (3.8 cm) on each side.
One end of the aluminum tubing was through-drilled to accommodate a bolt for attaching one of the following brackets:
- 6880 Wind sensor, snow depth sensor, or IRGA bracket
- 14118 CSAT3 and KH20 Bracket
- UT12VA radiation shield and bracket (retired)
- UT6P radiation shield and bracket (retired)
- UTLI Pyranometer leveling base and bracket (retired)
Specifications
- Crossarm Length
- 60.2 cm
(23.7 in.)
- Bracket Dimensions
- 12.7 x 16.0 x 2.5 cm
(5.0 x 6.3 x 1.0 in.)
- Weight
- 1.6 kg
(3.5 lb)
