OrderableConfigurableMetric Rain Gage with 9.6 in. Orifice
9.6 in. (243.8 mm) orifice conforms to WMO recommendation.
Pricing
Configuration
Sign in for option pricing- w/5m (17ft) per Sensor -PF w/Ferrules on Wiresw/24.3cm
- w/10m (33ft) per Sensor -PF w/Ferrules on Wiresw/24.3cm
- TE525MM - L Texas Electronics Rain Gage 0.1mm (0.00394 inch) Tip w / 9.6 inch Orifice w/20m (66ft) per Sensor w/Ferrules on WiresTE525MM-20m
- TE525MM - L Texas Electronics Rain Gage 0.1mm (0.00394 inch) Tip w / 9.6 inch Orifice w/30m (100ft) per Sensor w/Ferrules on WiresTE525MM-30m
- w/o Cablew/24.3cm
Select a configuration to add to your quote
- Model:
- TE525MM
- Item Number:
- 45211
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview

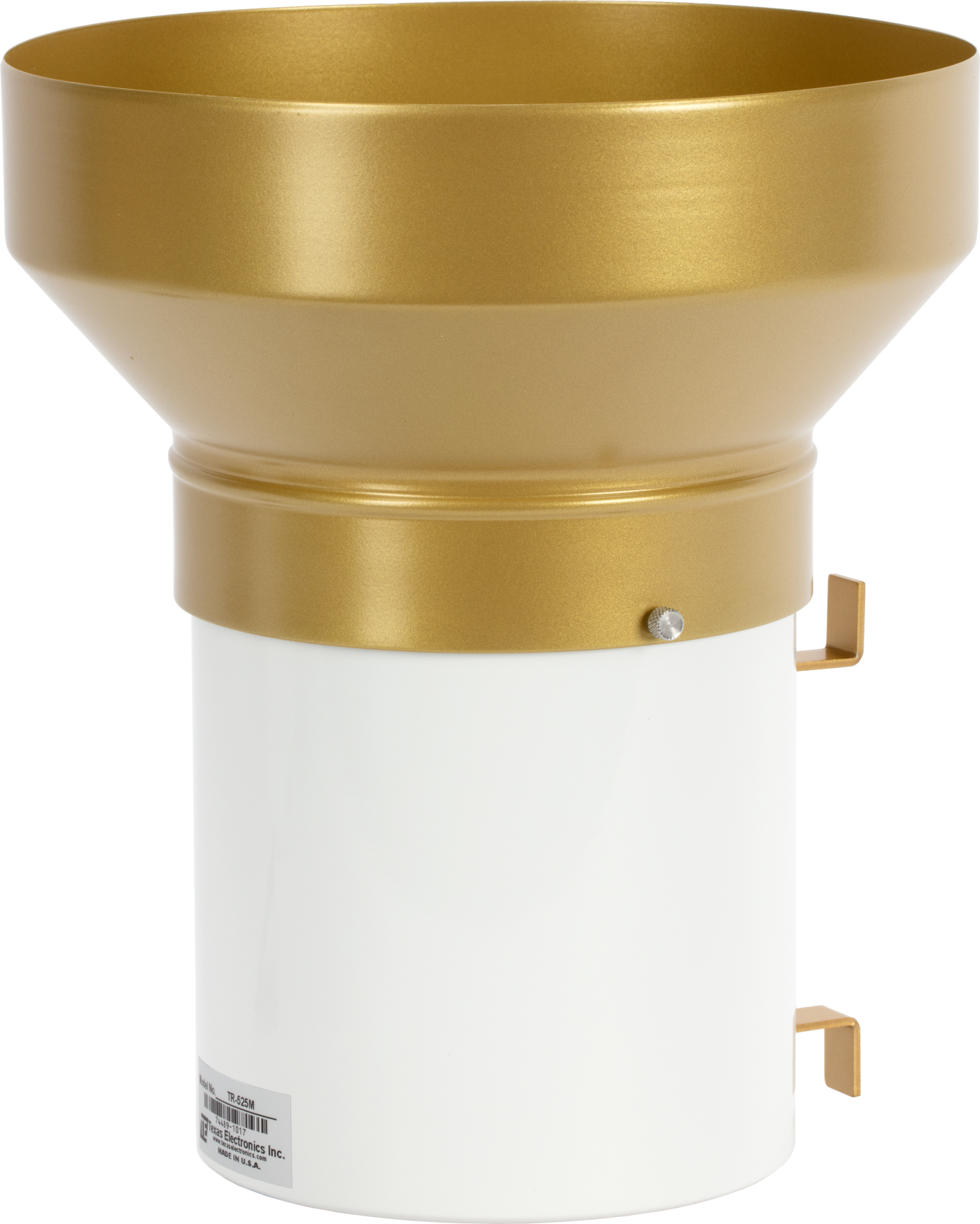

The TE525MM, manufactured by Texas Electronics, is a tipping bucket rain gage that monitors rainfall in metric rather than US units. It measures in 0.1 mm increments and has a 24.5 cm funnel. This tipping bucket is compatible with all Campbell Scientific data loggers, and is widely used in environmental monitoring applications.
Technical Description
The TE525MM funnels precipitation into a bucket mechanism that tips when filled to its calibrated level. A magnet attached to the tipping mechanism actuates a switch as the bucket tips. The momentary switch closure is counted by the pulse-counting circuitry of our data loggers.
Benefits
- Accuracy is ±1 percent at rates up to 1 in./hr
- Compatible with most Campbell Scientific data loggers
- High precision—tips at 0.1-mm increments
- Compatible with the CWS900-series interfaces, allowing it to be used in a wireless sensor network
- Includes a 24.5-cm funnel, which is the largest diameter funnel of the TE525-series raingages
Specifications
- Sensor Type
- Tipping bucket with magnetic reed switch
- Material
- Anodized aluminum
- Operating Temperature Range
- 0° to 50°C
- Resolution
- 1 tip
- Volume per Tip
- 4.73 ml/tip
(0.16 fl. oz/tip)
- Rainfall per Tip
- 0.1 mm
(0.004 in.)
- Measurement Uncertainty
- 1.0%
up to 50 mm/h (2 in./h)
- Cable Type
- 2-conductor shielded
- Orifice Diameter
- 24.5 cm
(9.66 in.)
- Height
- 29.21 cm
(11.5 in.)
- Cable Weight
- 0.1 kg (0.2 lb) per 3.05 m (10 ft) length
- Tipping Bucket Weight
- 1.1 kg
(2.4 lb)
