SP20R-L
SP20R-L
End of lifeConfigurable20 W Solar Panel with Regulator
Pricing
- Model:
- SP20R-L
- Item Number:
- 5280
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The SP20R is 20-W photovoltaic power source capable of recharging batteries. It has an on-board voltage regulator, and a 6.1 m (20 ft) cable with stripped and tinned leads that connect directly to a user-supplied deep-cycle battery.
The SP20R is often used for system configurations that have higher-than-average power requirements, or in higher elevation and latitude locations. It allows unattended operation of systems in remote locations, far from AC electrical sources.
Technical Description

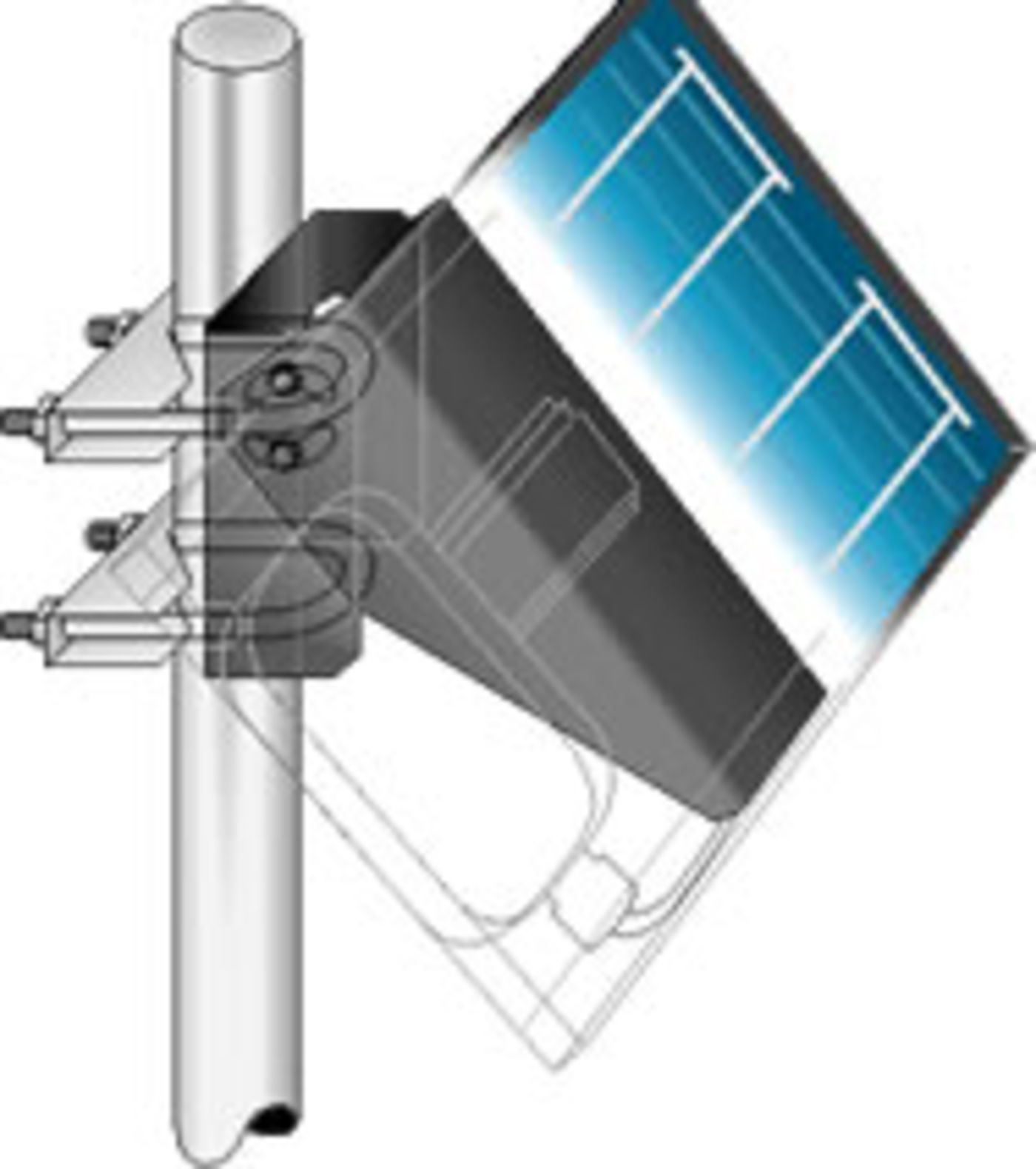

The SP20R includes mounting hardware consisting of the the pn 17492 U-bolt and Matching Nuts. The pn 17492 U-bolt provides a 2.125" (5.398 cm) space between the U-bolt legs. This hardware allows the solar panel to be mounted to a 0.75" to 1.5" IPS pipe (1" to 2" OD).
Please note that the SP20R has a 2-mA continuous current drain (meaning that it consumes a small amount of power from the connected battery at night).
Benefits
- Supplies electrical power in locations where ac power is unreliable, expensive, or not available
- On-board voltage regulator allows direct connection to a user-supplied external battery
Specifications
- -NOTE-
- Solar panel characteristics assume 1 kW m-2 illumination and 25°C solar panel temperature.
Individual panels may vary up to 10%. The output panel voltage increases as the panel temperature decreases.
- Maximum Peak Power
- 20 W
- Current at Peak
- 1.19 A
- Maximum Allowable Wind Gust Speed
- Note: The wind ratings are for solar panels with the indicated mounts and do not account for strength of tower or tripod.
- Maximum Allowable Wind Gust Speed
- 44 m s-1
(99 mph) Standard mount
- Maximum Allowable Wind Gust Speed
- 58 m s-1
(130 mph) Extended mount
- Voltage at Peak
- 16.8 V
- Current Drain
- 2 mA
(continuous)
- Guaranteed Minimum Peak Power
- 18 W
- On-board Regulator Included
- Yes
- Dimensions
- 50.0 x 42.2 x 5.1 cm
(19.7 x 16.6 x 2 in.)
- Weight
- 6.2 kg
(13.6 lb)
