SP10R-L
SP10R-L

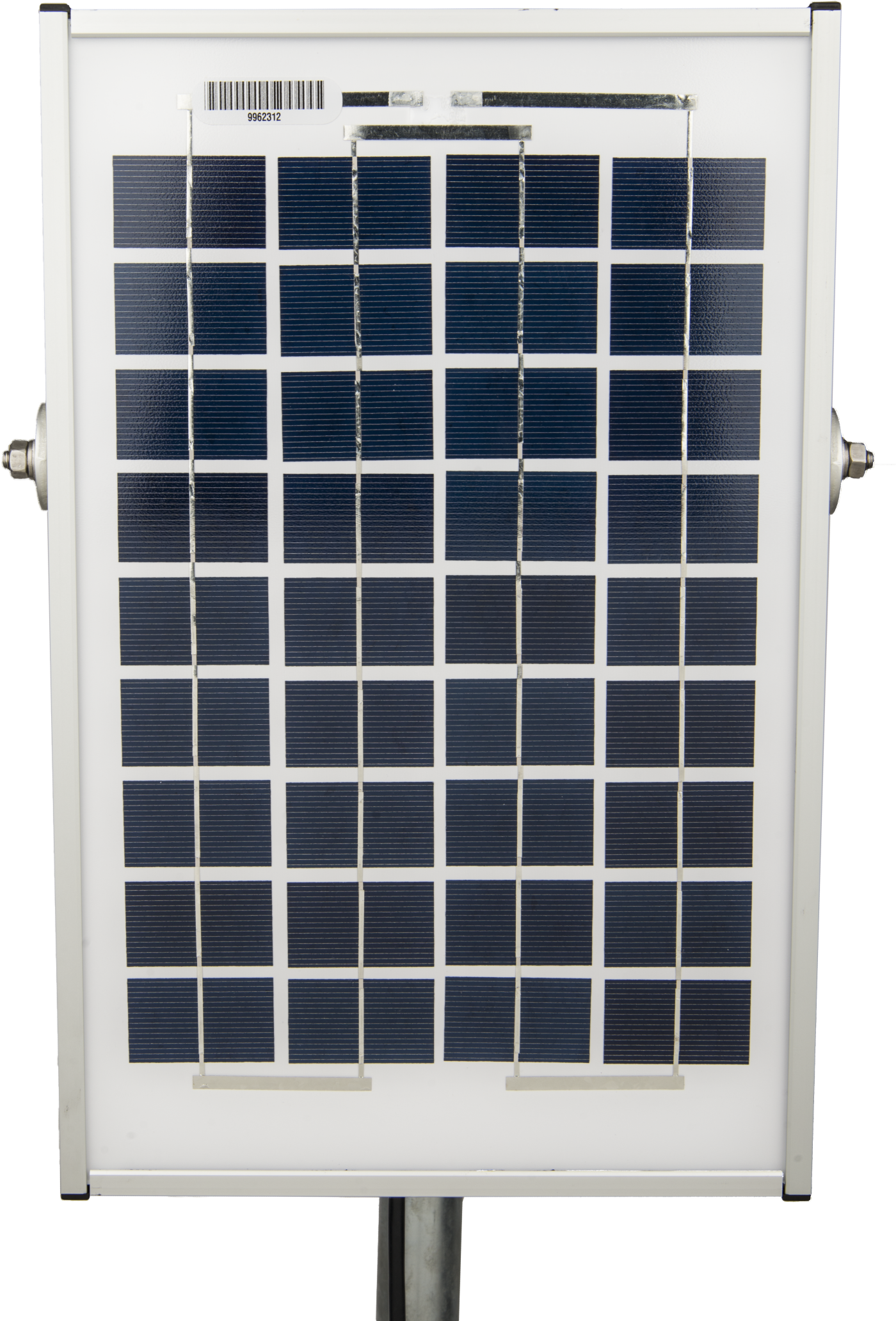

End of lifeConfigurable10 W Solar Panel with Regulator
Pricing
- Model:
- SP10R-L
- Item Number:
- 5279
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The SP10R is a 10-W photovoltaic power source capable of recharging batteries. It has an on-board voltage regulator. The user-defined-length cable has stripped and tinned leads that connect directly to a user-supplied deep-cycle battery.
The SP10R is a sufficient charging source for many of our system configurations in tropical to temperate latitudes. It allows unattended operation of systems in remote locations, far from AC electrical sources.
Technical Description
The SP10R includes mounting hardware consisting of the #17492 U-bolt and Matching Nuts. The #17492 U-bolt provides a 2.125" (5.398 cm) space between the U-bolt legs. This hardware allows the solar panel to be mounted to a 0.75" to 1.5" IPS pipe (1" to 2" OD).
Benefits
- Supplies electrical power in locations where ac power is unreliable, expensive, or not available
- On-board voltage regulator allows direct connection to a user-supplied external battery
Specifications
- -NOTE-
- Solar panel characteristics assume 1 kW m-2 illumination and 25°C solar panel temperature.
Individual panels may vary up to 10%. The output panel voltage increases as the panel temperature decreases.
- Cable Description
- 20 AWG, 1-twisted pair
- Maximum Allowable Wind Gust Speed
- Note: The wind ratings are for solar panels with the indicated mounts and do not account for strength of tower or tripod.
- Maximum Allowable Wind Gust Speed
- 58 m s-1
(130 mph) Standard mount
- Maximum Allowable Wind Gust Speed
- 58 m s-1
(130 mph) Extended mount
- Maximum Peak Power
- 10 W
- Current at Peak
- 0.59 A
- Voltage at Peak
- 16.8 V
- Current Drain
- 2 mA
(continuous)
- On-board Regulator Included
- Yes
- Dimensions
- 41.9 x 26.9 x 2.3 cm
(16.5 x 10.6 x 0.9 in.)
- Weight
- 3.0 kg
(6.6 lb)
